ECUHELP KT200 II Full Version with Offline Workstation & KT200 Plus Ecu Programmer [Add more ECUs R/W/Clone, Online Update]

ECUHELP KT200 II Offline Workstation & KT200 Plus [Add more ECUs, Online Update]

Top reasons to own both KT200 II Offline Workstation and KT200 Plus:
1. Read / Write more ECU & TCU protocols
-ECU Series: Bosch EDC16/ME9 - Series, Delphi DCM6xx - Series, Delphi DCM7xx- Series, Delco Exx - Series, Bosch MG1US / UA008 - Series, Bosch MGD1Cxx / MG1Uxx - Series, Siemens / Continental Mxx - Series, Siemens / Continental Sxx - Series,  Delphi CRD2.XX-Series,
Delphi CRD3.XX-Series, Delphi MT-Series, Siemens / Continental SIMOS-Series, Bosch MEDC17 - Series.
-TCU Series: HITACHI SH72xxx - Series, Infineon - Series, Delco 6xx-Series
***And more ECU/TCU protocols will be upgraded online.

3. Support ECU service (File modification, DTC off, IMMO off, TPROT etc)

4. KT200 Plus runs as the same software as KTflash;
Unlike KTflash, KT200 Plus can work independently, it combines both the KTflash dongle and necessary hardware into a single interface.

5. KT200 Plus supports online update.

KT200 II vs KT200 Plus:
KT200 II
Standalone Operation: Yes
Available Versions: Auto version, full version, and offline workstation
Read / Write ECU & TCU: yes
Clone ECU: Tricore Clone ECU MEDC17
ECU Services: No
Operating Modes: Works in both online and offline mode
Checksum Calculation: Yes

KT200 Plus:
Standalone Operation: Yes
Read / Write ECU & TCU: yes
Add more ECU clone: yes (refer to KT200 Plus support list)

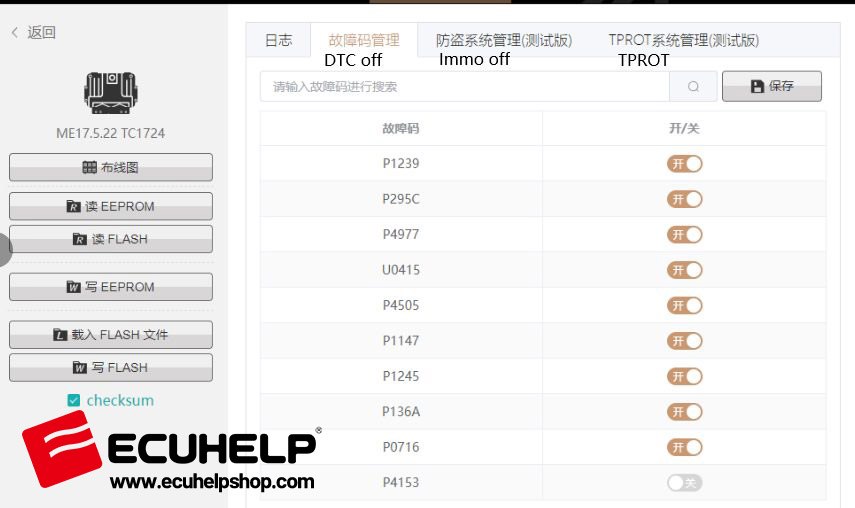

ECU Service: File modification, DTC off, IMMO off, TPROT etc
Checksum Calculation: Yes
Software: KT200 Plus work independently, the software = KTflash dongle + the full license
Online update, 1 year for free.

Part 1. What is KT200 Plus?
Part 2. ECUHELP KT200II Full Version with Offline Workstation

Part 1. What is KT200 Plus?

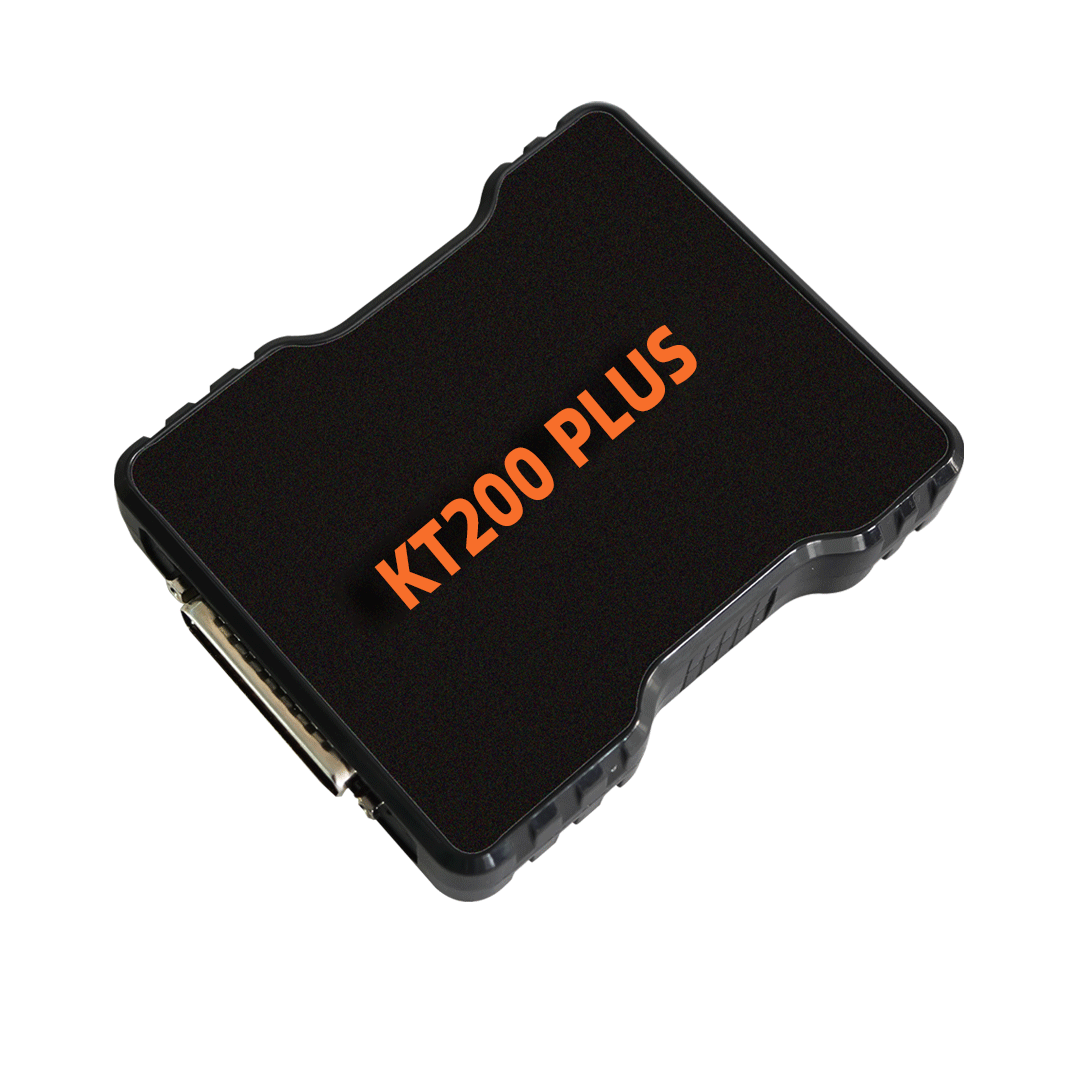

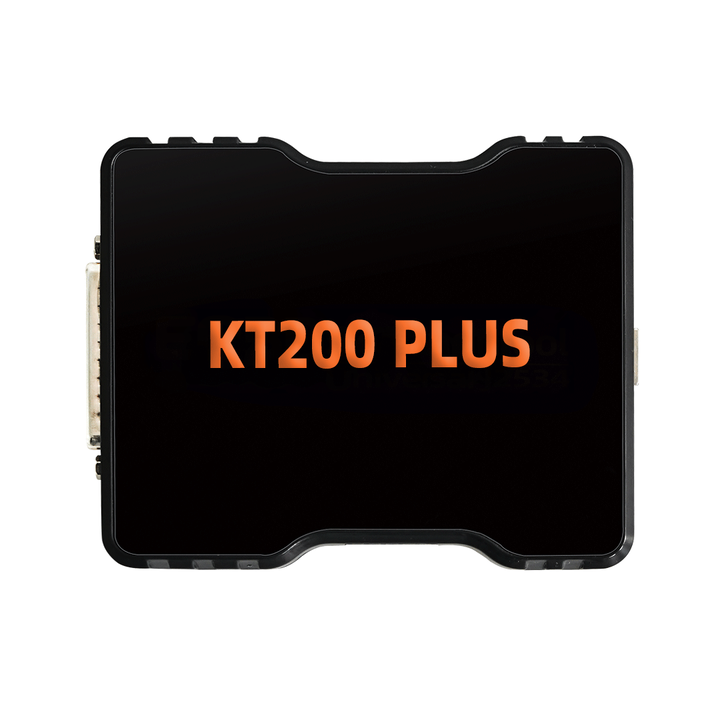

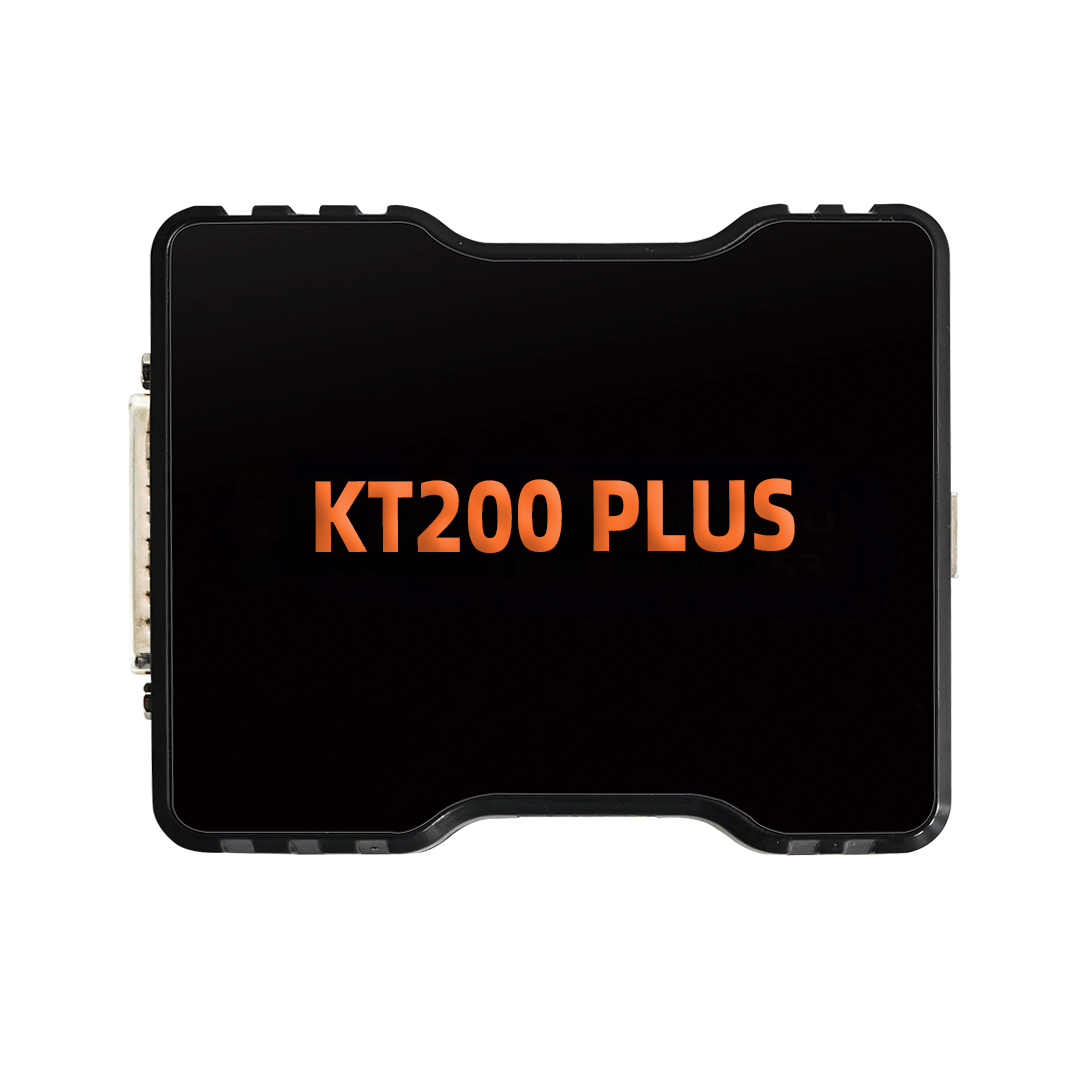

What is KT200 Plus?
KT200 plus is a plug-in module Ecu programmer. lts appearance mainly to make up for the shortcomings of previous equipment and to provide continuous function updates for future equipment.KT200 Plus working independently,online update.

KT200 Plus ECU Support List:
KT200 Plus support DCM6.2AP series, DCM7.1AP Serial, EXX series, MG1US、UA008 Series, MXX Series，SXX Series, HITACHI 71XX, INFINEON Series, MEDC17 Series, Clone MEDC17 Series, Clone SIMOS Series, CRD2XX Series, CRD3XX Series, 6XX Series，MTXX Series, edc xx and me9 xx Series and and more protocols will be updated soon.
===>>To view KT200 Plus ECU support List (comprehensive)

KT200 Plus Support Online Update
Original from ECUHELP with free online updates for 1 year, subscription at 119euro/year.

KT200 Plus Update ((2024.9.13)
Added Delphi DCM6.2V bench reading and writing (world's first), along with fault code management and immobilizer management functions.
Expanded coverage for Delphi MT62.1, MT92, MT95, and other models.
Increased coverage for MEDC17 models.
Added support for cloning Volkswagen Siemens SDI6, SDI7, SDI8, and IMMO OFF for the SIMOS series.
Added functions for diagnostic fault code reading and clearing.
Added support for the Italian language.

KT200 Plus Update (2024.8.17)
EDC17 XX series /MEXX series
Read /Write/Clone/DTC off,Obd and Bench mode

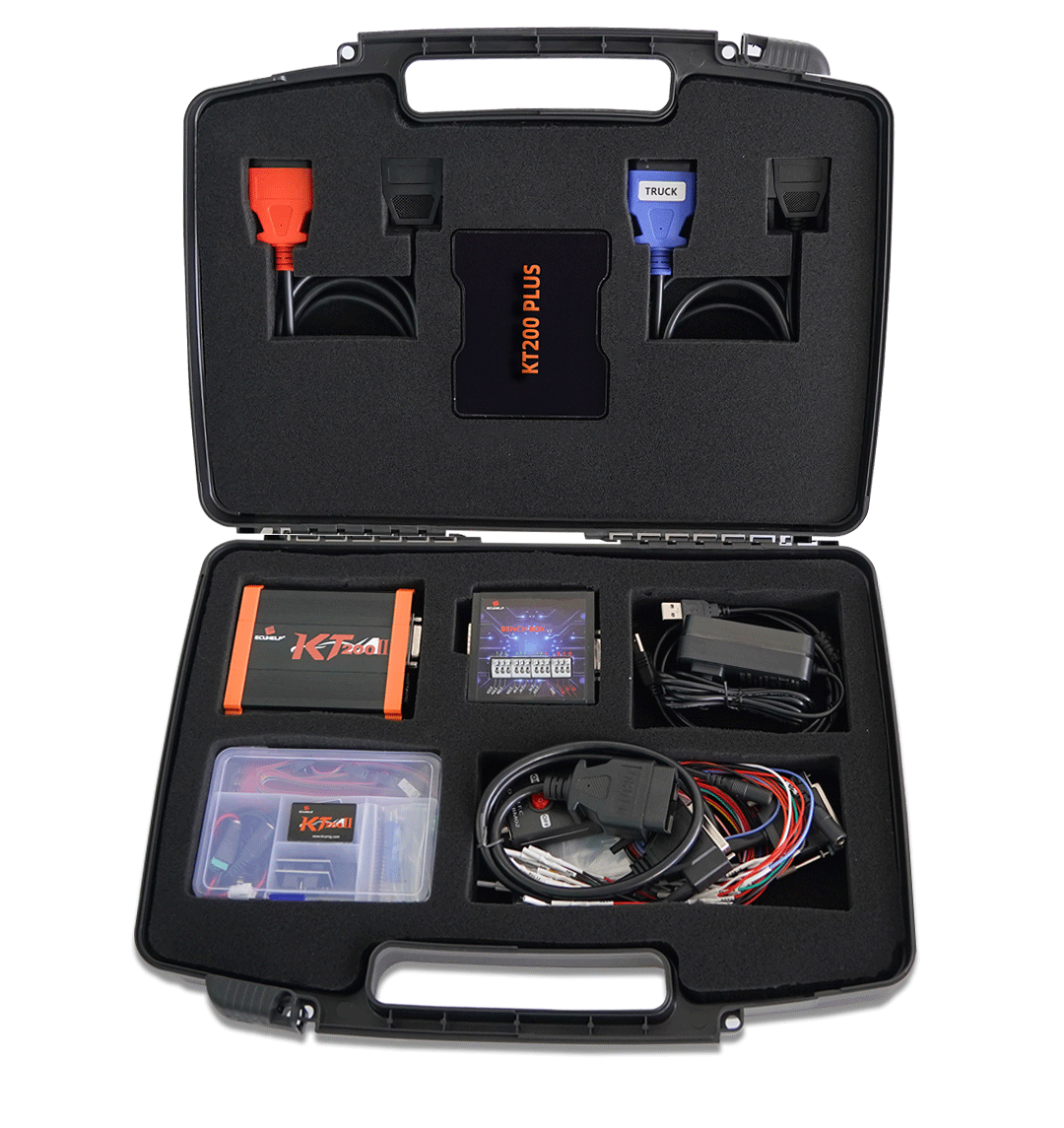

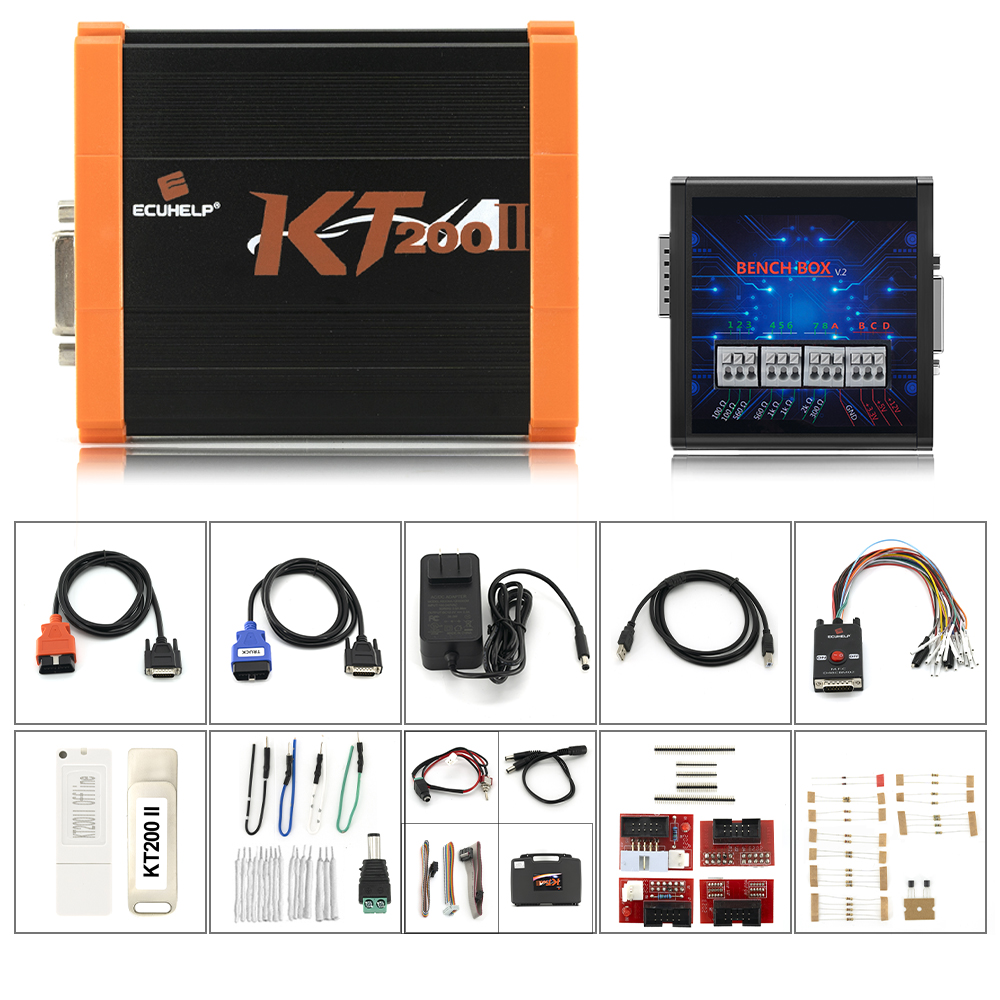

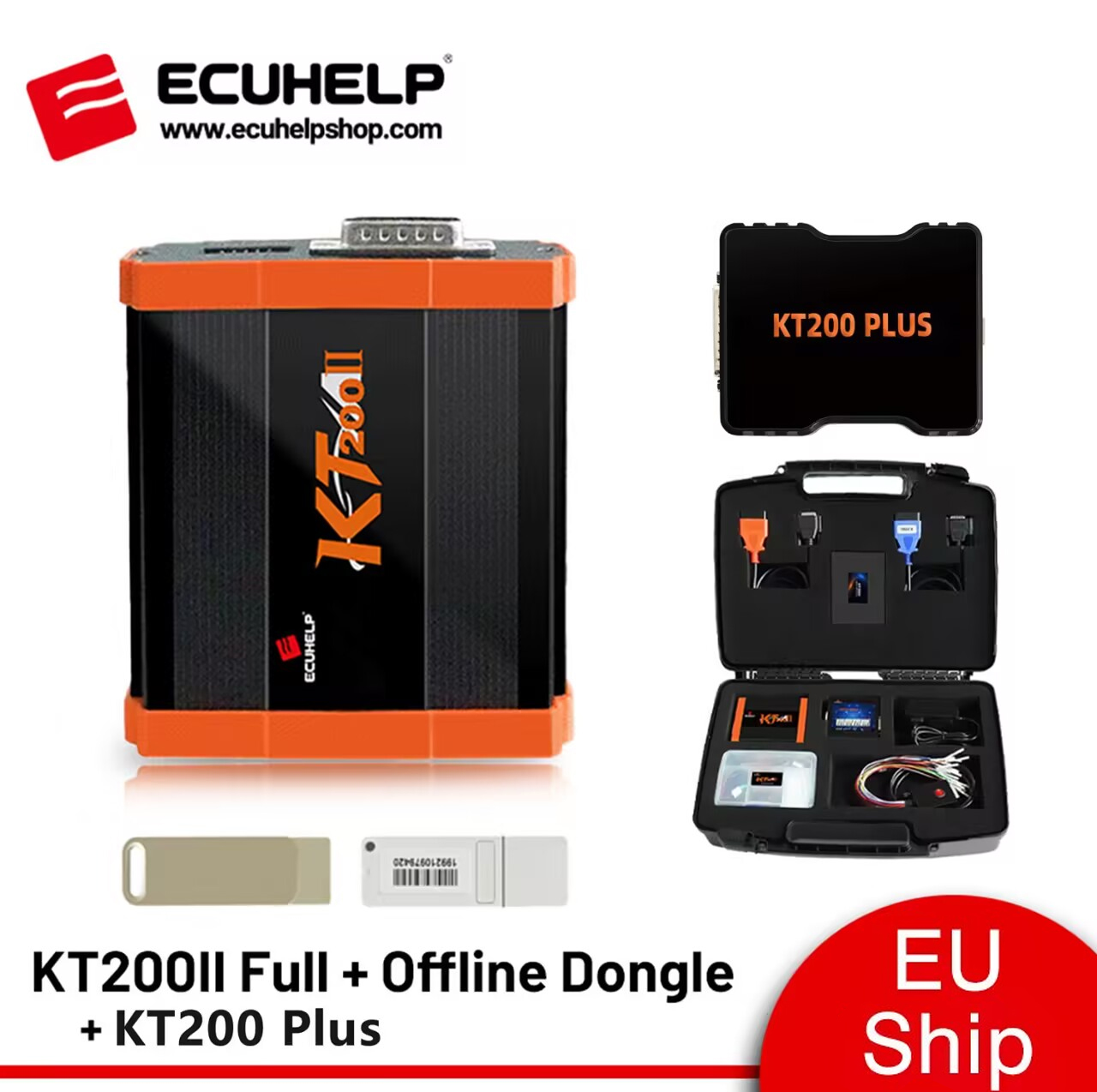

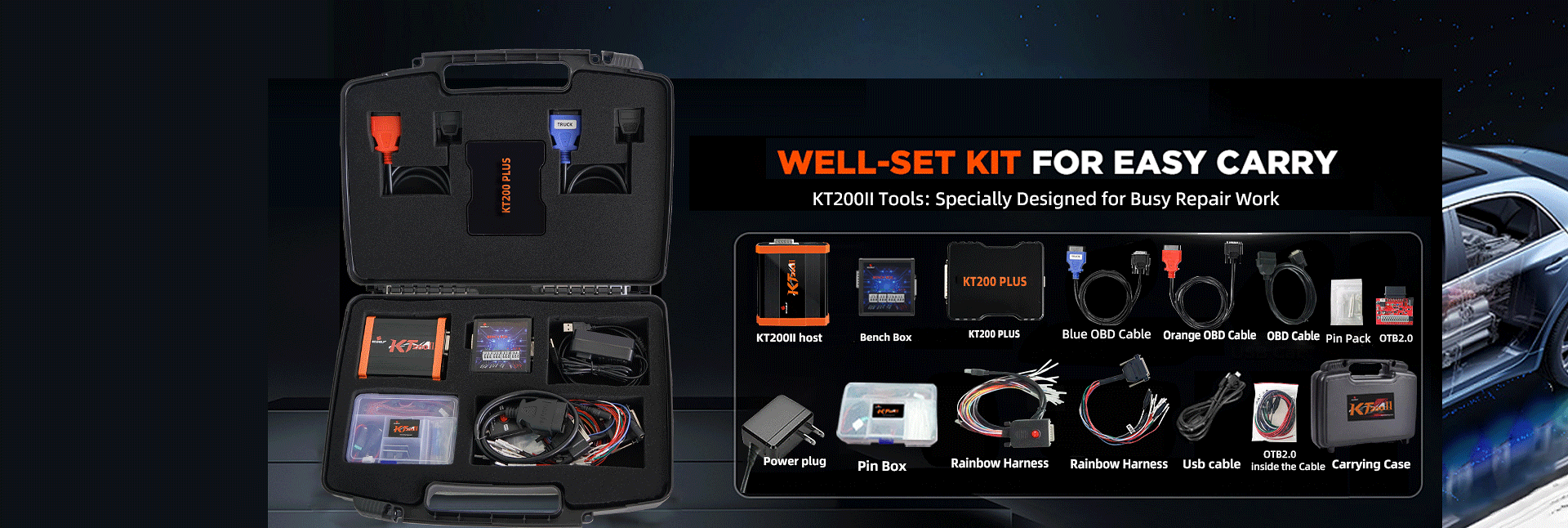

KT200II Offline Workstation + KT200 Plus Package List:
KT200II Host
Bench Box
KT200 Plus
Blue OBD cable
Orage OBD cable
OBD cable (Black)
Pin Pack
OTB 2.0
Power plug
Pin Box
Rainbow Harness *2
USB cable
OTB2.0 inside the cable
Carry Case

Part 2. ECUHELP KT200II Full Version with Offline Workstation
ECUHELP KT200II Full Version with Offline Workstation Enabled Software:
Car OBD, Truck OBD, Tractor OBD, Boat OBD, Motorbike OBD.Full System,BDM/JTAG, TOOL BOOT, Bench Mode, TCU Gear
***Choose KT200II Auto Version to have no the software: Tractor OBD, Boat OBD, Motorbike OBD

ECUHELP KT200II Key Features and Enhancements:
KT200II upgrades new protocols and commits to regularly updating more.
Resolves automatic checksum issues in the KT200, enhancing read/write efficiency.
There was a significant increase in virtual files available on the server.
Enhance ECU Protection includes immediate alerts for operational errors, ensuring safer usage.
Faster and more efficient server connectivity.
Reliable reading and writing via OBD.
Now supports DELPHI DCM7.24 ECU
Compatible with htprog Clone Adapter too.
Introduces the Tricore Clone feature.

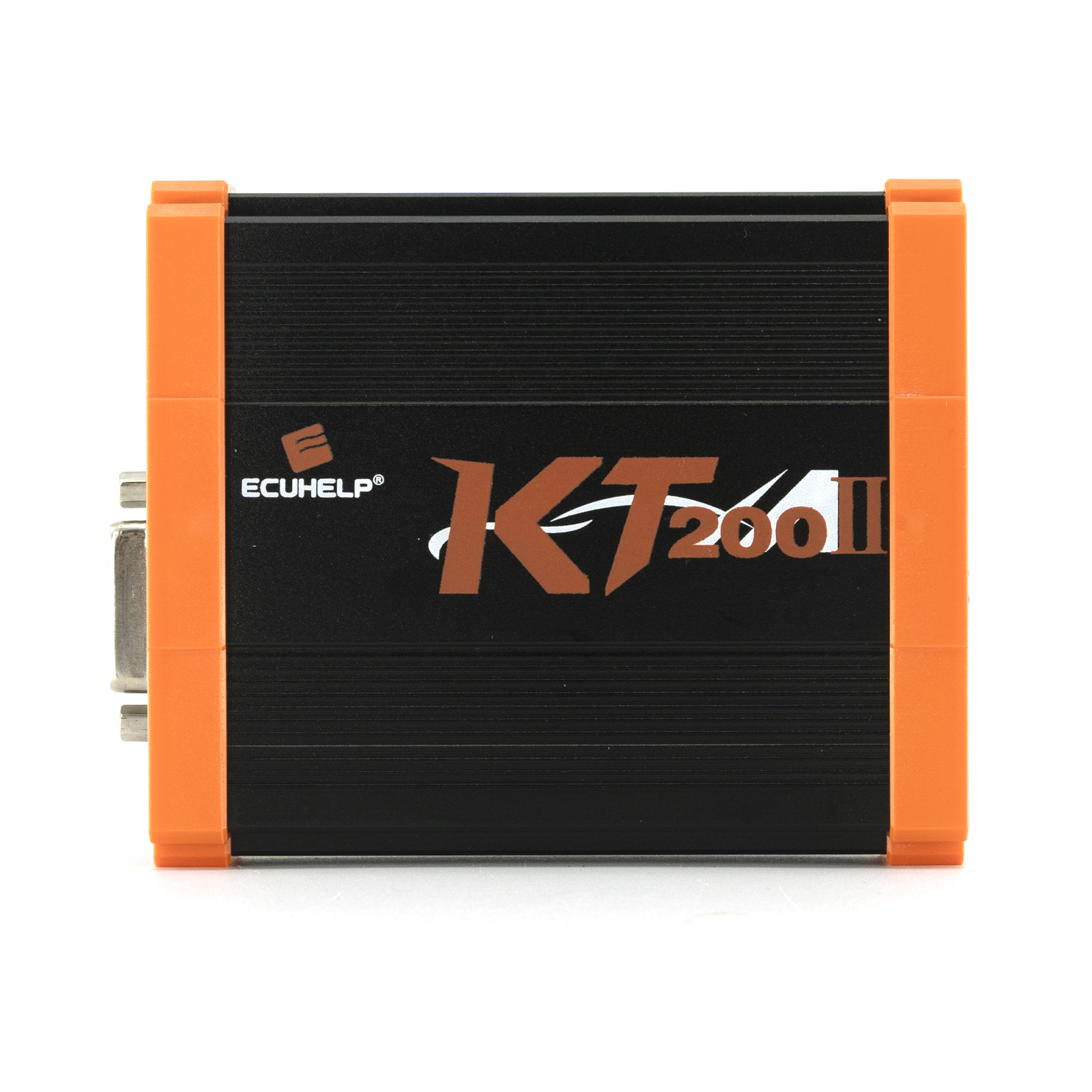

What is KT200II?
Introduction to KT200II: KT200II is an ECU programmer designed for reading and programming engine control units (ECUs). Allows communication in multiple modes: Bench (or Service mode), OBD, Boot, BDM, JTAG, Full system via pinout. This tool offers a comprehensive solution for mechanics, with additional TCU package options for automatic transmission.

Functionality of KT200II:
Enables serial communication with Engine and Automatic Transmission control units via the OBD diagnostic socket.

Capabilities in ECU Management:
Read and write ECU data,  read it in Bin encrypted format.
Modify ECU data arbitrarily for various purposes, including ECU cloning and ECU service.
The master version is personalized, allowing individual use without data unlocking for the slave.
Master Version of KT200II: A personal version of the device that can be used freely after purchase.

ECU Service Explained:
Chip tuning: to improve engine performance by modifying the data read out by the equipment The data is divided into: Stage 1 . Stage 2 and Stage 3
ECU maintenance: the data is to repair software errors in the ECU and some identity data of the ECU by modifying the data read by the device.
After reading the ecu data with kt200II, you can use third-party software to edit the ecu data

You can get the functions of ECU model query, wiring diagram search, virtual data download, DEMO download and free database from the ECUHELP 3.0.6 installer.

Frequently Asked Questions:
What's New in KT200II?
KT200 II Update November 2023
KT200 II Update January 2024

Can the Ecuhelp KT200 Users Exchange KT200II?
Yes. To upgrade:
1. While awaiting the shipment of your KT200II, you can continue using KT200. Upon receiving your KT200II, please provide us with the serial numbers of both the KT200 and KT200II. Following this, we will lock your KT200 and activate your new KT200II.
2.  If you have KT200 full version + offline dongle, you will recieve KT200II main unit and one offline dongle.

Are the Accessories and Bench Box of KT200 Compatible with KT200II?
Yes, they are fully compatible.

Is the KT200II PCB Compatible with the Old Case?
No, they are not compatible.

In the following paragraphs, will list what new ECU Protocols are added in November 2023.

NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs
We have added to the list of DELCO bench protocols already present, also the complete management of the control units mounted on OPEL / CHEVROLET / GM
cars: DELCO E38 DELCO E67 DELCO E84 DELCO E92
The possible operations are: Micro + EEPROM reading Micro + EEPROM writing Recovery Checksums



NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the following control units with OTP zone adaptation and password:
√ FCA EDC17CP27
√ HYUNDAI / KIA MED17.9.8
√ IVECO EDC17 C69
√ JAGUAR MEDC17.9
√ JAGUAR EDC17CP11
√ LAND ROVER MEDC17.9
√ LAND ROVER EDC17CP11
√ SUZUKI MED17.9.63
√ TOYOTA MED17.9.52


NEW FULL SYSTEM DRIVERS FOR BOSCH TCU ECUs:
6L45 6L50 6L80 6L90
Mounted on cars:
Cadillac, Chevrolet, Holden, GM, GMC, Hummer, Pontiac.
Micro + EEPROM reading
Micro + EEPROM writing
Recovery




NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU
We have added complete management of the engine control unit mounted on Fiat / Abarth:
MARELLI 8GMC
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums


NEW BOOT MODE FOR SIEMENS SIM2K-305 ECUs
Password + boot mode tool for SIEMENS SIM2K-305 control units mounted on Hyundai and Kia cars.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums


NEW BENCH MODE FOR MG1CA007 ECU
Complete management of the BOSCH MG1CA007 control unit mounted on Indian Motorcyle.
The possible operations are:
Micro SPC58 + EEPROM reading
Writing Micro SPC58 + EEPROM
Recovery
Checksums


NEW OBD DRIVER FOR DELPHI DCM7.24 ECU!
New OBD driver for DELPHI DCM7.24 mounted on
new JCB vehicles.
You can read and write to the ECU via the 9-pin diagnostic socket.
Virtual reading
Writing
Recovery
Checksums

NEW OBD DRIVER FOR PHOENIX L40 ECU!
New OBD driver for PHOENIX L40 ECU mounted on
new JOHN DEERE 8R Series vehicles.
Reading and writing is carried out via the 9-pin diagnostic socket
or via the control unit pinout.
Automatic saving and writing of injectors.
Reading
Writing
Recovery
Checksums
Injector coding


NEW DRIVER BENCH MODE FOR TRW EMS2.4 ECUs
We have added a new BENCH MODE driver for the complete management of the TRW EMS2.4 control unit
mounted on VOLVO TRUCK and RENAULT TRUCK.
The possible operations are:
Micro + EEPROM reading
Micro + EEPROM writing
Recovery
Checksums
It is possible to connect to the control unit using the Multifunction Cable supplied, or with the DFB-D48CBB04 – TRW EMS2.2/3/4 cable.


NEW OBD DRIVER FOR BOSCH EDC17 C11 NISSAN – OPEL – RENAULT
Added new OBD driver for reading
and writing the BOSCH EDC17C11 ECU mounted on NISSAN, OPEL and RENAULT vans.
The possible operations are:
Reading
Writing
Recovery
Checksums
Communication alternatives in BENCH MODE via pinout and BOOT MODE remain possible.

NEW OBD DRIVER + BENCH MODE FOR BOSCH MD1CS069 JOHN DEERE
New OBD driver added for reading and writing the BOSCH MD1CS069 ECU
mounted on John Deere tractors
The possible operations are:
Real Reading + Virtual Reading
Writing
Recovery
Checksums
Also added Bench Mode for complete management via Pinout.






---

We are dedicated to providing excellent support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.




When choosing among the ECUHELP KT200 II, KT200 Plus, and KTflash, it's important to understand the features and differences of them. Let's break down what each offers:

KT200 II

• Standalone Operation: Yes
• Available Versions: Auto version, full version, and full version with offline workstation
• Operating Modes: Online and offline options available
• Checksum Calculation: Automatically Calculation
• ECU Services: Read and Write ecu data,need to use third part software to do DTC off, egr off,etc.

KT200 Plus

• Standalone Operation: Yes
• Included Features: File modification, DTC off, checksum calculator, all integrated within the software.
• Software: Uses the same software as KTflash

KTflash vs. KT200 Plus

• Software: Both KTflash and KT200 Plus run the same software.Both of them Update online.
• Hardware Requirement:

KTflash: Requires Scanmatik hardware to operate.
KT200 Plus: Can work independently.it combines both the KTflash dongle and necessary hardware into a single interface.

• License Information:

KTflash:
1.Pay for the license as needed.
2.Annual License Subscription is also available.

KT200 Plus: Only available with an annual fee version.

Therefore, KT200 II + KT200 Plus = more ECU support List & ECU service.
