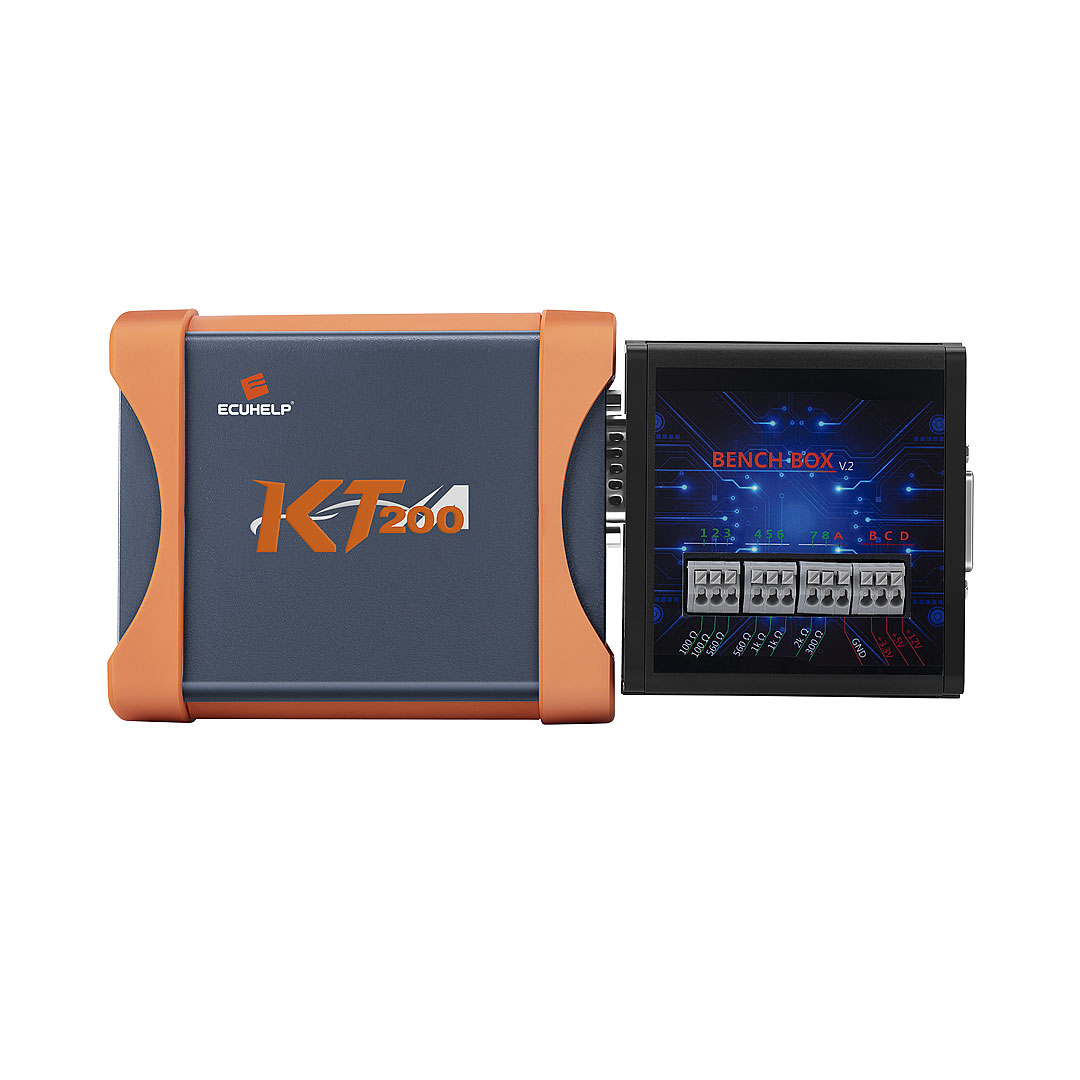

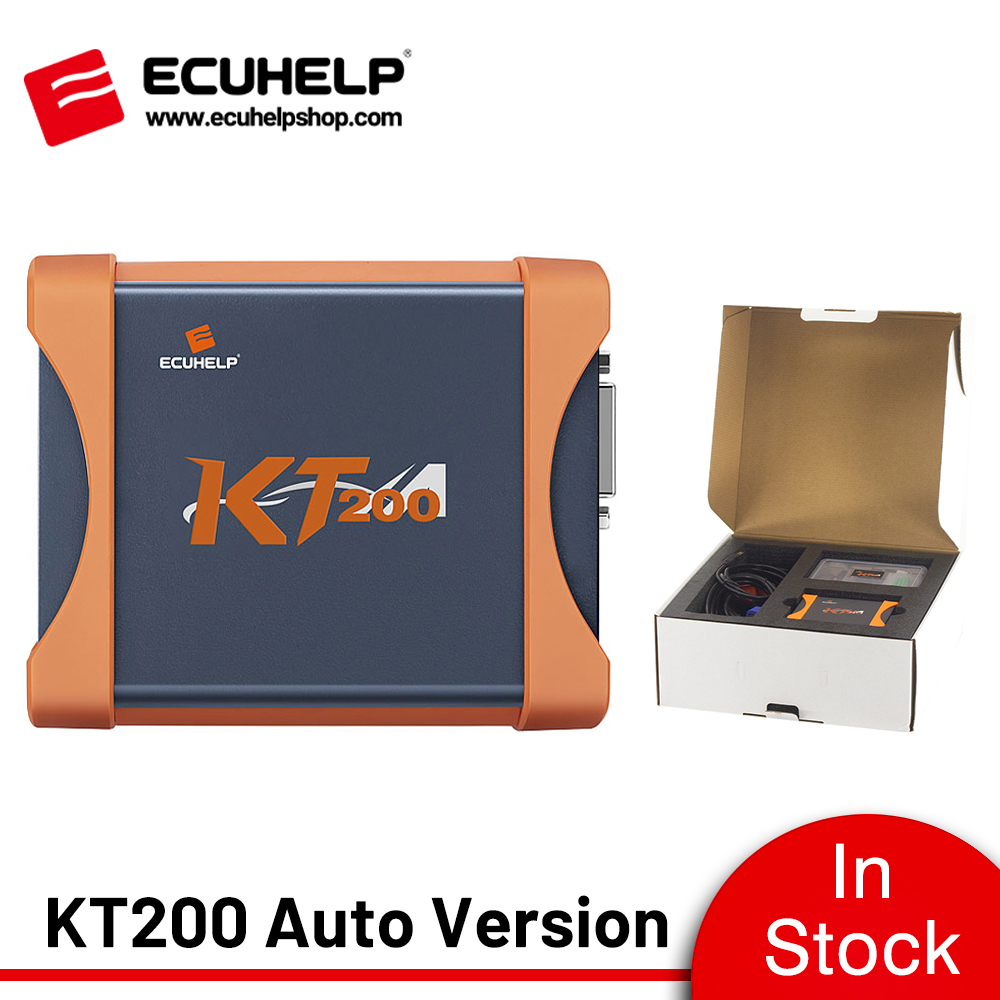

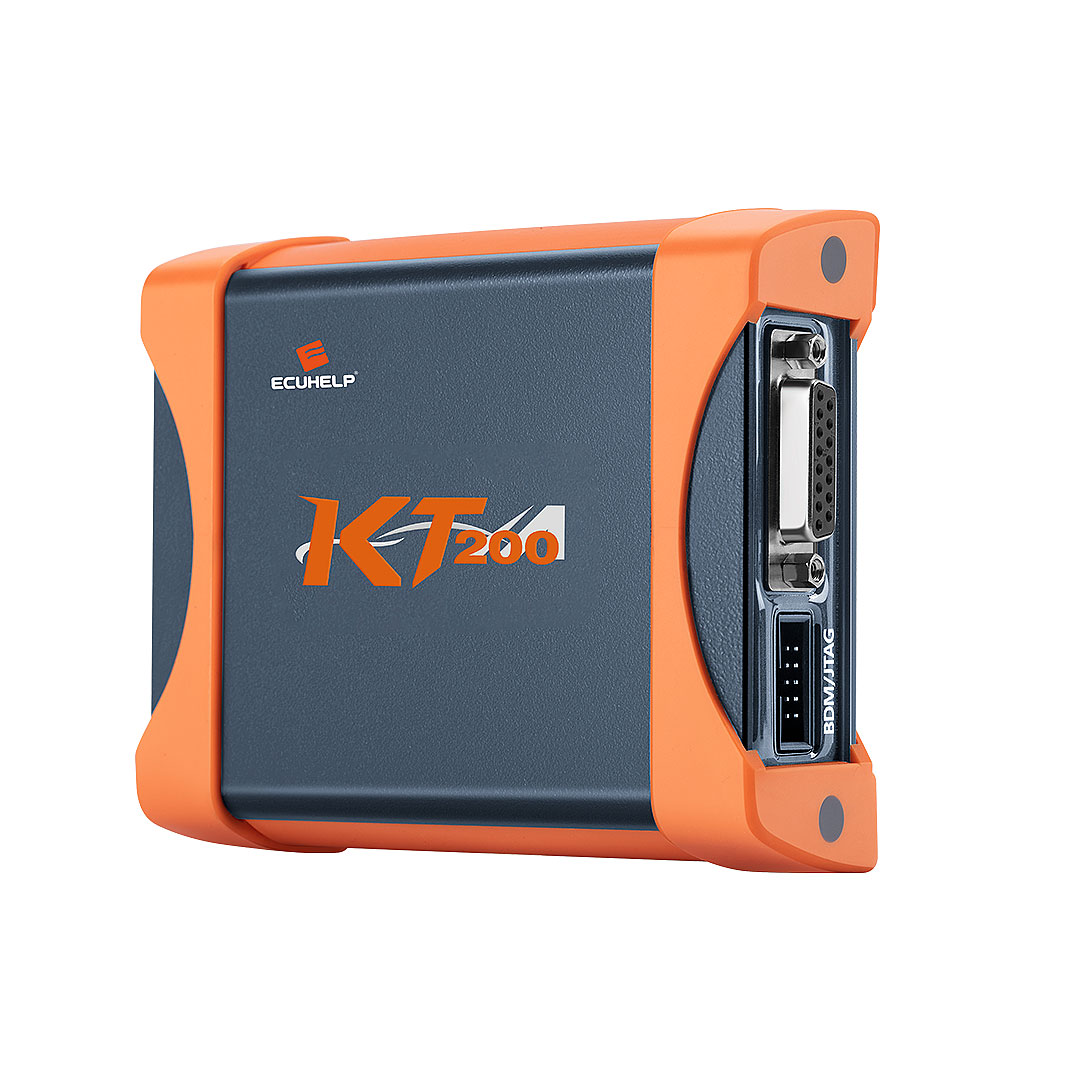

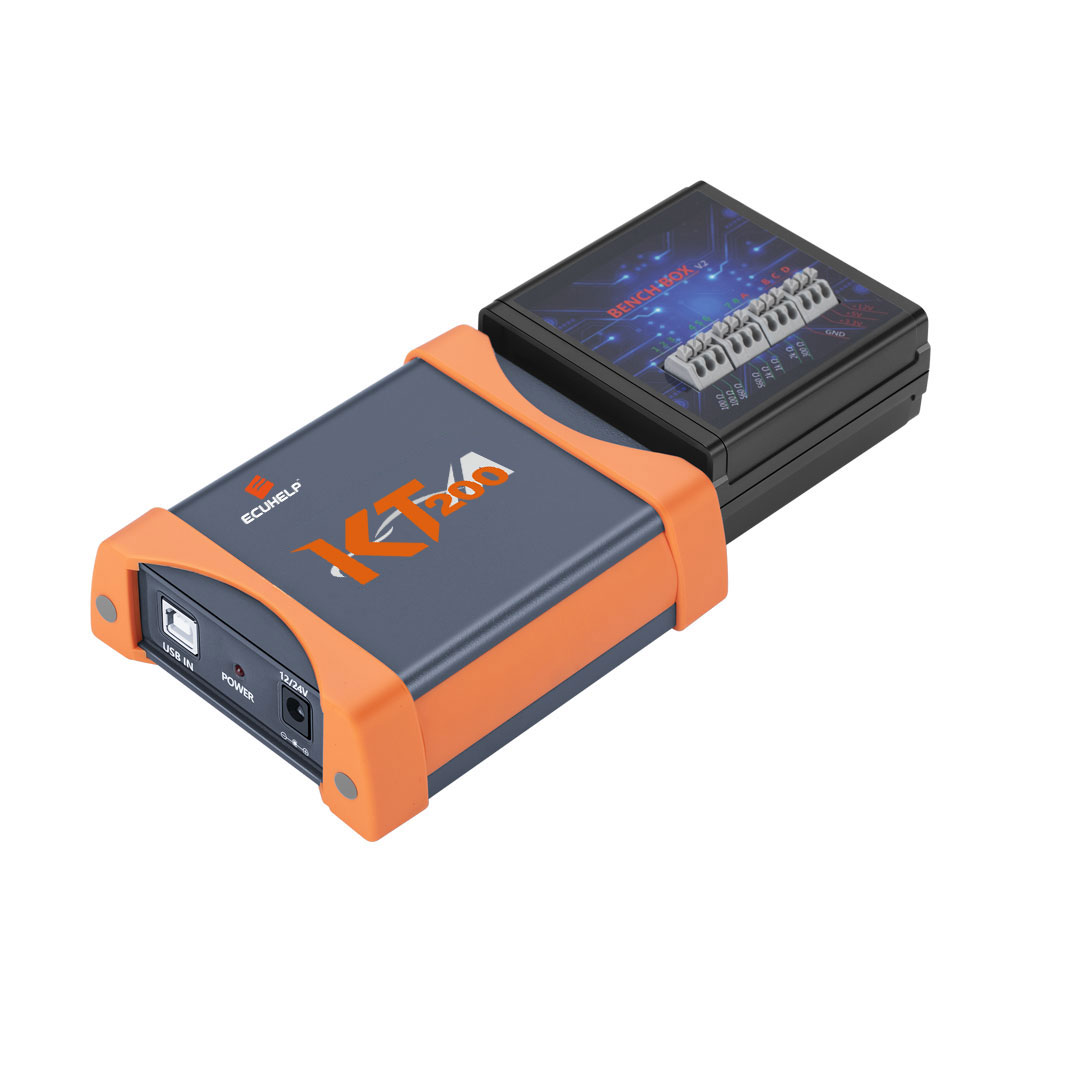

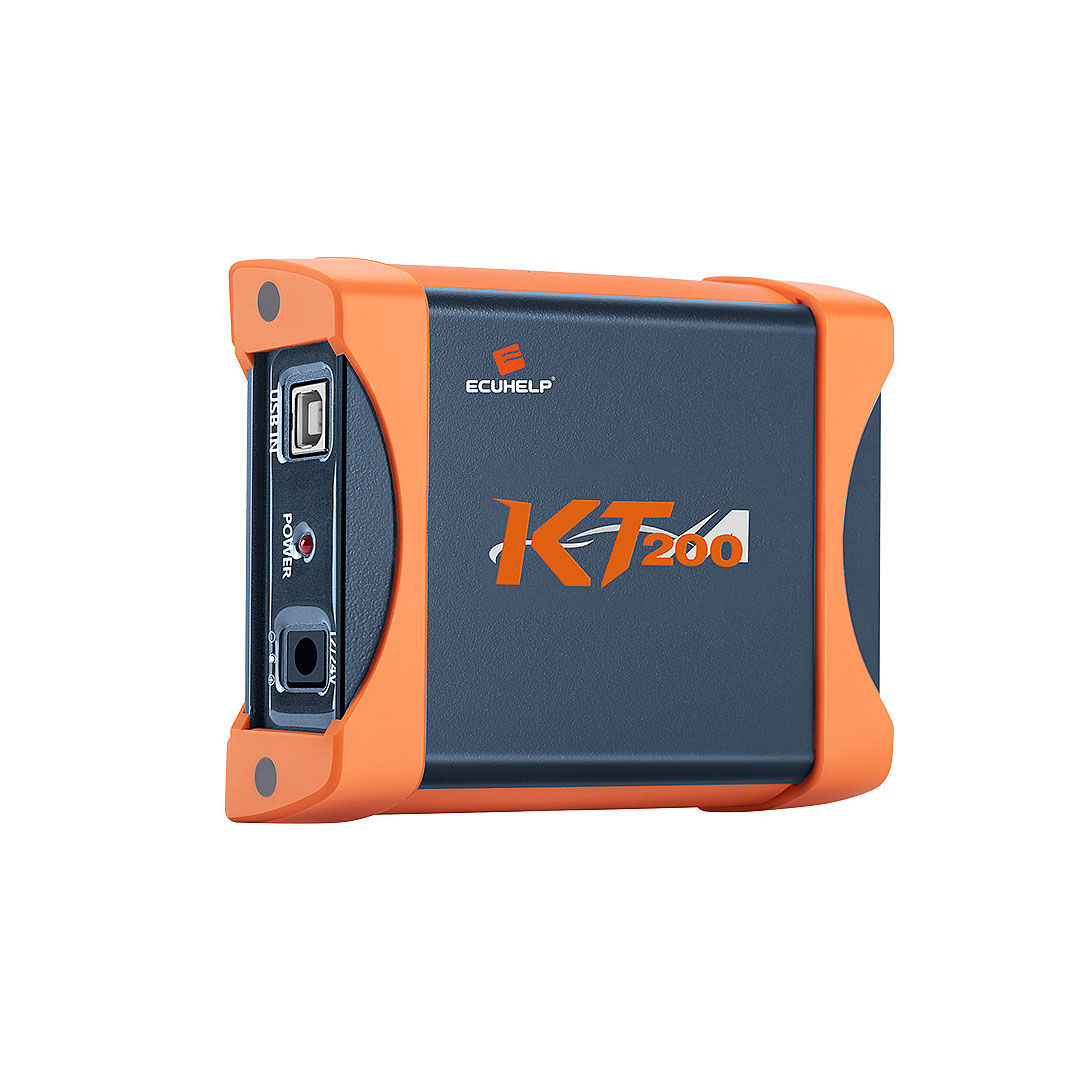

[Carton Box] ECUHELP KT200 Auto Version Car truck ECU Chip Tuning via OBD BOOT BDM JTAG

What is ECUHELP KT200 Auto Version?
ECUHELP KT200 is a comprehensive and user-friendly ECU tool designed for effortless reading and programming of engine control units (ECUs). Whether you prefer performing on Bench, OBD, Boot mode, Full system, BDM or Jtag mode, KT200 has got you covered. With its unique features, KT200 provides an all-in-one solution for mechanics enthusiasts.

With KT200, you can establish seamless serial communication with both the Engine and Automatic Transmission Control Units through the OBD diagnostic socket.

KT200's professional software is tailored to meet the specific requirements of various vehicles. Whether you're dealing with cars, trucks, you can rely on KT200 to deliver exceptional performance in reading and programming engine control units.

For those working with automatic transmissions, KT200 offers an additional TCU package:
Full read and write TCU (Micro+EEPROM),TCU Clone and TCU Coding, it covers over 500 TCU ( i.e Volvo MPS6, VAG DQ400e/SQ100, Jeep 9H28 TCUs).

Master: Read and write ECU data, read it in BIN unencrypted format, you can modify the data arbitrarily, you can clone ECU and use it as ECU service, the master is a personal version, you can only use it yourself, cannot unlock data for the slave.

ECUHELP KT200 Auto Version ECU Programmer Highlights:

1. Hardware: same as the kt200 full version

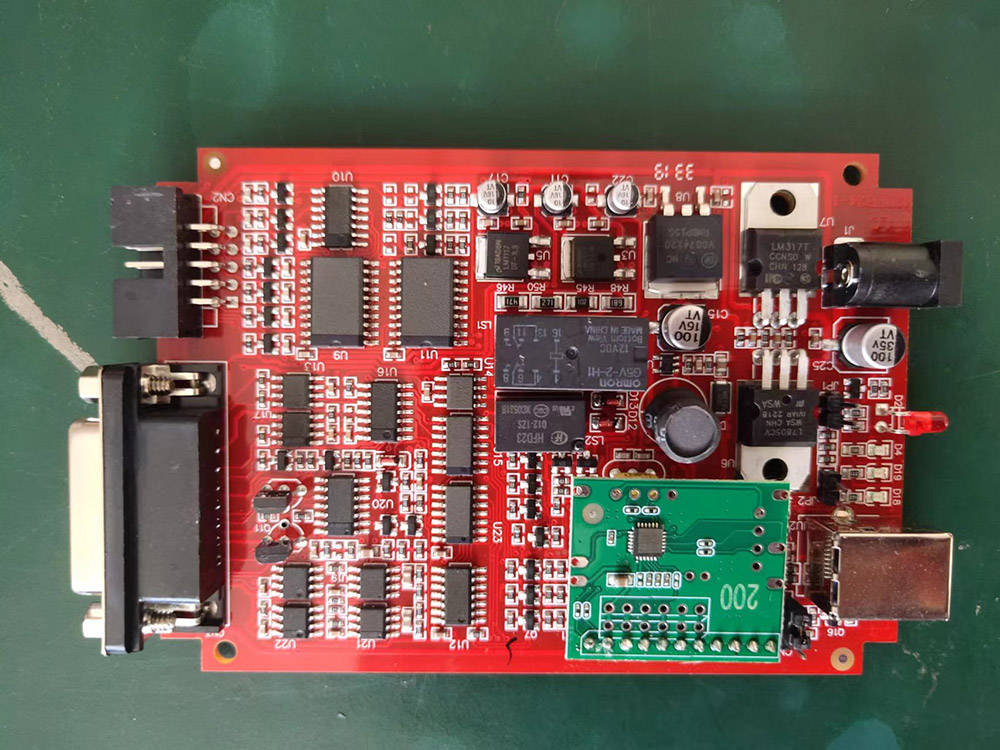

Built-in with green chip board which is encrypted and safe performance


2. Free download Onlne 2023.02.01 Software
Software no need to register and activate.

Compatible with any pc(no limit volume of PC)
Operating system: Windows 7, Windows 8/8.1, Windows 10, Windows 11

Minimum Recommended Requirements:  CPU > 2.5 GHz (Intel i5, i7), RAM > 8GB

ecuhelp kt200 Auto Version software using tips:
1. Make sure good internet
2. Go to Service to change a server (any of China, Germany and Hongkong)
3. Set time and timezone auto
4. Turn off windows defence
5. Set timezone to the same as server
6. Use V-P-N and set V-P-N to where server is at
7. Restart PC
8. Make sure tool is plugged in
9. Good battery voltage.

3. Coverage:
Cars and Trucks ECU / TCU reading and writing on Bench/ via OBD / in Boot / Jtag systems / Full system
Basic version KT200 with 7 licenses, Master version
-> ECUHELP KT200 ECU Support List
-> ECUHELP KT200 TCU Support List

Full Read And Write Via Pin Out in Bench Mode: BOSCH EDC7 BOSCH EDC16 BOSCH ME9 / MED9 BOSCH MD1 BOSCH MG1 -FREESCALESPC5777 -AURIXTC29x -STSPC58 BOSCH EDC17 BOSCH MED17 / ME17 SIEMEN SPCR2.1 (Unlocking also possible via pinout)	Full System Via Pin Out (Micro / Flash + EEPROM)of ECUs: BOSCH CONTINENTAL DELCO DENSO MARELLI SIEMENS TEMIC TEMIC	BDM EJTAG Modes For: BDM MPC55x BDM MPC56x BDM MC32 / ZC32 BDM HC12 / S12x JTAG NEXUS MPC / SPC56xx JTAG NEXUS MPC55xx
JTAG RENESAS: SH7055 SH7058 SH7059 SH7251 SH72543 SH72544 JTAG NEC76F00xx 76F0038AGD 76F0038GD 76F0039AGD 76F0039GD 76F0040GD 76F0070 76F0070 76F0085	BOOT MODEC16729Fxxx: BOOT MODE ST K-LINE / RX-TX / CAN ST10F168 ST10F269 ST10F273 ST10F275 ST10F276 ST10F276 ST10F280 ST10F296	BOOT Mode Tricore for micro: TC1724 TC1728 TC1738 TC1738 TC1762 TC1766 TC1767 TC1782 TC1791 TC1792 TC1793 TC1793 TC1796 TC1797
BOOT Mode Renesas: SH7052 SH7054 SH7055 SH7055 SH7058 SH7059 SH7251 SH72543 SH72544	BOOT Mode Mitsubishi: MH7202 MH7203 MH8102F MH8105F MH8106F MH8202 MH8206F MH8301F MH8301F MH8304F MH8405F	BOOT BAM System MOTOROLA: SPC5674 SPC5777 -BOOT MODE Fujitsu -BOOT MODE Hitachi

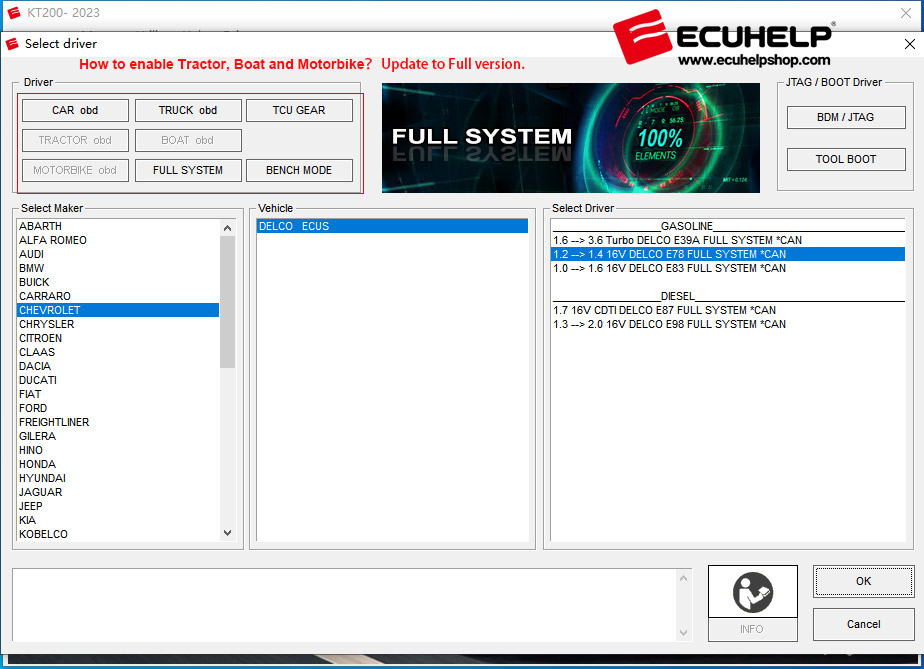

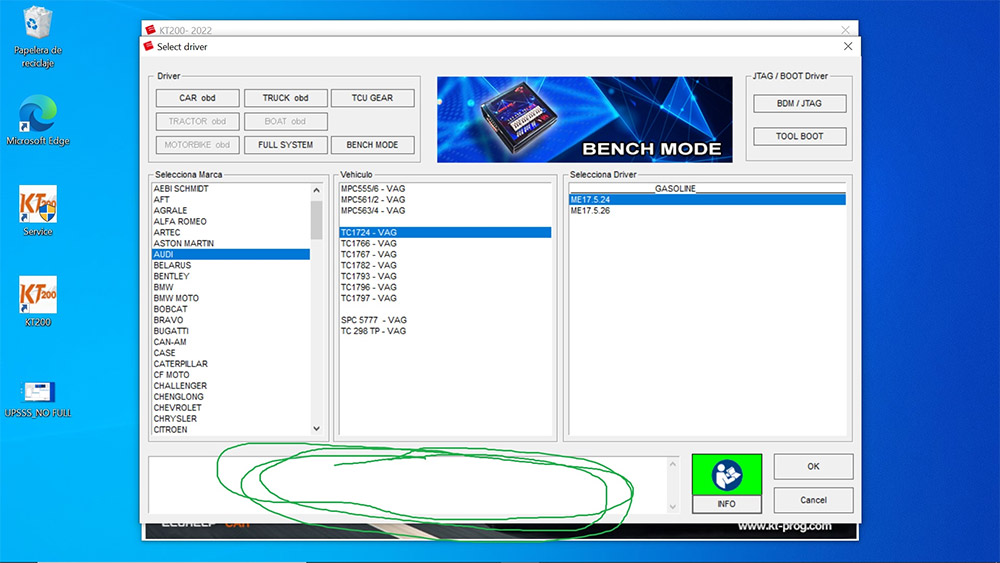

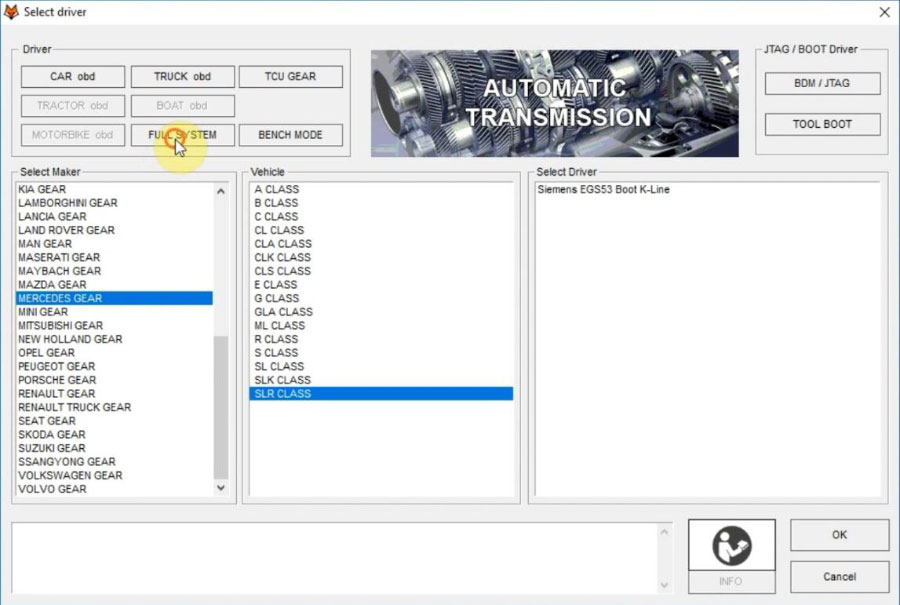

Look at the following image of KT200 car truck version, the enabled options are CAR OBD, TRUCK OBD, TCU  GEAR, FULL SYSTEM and BENCH MODE.



ECUHELP KT200 offers three different versions to cater to your specific needs: Auto Version, Full Version, and Offline Workstation. Let's explore their similarities and differences through the following image:



Conlusion:
KT200 Auto version works in Online mode (connect software online to access our server, no lock issue).

Is it possible to switch my ECUHELP KT200 from online to offline mode?

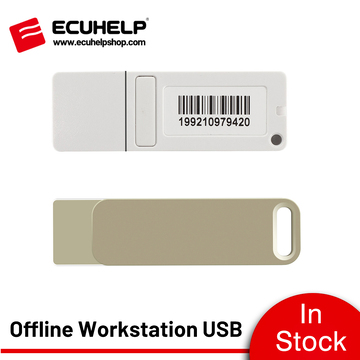

There’s an offline dongle available for the full version that enables offline mode. However, please note that the dongle doesn't work with the auto version. You can purchase it from ECUHELPshop.com. Keep in mind that the dongle needs to connect to the internet every 2 weeks. Once connected, you can move your Kt200 to a location without internet and use it.

In short: Update to kt200 full version  and then buy one extra Offline Dongle.

6. Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish


7. Update: Free update no annual fee (If you want to add new modules in future, need pay for new modules)

8. Warranty: 1-year warranty period, after-sales service guarantee (>>Online Technical Support)

ECUHELP KT200 Update(April 2023 ):
Add one extra HTprog Clone Adapter
Cover more ECU Clone List: Confirmed
On Bench Chip Tuning / ECU Cloning: Confirmed
BDM read/write: Confirmed
Built-in Editors: Confirmed
Other functions: Confirmed
Key Features: Confirmed
IMMO BDM read/write: Confirmed
-> ECU Clone List
-> on Bench programming support list

Look at the image of HT Prog adapter:



Ecuhelp KT200 2023 software update(02/01/2023 ):
1. Fixed the bug that the software functions were not synchronize.
2. Optimized server connection time, high speed and convenience.
3. Fixed the problem that some models are prone to error messages when reading and writing in bench mode.For example, EDC17 series.
4. Optimized tool checksum issues (except EDC17 series)
5. Optimized the full system function in the software function.
6. Shortened the read and write process time, more quickly.
7. Fixed the TCU response speed, some models are prone to errors in the reading and writing process.
Download KT200 2023 software

How To Install KT200 New Software V12.10?
Step 1: Download the kt200 service and installation package, Unpack the packages and complete the installation.
Step 2: Connect the device, open the  "Device manager" in your computer and manually install the device driver. After complete, open the kt200 service
Step 3. Click " download  software" in kt200 service to install the KT200 work software, it will automatically update the newest version, and wait for the installation.
Step 4. Click the "Wiring diagram "to download (this has all the wiring picture the device supported), and it will automatically download and complete the installation.
Step 5. After completing software download, You can open the software normally. And after downloading the Wiring diagram, you can do the ecu work normally.
Step 6. When the software cannot be opened, you can click the "Diagnosis" button in KT200 service software first for detection.




KT200 2022.12.10 new update:
NEW AUTOMATIC FUNCTION: TRICORE CLONE
Added automatism to clone the following control units with OTP zone adaptation and password:
– BRP Can-Am ME17.8.5
– BMW MED17.2
– BMW MEV17.2
– MINI MED17.2
– MINI MEV17.2
– MERCEDES BENZ EDC17 CP01
– OPEL EDC17 C84
– OPEL EDC17 C42

ECUHELP KT200 Auto Version Function:

1. Covering a full range of German, ECU Programmer  Japanese, American and Chinese models

2. EGR & DPF Removal, IMMO OFF, releasing speed limit , mileage correction, Hot start or Cold Start Vmax, and so on.

3. The list of vehicles is constantly updated, which keeps you at the forefront of the industry.

4. Support Volkswagen Audi clone (local operation without sending data to manufacturers)

5. ECU maintenance, Chip tuning, DTC code Removal, professional reading and writing equipment covering 99% of the models in the market.

6. Function Features
Supports Checksum Calculation
Full read and write TCU (Micro+EEPROM)
TCU Clone
TCU Coding
Covering up to 5400 ECU, over 500 TCU ( i.e Volvo MPS6, VAG DQ400e/SQ100, Jeep 9H28 TCUs)
Get free VR files and Damaos files from ECUHelp V3.0

7.  Supports Simos PCR2.1 unlock by OBD CAN.

8.  Can perform full backup of edc15 (flash+eeprom) by pinout. No need to open and boot mode which is a rare feature.

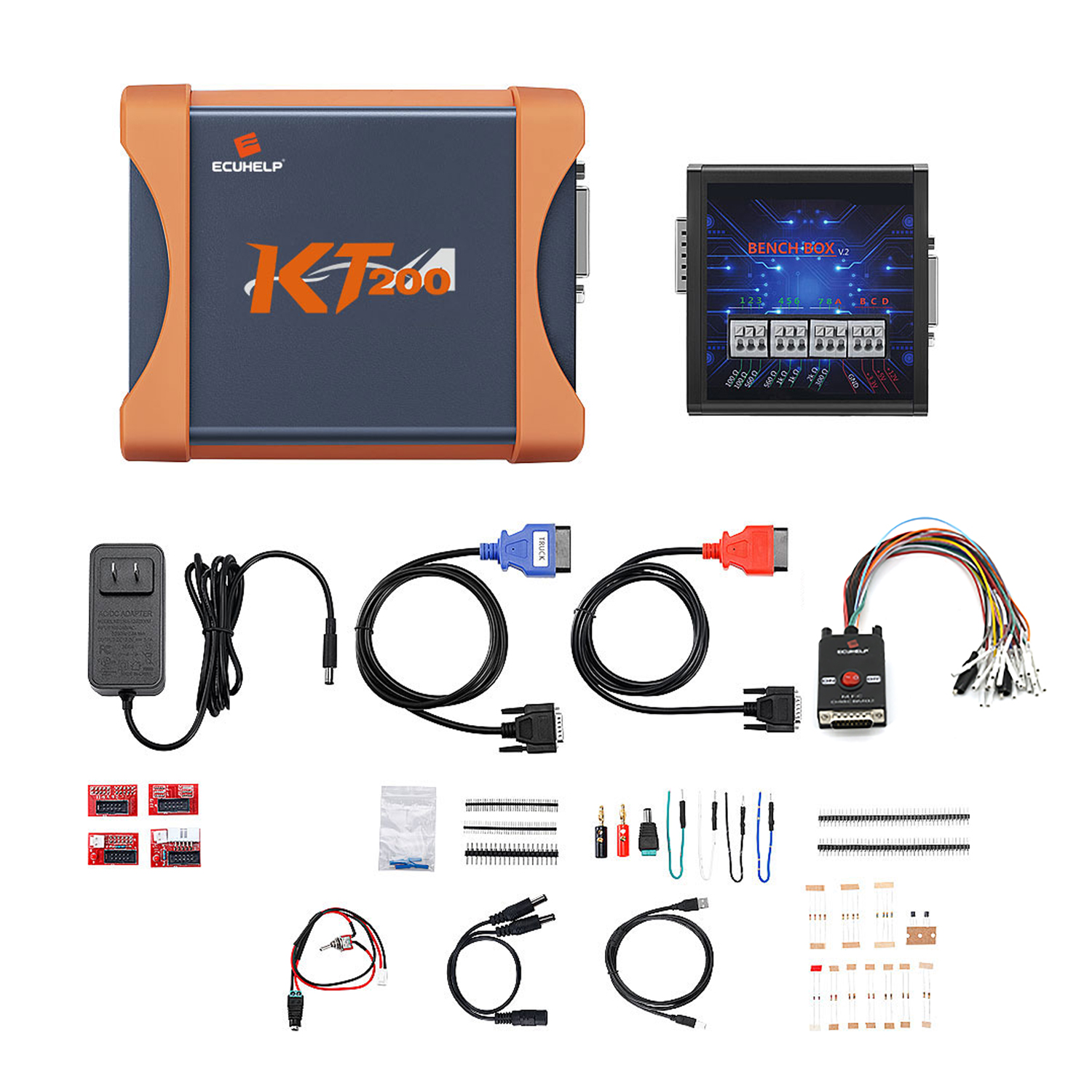

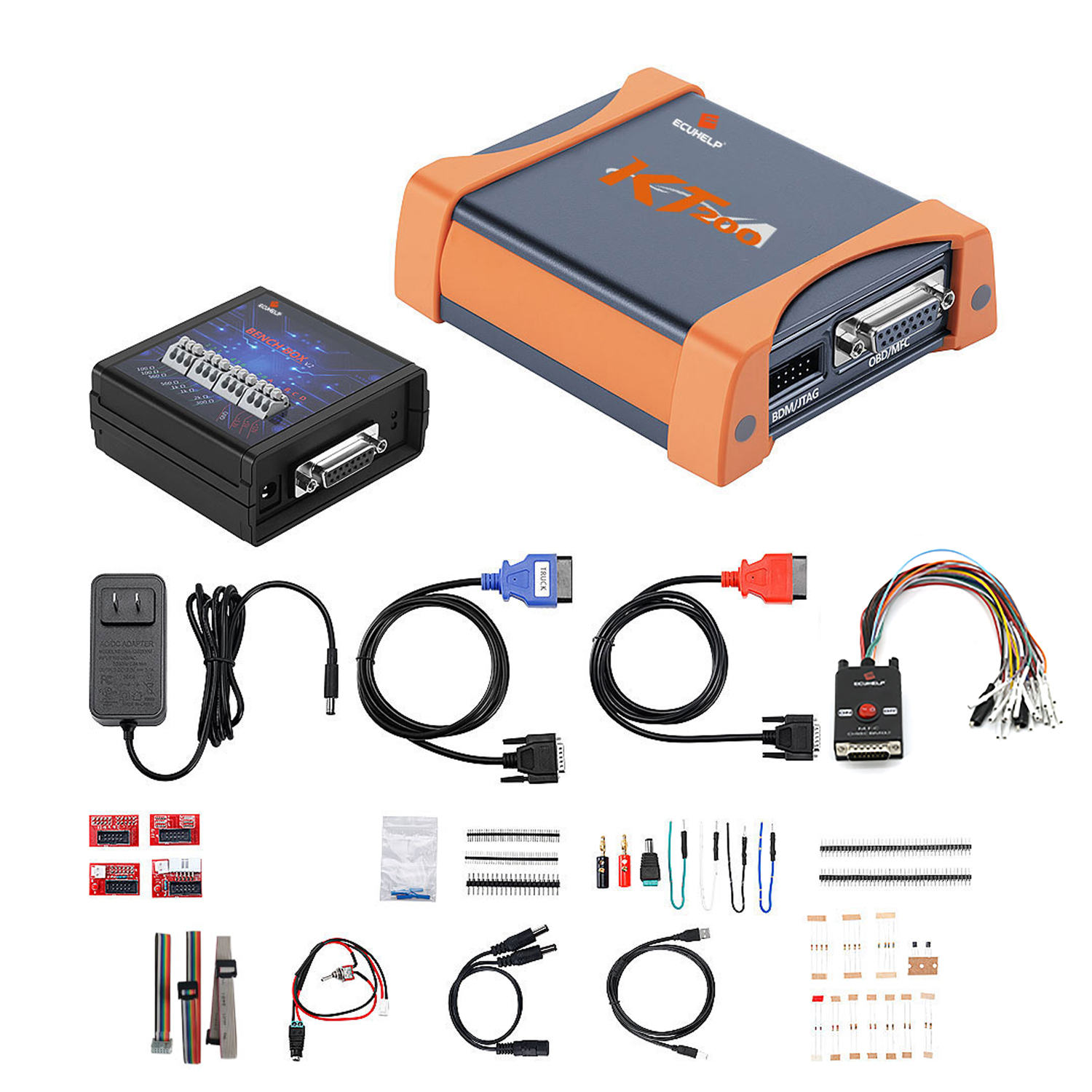

ECUHELP KT200 Auto version Package Includes:

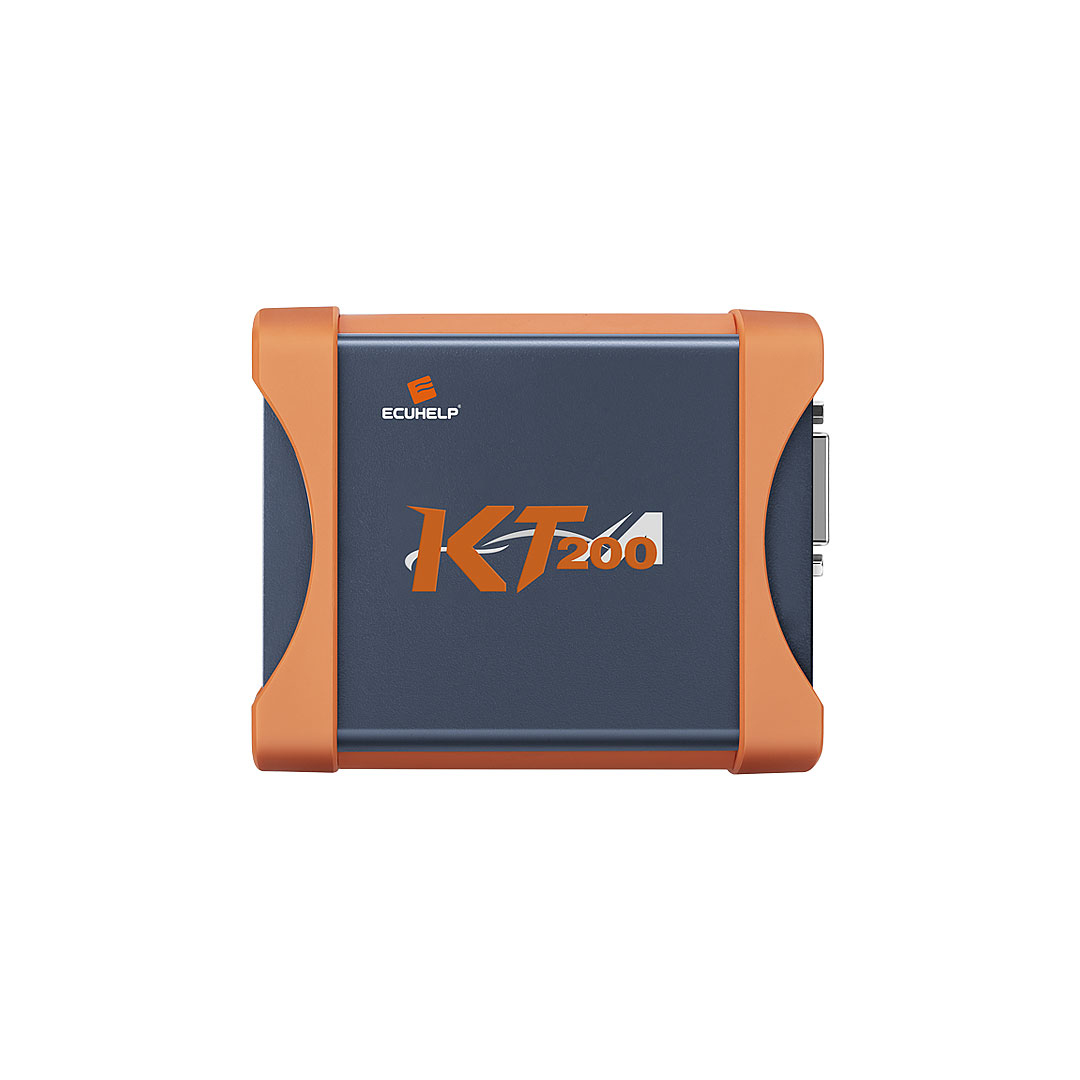

1pc x Master,

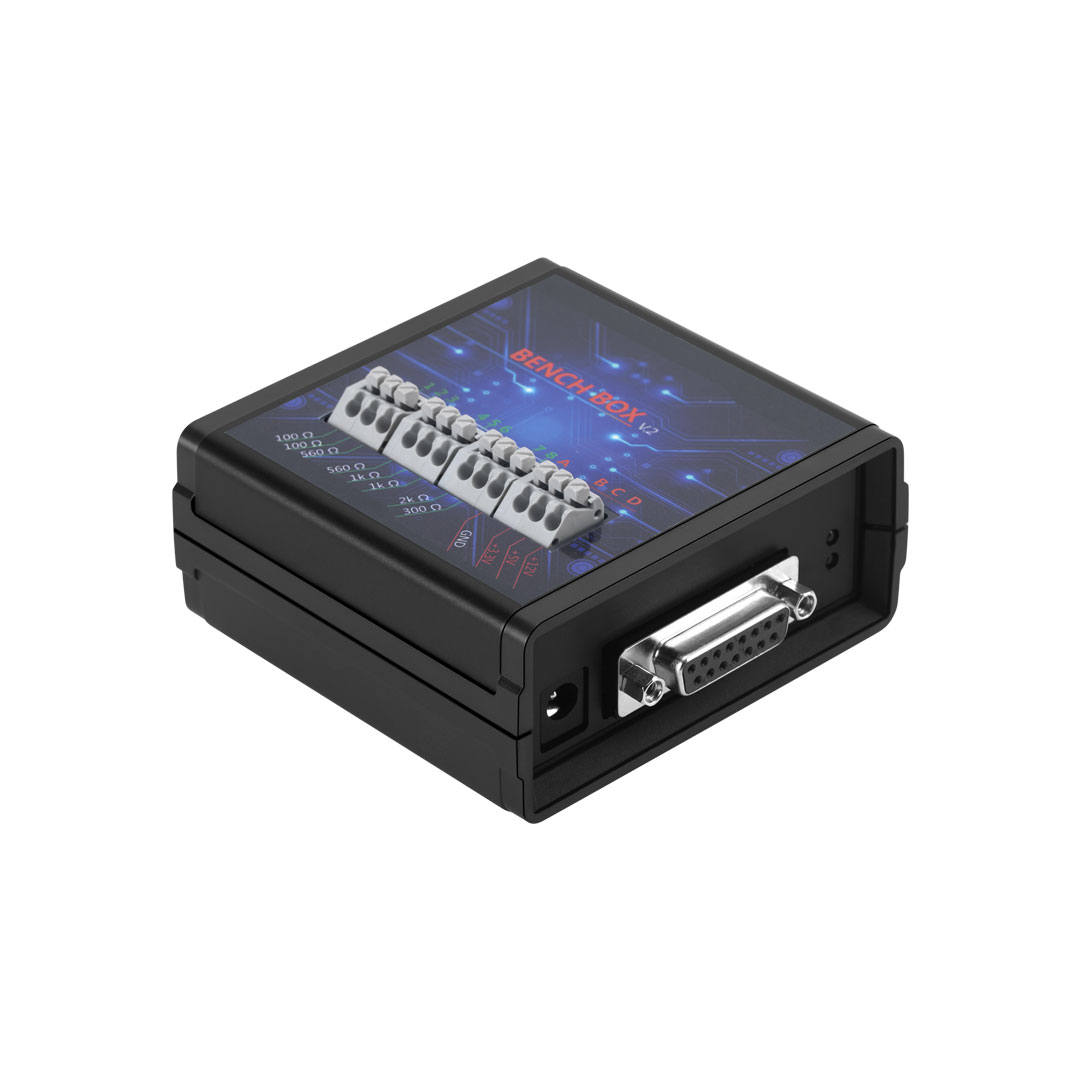

1pc x BENCH box
2pcs x OBD wires
1pc x pinout line
4pcs x BOM adapters
3pcs x Transfer cables
4pcs x Power wire
1pc x Set of resistors
4pcs x Adapter plugs
5pcs x Power adapters

---

We are dedicated to provide good support and assistance. If you have any questions, concerns, or inquiries, please don't hesitate to reach out to us. Our team is here to help!
Email: Sales@ECUHELPshop.com
Whatsapp: +86-18205996549
Skype: Sales@ECUHELPshop.com
Live Chat: Visit our website and click on the live chat option to chat with Oliver Liu in real-time.




Get answers to common questions about ECUHELP KT200 software, including resolving issues with reading/writing MCM and ACM, and fixing the problem of missing ECU info display.

1. ECUHELP KT200 R /W MCM and ACM Perfectly

This article provides answers to frequently asked questions related to ECUHELP KT200 software. Discover solutions to common issues, including problems with reading and writing MCM and ACM, as well as resolving the missing ECU info display.

Question 1: How to Resolve Reading/Writing Issues with MCM and ACM Using ECUHELP KT200?

Feedback: ECUHELP KT200 successfully reads and writes MCM and ACM. Ecuhelpshop engineers recommend a solution for cases when MCM and ACM fail to be read and written using ECUHELP KT200. The device needs to be opened, and a small part should be removed to enable normal reading and writing.

Related Question: Will This Process Disturb Others' Reading?
Answer: No, this process does not disturb others' reading activities. The suggested solution ensures that the reading and writing process can be performed smoothly without causing any disruption to other operations.

Watch a Video of Successful MCM2 Read/Write Using ECUHELP KT200:

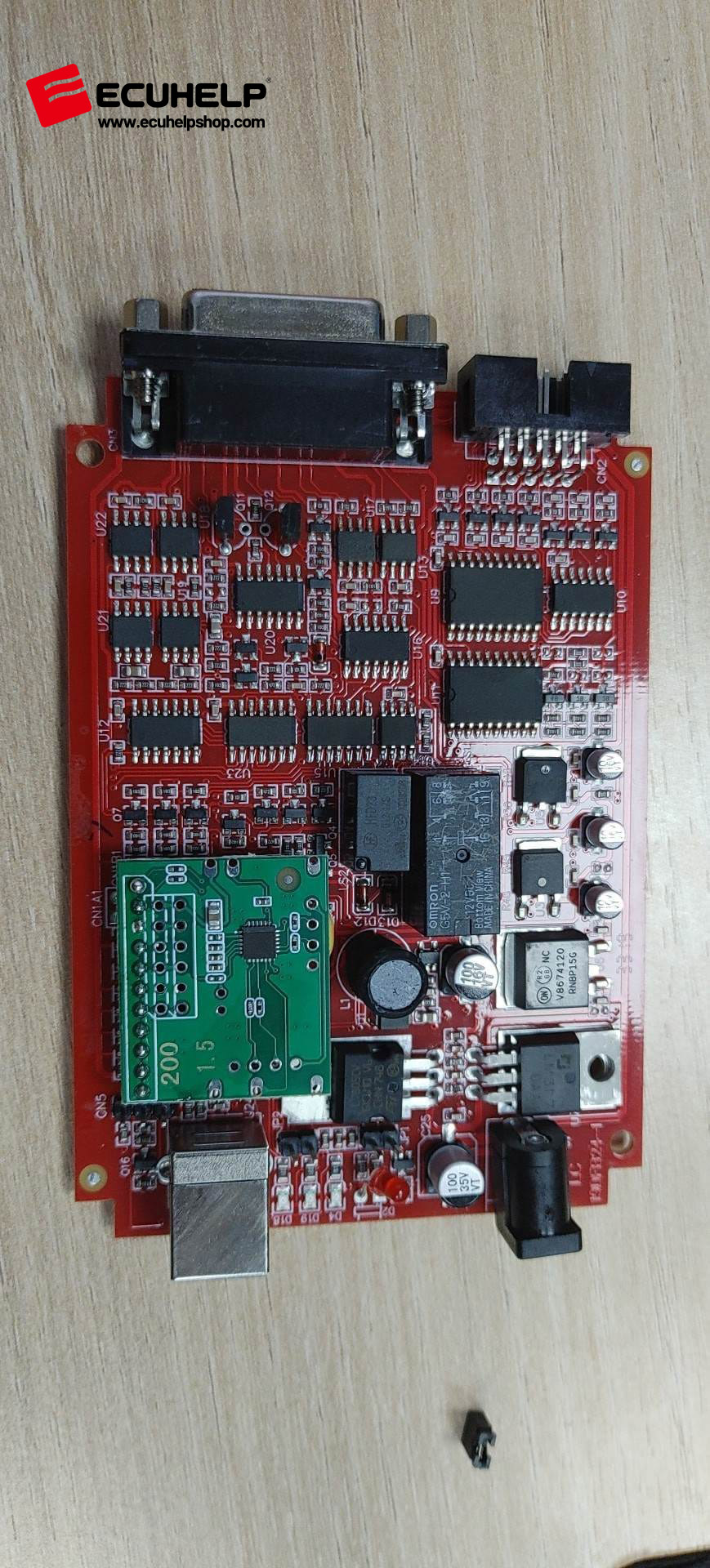

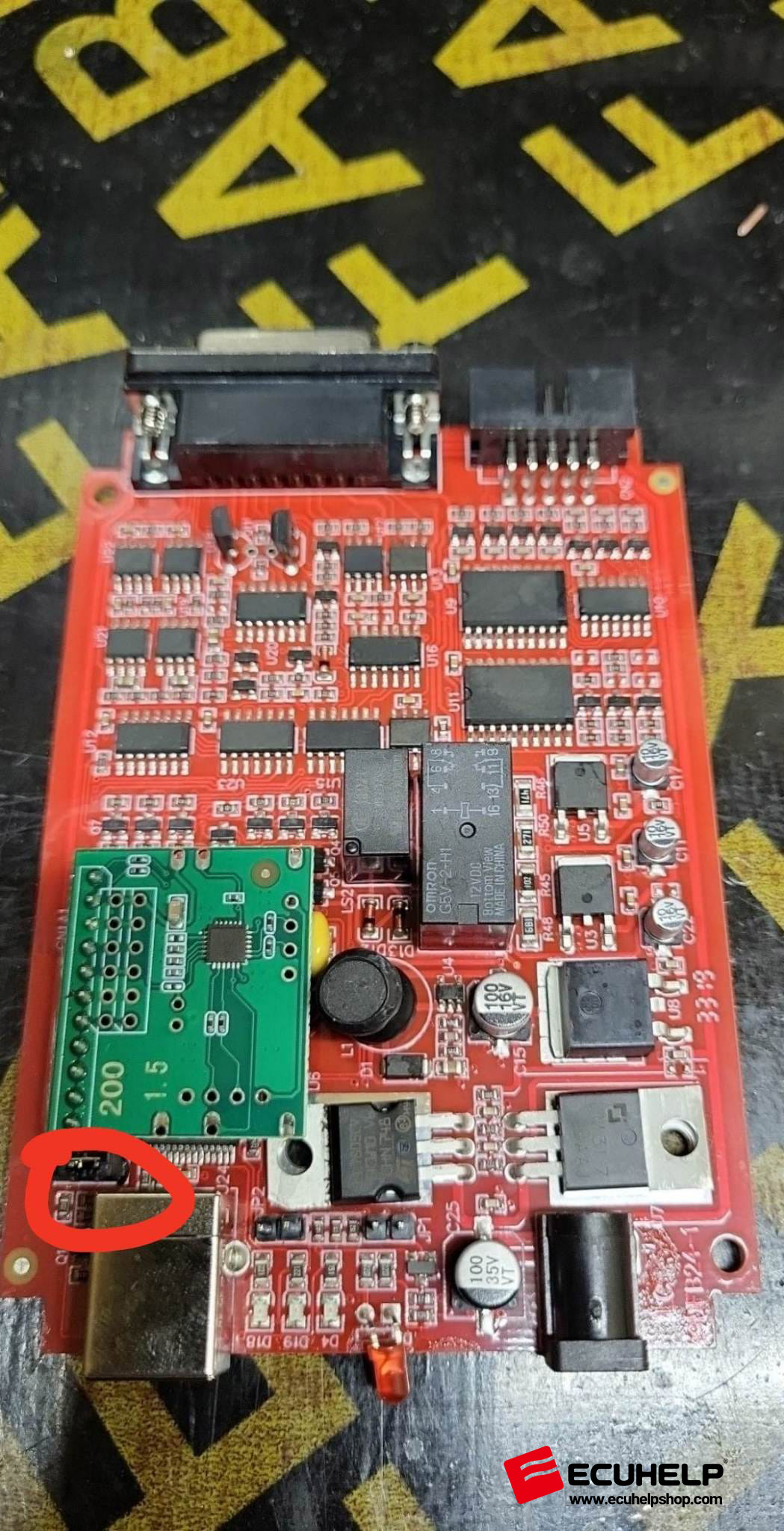

And the following images show how to remove the small part from KT200:






Question 2: How to Fix the Issue of Missing ECU Info Display in KT200 Software?
You can download the "auto.txt" file. Simply place this file into the "KT200-MASTER" folder, and it will resolve the issue, ensuring the ECU info is properly displayed.



Hope it helps!
