ECUHELP KT200II ECU Programmer has been thoroughly tested and confirmed for reading and writing the VW EDC16U1 ECU both OBD and bench mode. This article provides a comprehensive overview of the procedures and includes visual aids for clarity.

OBD Mode:

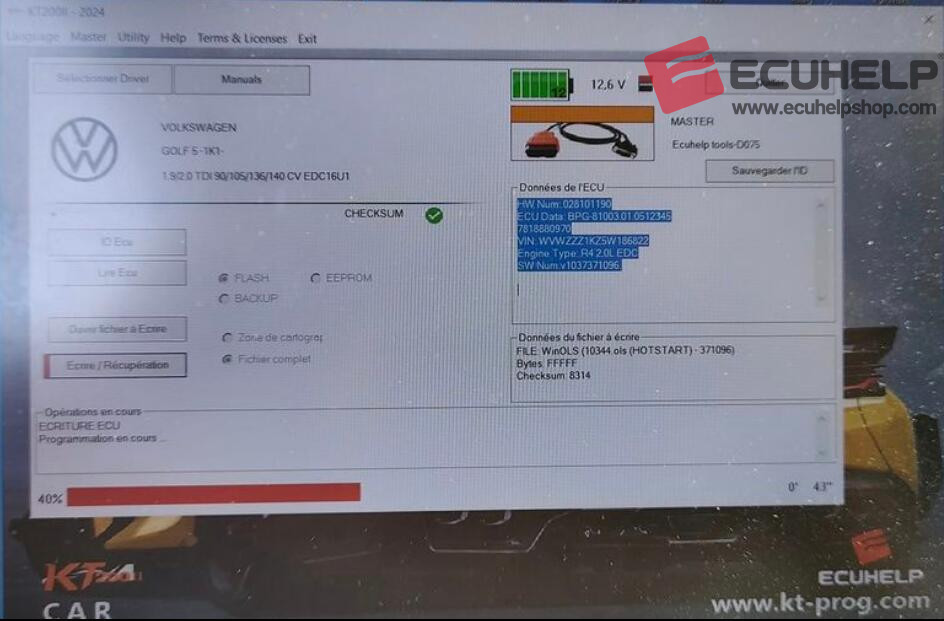

In OBD mode, the KT200II efficiently writes data to the VW EDC16U1 ECU. The following image demonstrates the process.


Bench Mode:
For bench mode operations, the KT200II uses a specific wiring setup to connect to the ECU.

Wiring Diagram:
The KT200II wiring diagram for BOSCH EDC16 U1 [MPC555] applies to Audi, VW, Seat, and Skoda diesel models. Connect the multifunction cable as illustrated, using the Bench Box for proper connection.

KT200II read and write use the following driver:
→ BENCH MODE
→ [ brand ]
→ MPC555 – VAG
→ EDC16 U1

Conclusion:
KT200II ECU Programmer is confirmed to be a versatile and reliable tool for reading and writing the VW EDC16U1 ECU in both OBD and bench mode. By following the provided wiring diagrams and driver settings, users can perform these tasks efficiently, ensuring accurate data management and ECU functionality.
