ECUHELP KT200II ECU Programmer has been thoroughly tested and proven effective for reading and writing the Ford Focus 2010 1.6TDCi EDC16C34 ECU in bench mode. This guide outlines the process, supported by visual aids to ensure a clear understanding.

Bench Mode Operation
Connection Setup:

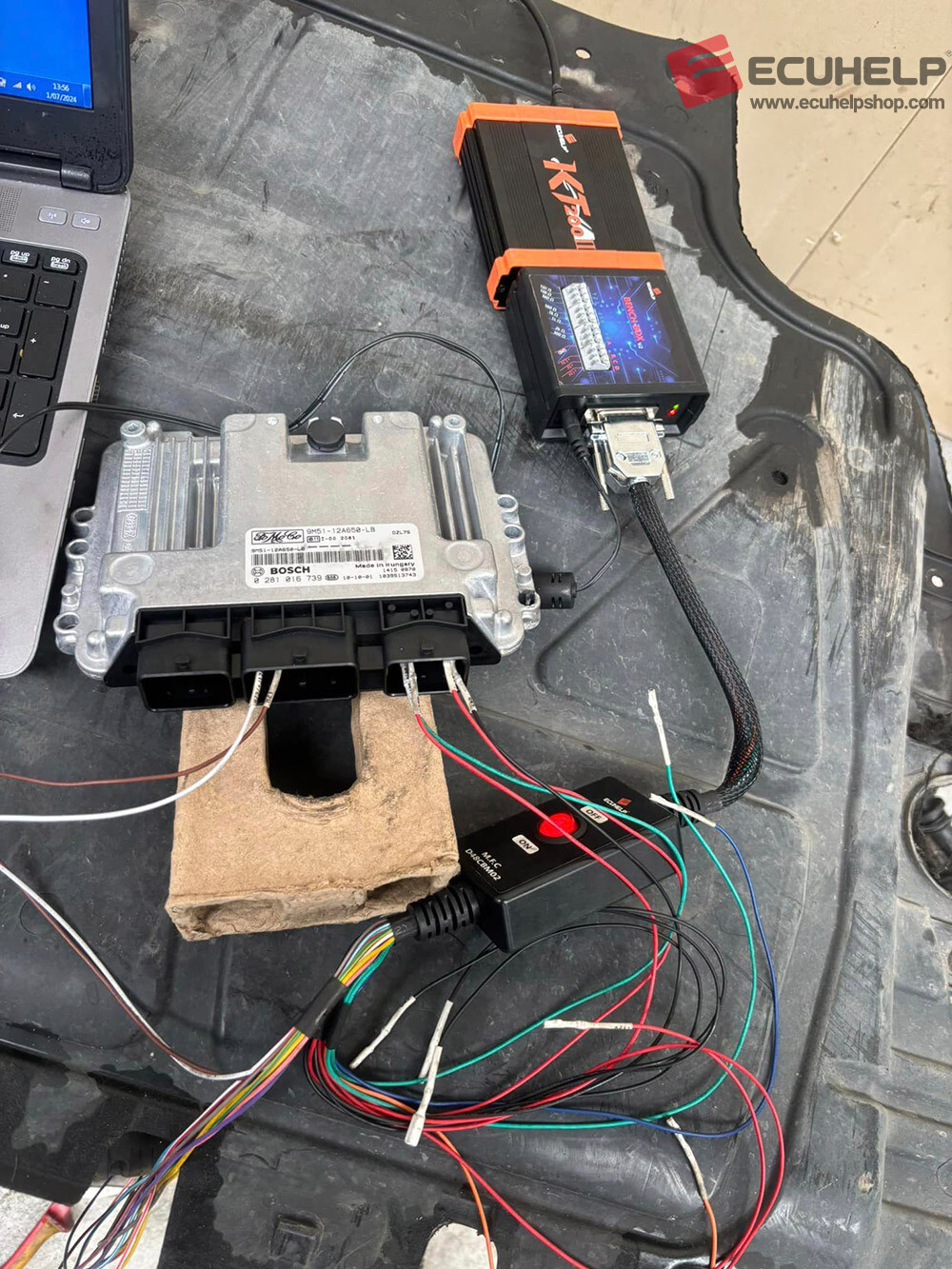

The first step is setting up the connection among the KT200II, the ECU EDC16C34, and the computer. The following image shows the proper setup for bench mode operation (credit to one user's image)


Reading the ECU:
With the connections properly established, the KT200II initiates the reading process for the EDC16C34 ECU. The image below captures the KT200II reading the ECU until completion (100%).


Writing to the ECU:

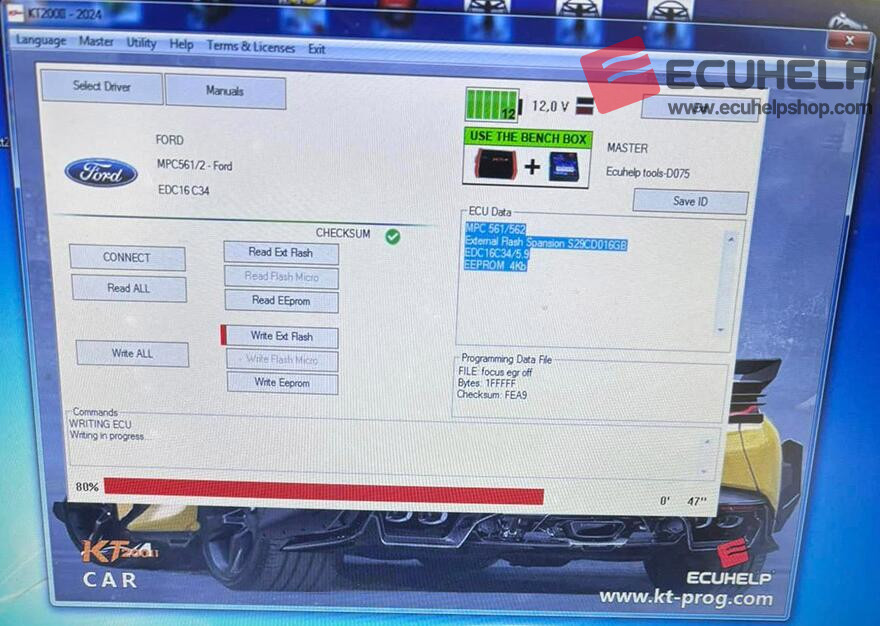

After successfully reading the ECU, the KT200II proceeds to write data to the EDC16C34. The final image demonstrates the writing process being carried out until it reaches 100% completion.


Conclusion:
KT200II ECU Programmer is a reliable tool for reading and writing the EDC16C34 ECU in a Ford Focus 2010 1.6TDCi in bench mode. The provided images guide users through the connection, reading, and writing processes, confirming the KT200II's effectiveness and efficiency in handling these tasks.
