ECUHELP KT200II ECU Programmer has been successfully tested for reading and writing the Qashqai 2020 MD1CS006 ECU bench mode. Bench reading takes approximately 3 minutes, while bench writing is completed in just 40 seconds. The AdBlue Off function works correctly as well.

Required Tools:
Multifunction Cable
Bench Box V.2

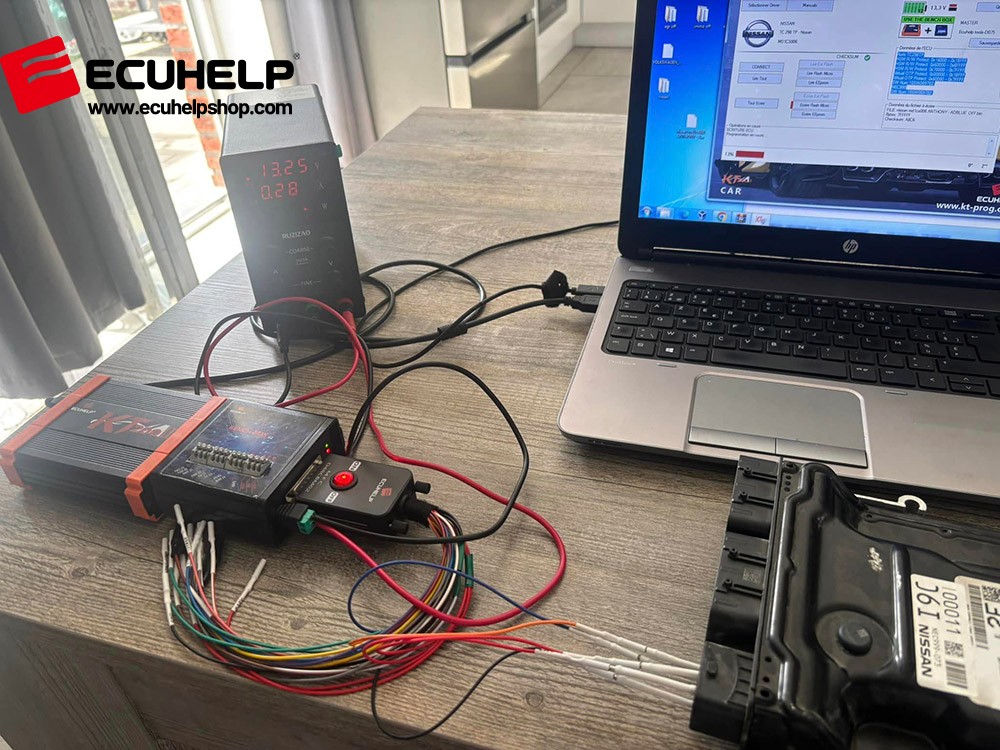

Follow the connection setup for the multifunction cable as shown in Image 1.

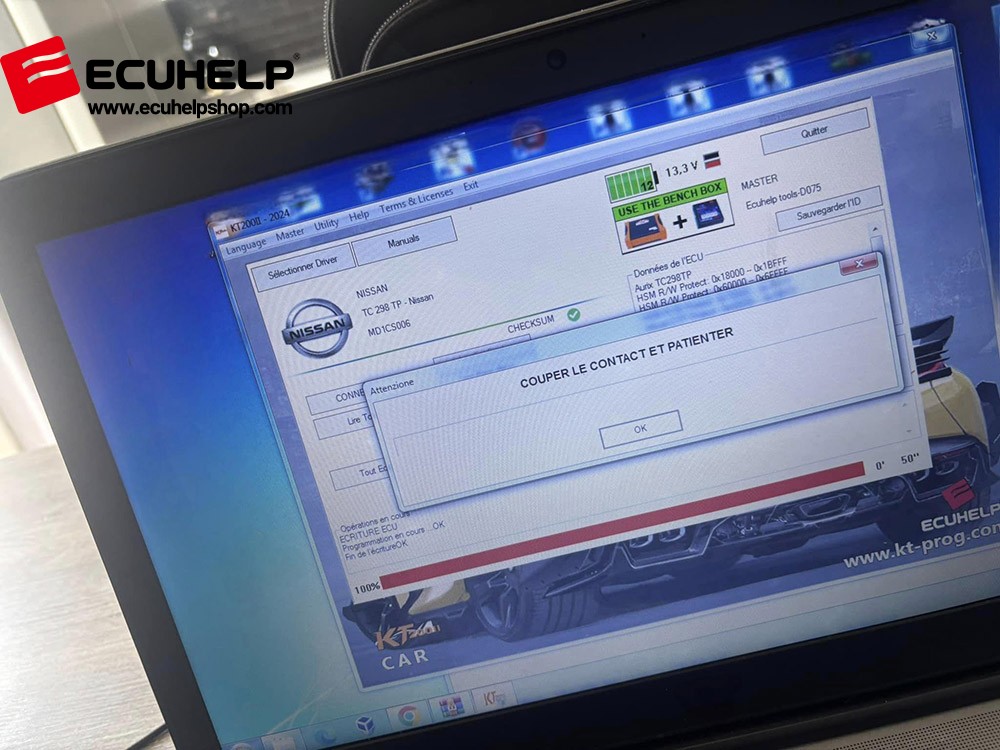

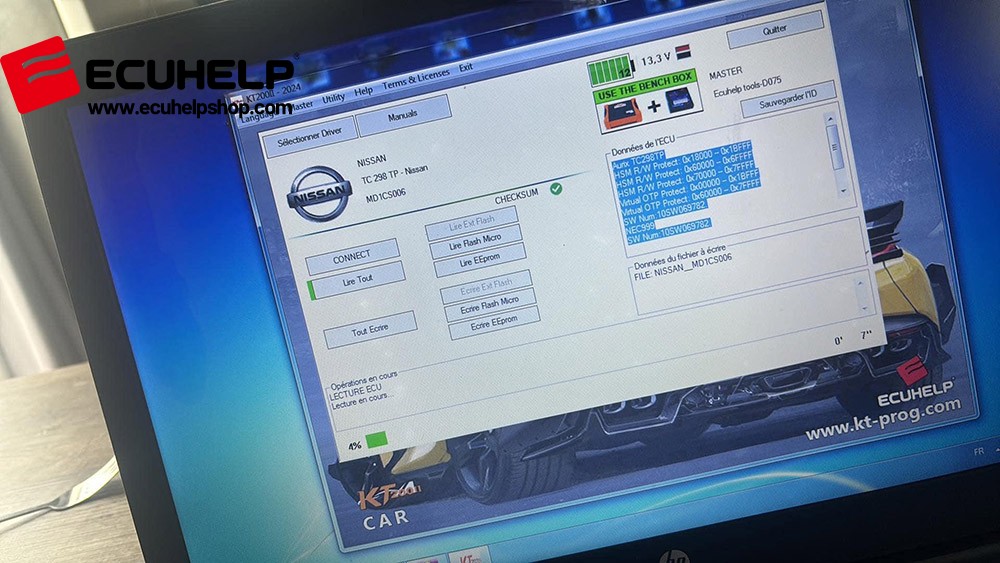

Use KT200II to read and write use the following driver:
→ BENCH MODE
→ NISSAN / RENAULT / DACIA / MERCEDES / FIAT
→ TC298TP
→ MD1CS006



Conclusion:
KT200II proves to be a fast and reliable ECU Programmer for reading and writing the Qashqai 2020 MD1CS006 ECU on bench.
