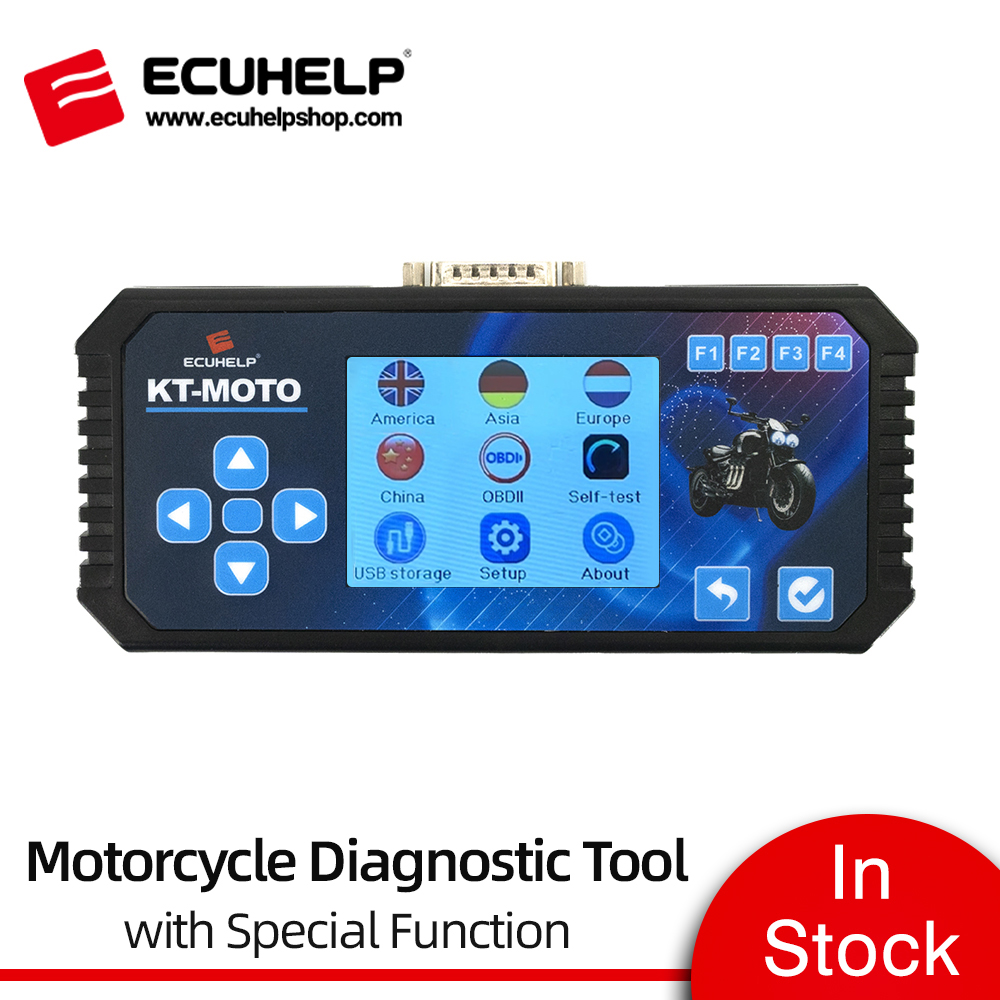

ECUHELP KT-MOTO Motorcycle/ Motorbike Diagnostic Scan Tool + Special Function

ECUHELP KT-MOTO Motorcycle Scaner Motorbike Diagnostic Tool for Diagnosing Fault Code and Faster Repair

ECUHELP KT-MOTO is the new generation Handheld Motorcyle diagnostic scan tool, it can perform virtually all major manufacturers' diagnostic functions. It helps the technician to diagnose problems and makes repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).

KT-MOTO shows live data, displays ECU data, reads stored faults(history) or live data (RPM,batteryvoltage,throttleangle).

Features:

1, Handheld operation, convenient and flexible to use

2, Support for SD cards to store data and upgrades

3, Reserved CAN bus interface

4, 3.2-inch color screen, clear display

5,Dynamic data with numerical and waveform.

Function:

1. Read system information

2. Read data stream

3. Read fault code

4. Erase fault code

5. Read Freeze data

6. CO idle speed adjustment

7. Test ABS system

Special Function:

KT-MOTO allows the technician to perform factory service procedures such as re-setting the service light, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.

For details, please refer to the KT-Moto function list in the attachment.

Support Motorcycle list:

For Hartford,  Aeon, Honda, SYM, Yamaha, Suzuki, Kymco, Kawasaki, Piaggio, PGO, KTM, etc

 Support Multi Languages:

English, Chinese, Thai, Indonesian, Vietnamese, Spanish, Turkish, French, Cambodian.

Specifications:

Power: DC10-15V

Operating Current: 250mA

Storage temperature: -10 C to 85 C

Operating temperature: 0 C to 70 C

Humidity: <90%

Upgrade Ports: USB port

Communication ports: COM port

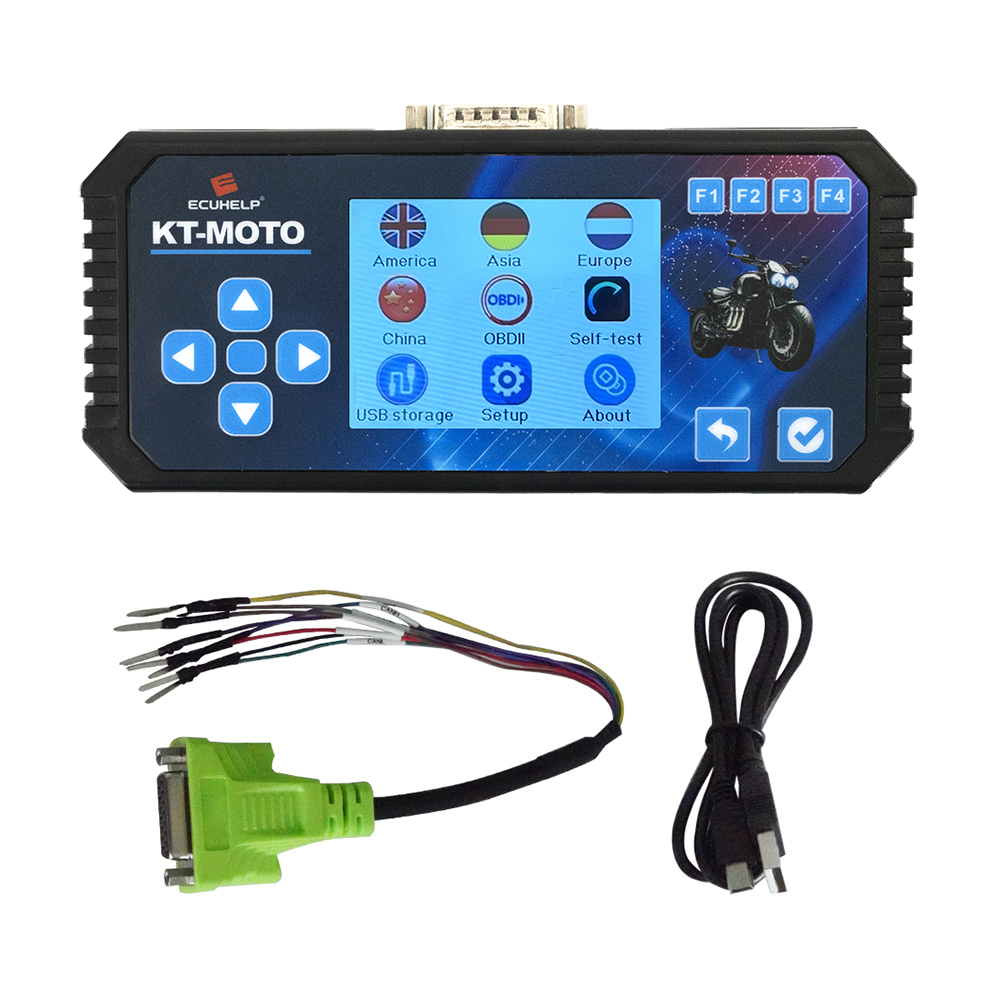

 Package List:

1. 1pc x KT-MOTO Scan Tool main unit

2. 1pc x Battery Test cables

3. 1pc x USB Cable

4. 1pc x Main Test Cable

5. 1pc x OBD-16P Cable

6. 1pc x Generation IV-6P Cable

7. 1pc x User Manual

8. 1pc x Protective Case

9. 1pc x Toolbox

---
