TagFlash Marelli 9GF Fiat Read and Write BENCH / Full mode OK
Car ECU type: Marelli 9GF of Fiat
ECU Tool to use: TagFlash
Test report:

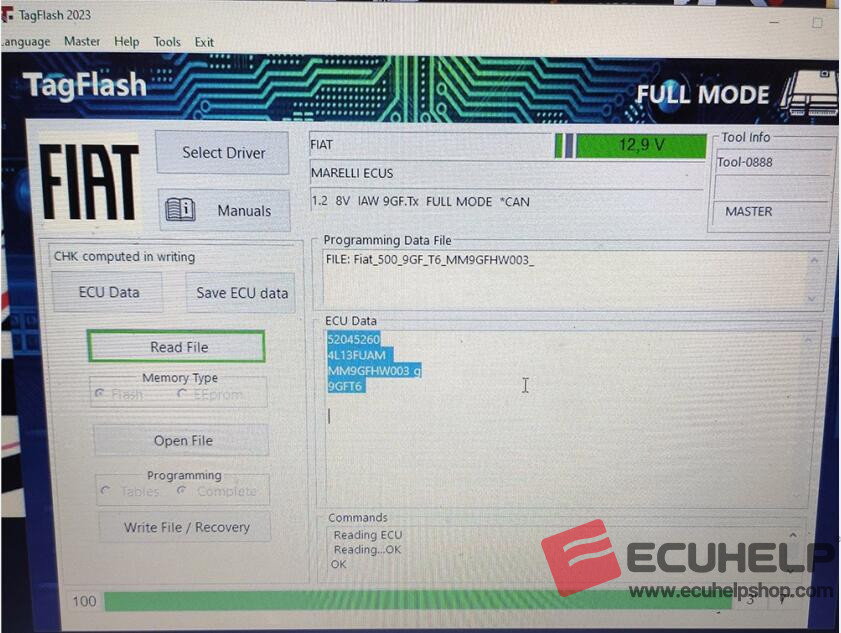

Read OK
Write OK
Checksum OK
Mode:

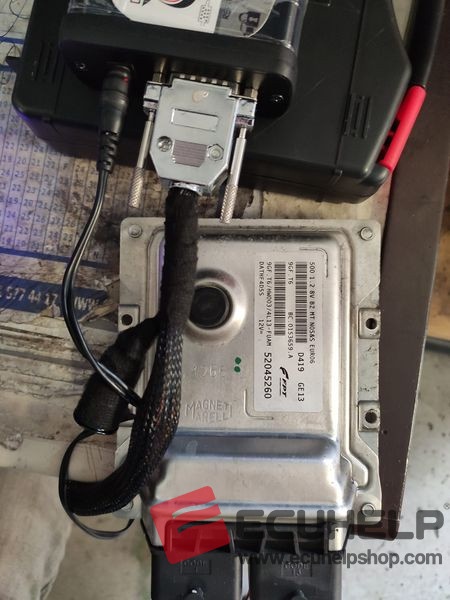

Bench Mode OK
Full system OK
Option 1: Full Mode

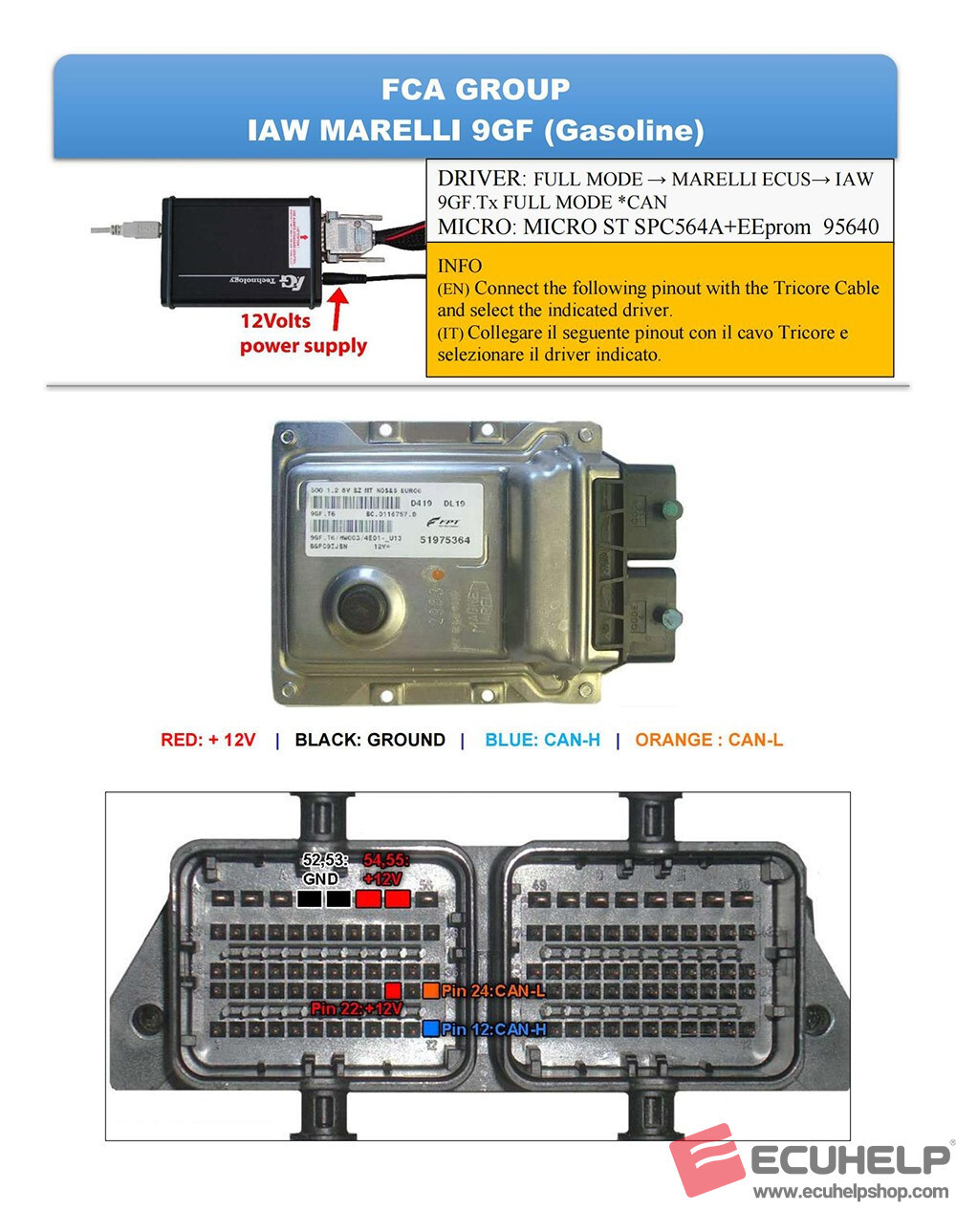

TagFlash wiring diagram of FCA Group IAW Marelli 9GF (Gasoline)

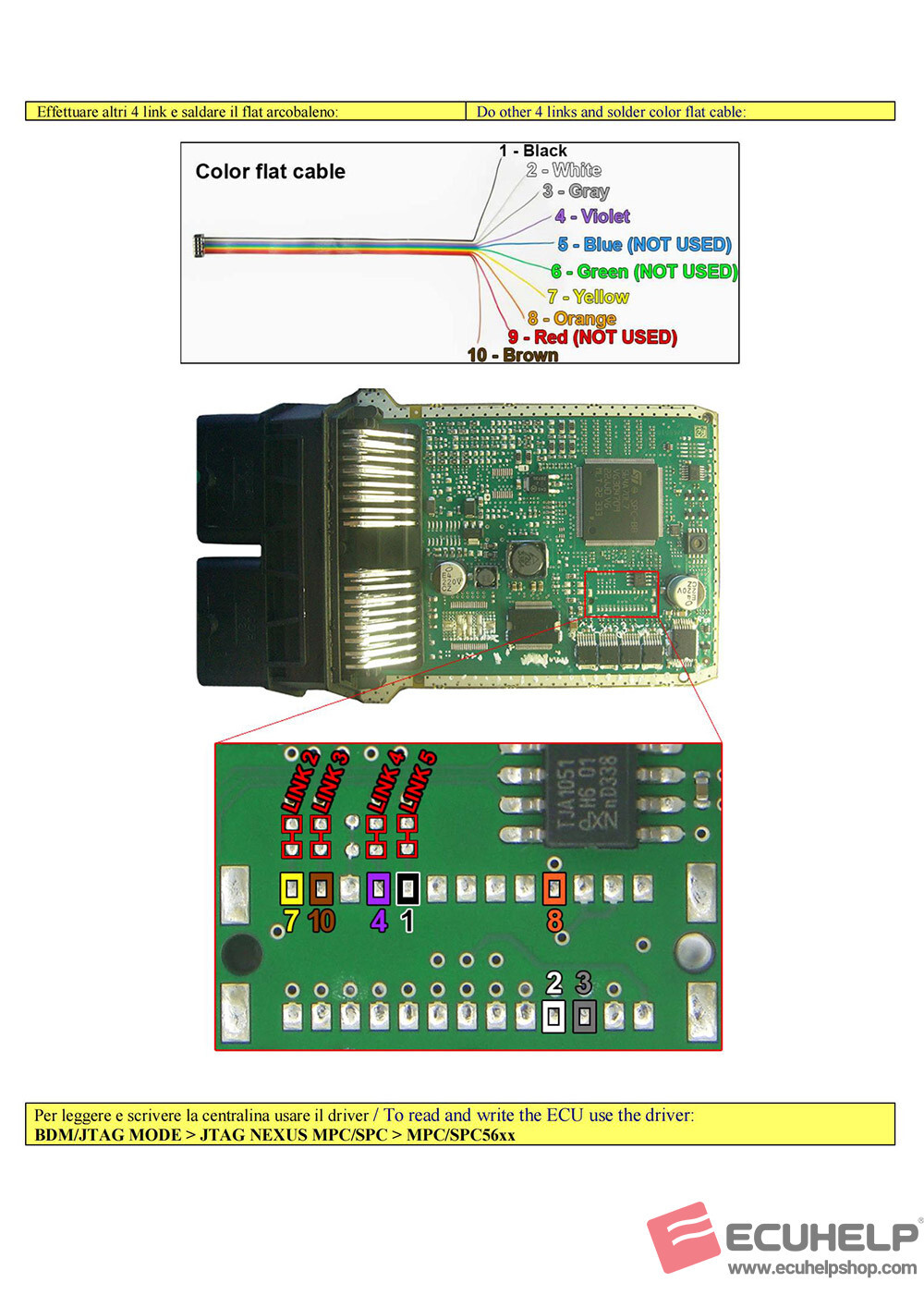

Option 2: BDM / Jtag Mode

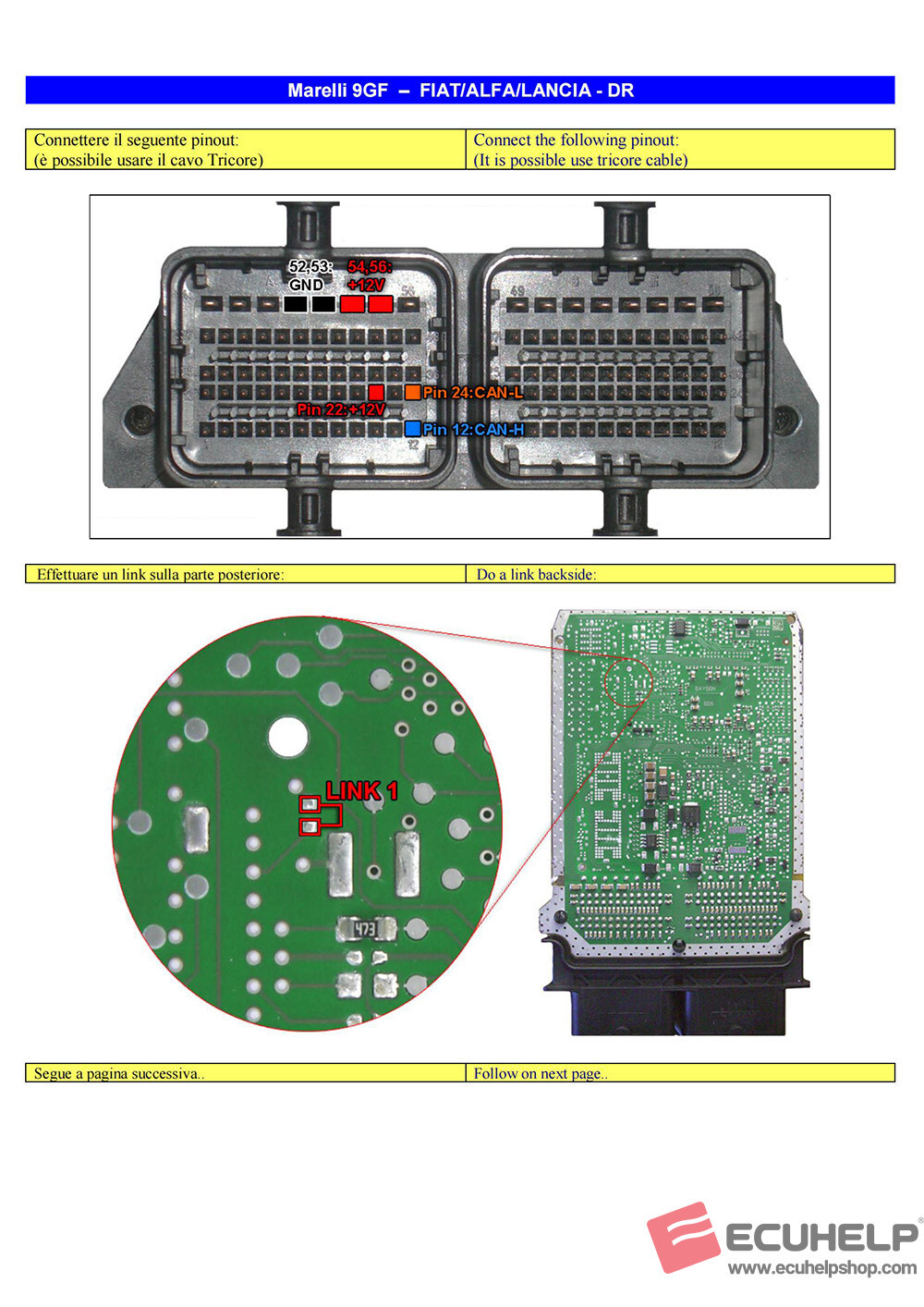

TagFlash wiring diagram of Marelli 9GF- Fiat/Alfa/Lancia-DR
