ECU cloning Peugeot DCM6.2 C EEPROM + FLASH ........ READ & WRITE in TOOL BOOT MODE with KT200II. 100% OK.

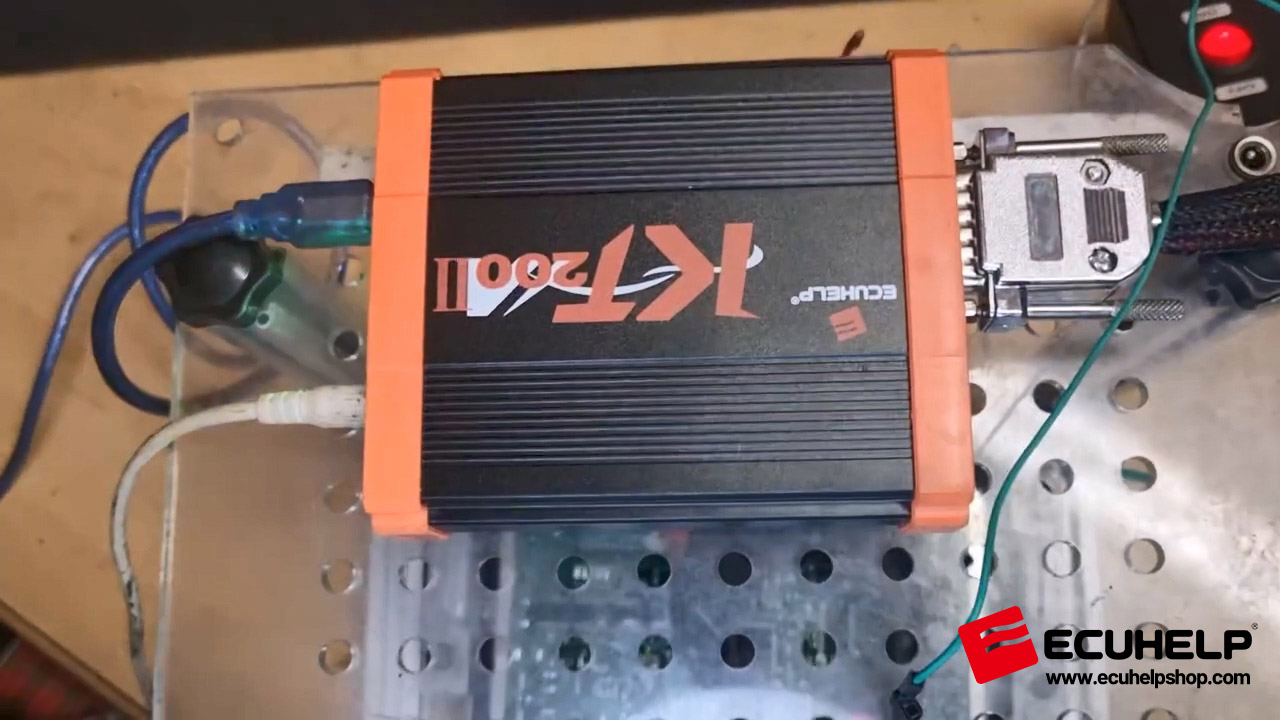

Connect KT200II to the ECU DCM6.2 C Boot mode.

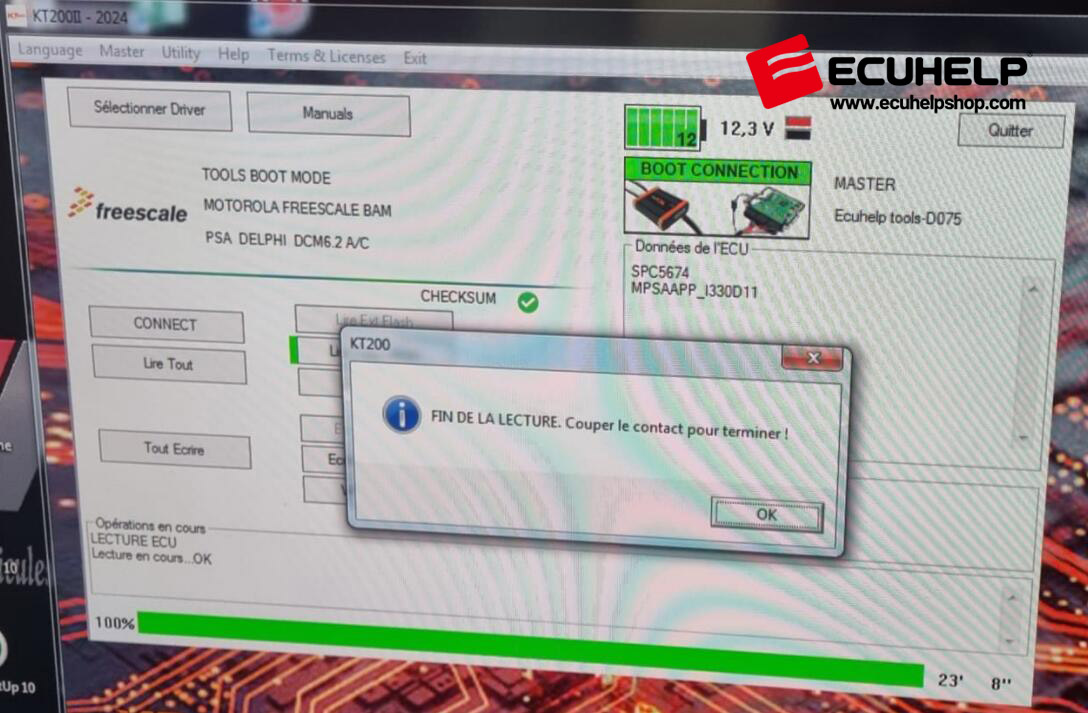

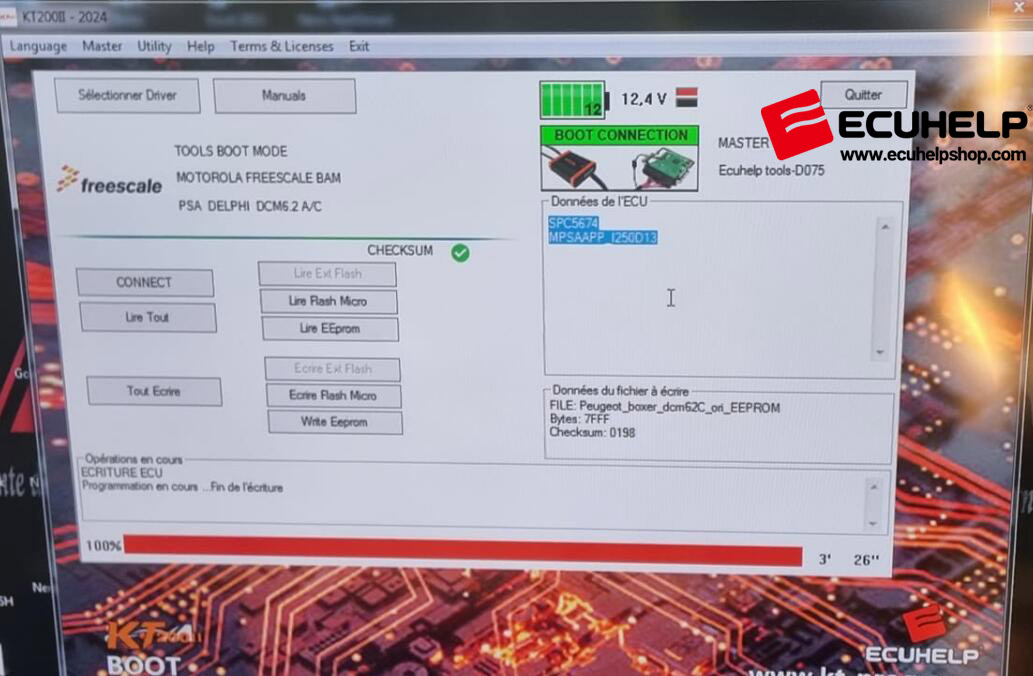

Read and Write DCM6.2 C 100% OK including EEPROM and FLASH.



KT200II wiring diagram of DELPHI DCM6.2 A/C - Peugeot, Citroen, Toyota [ SPC5674 ]:
Kit to use:
- Multifunction cable

KT200II READ AND WRITE ECU

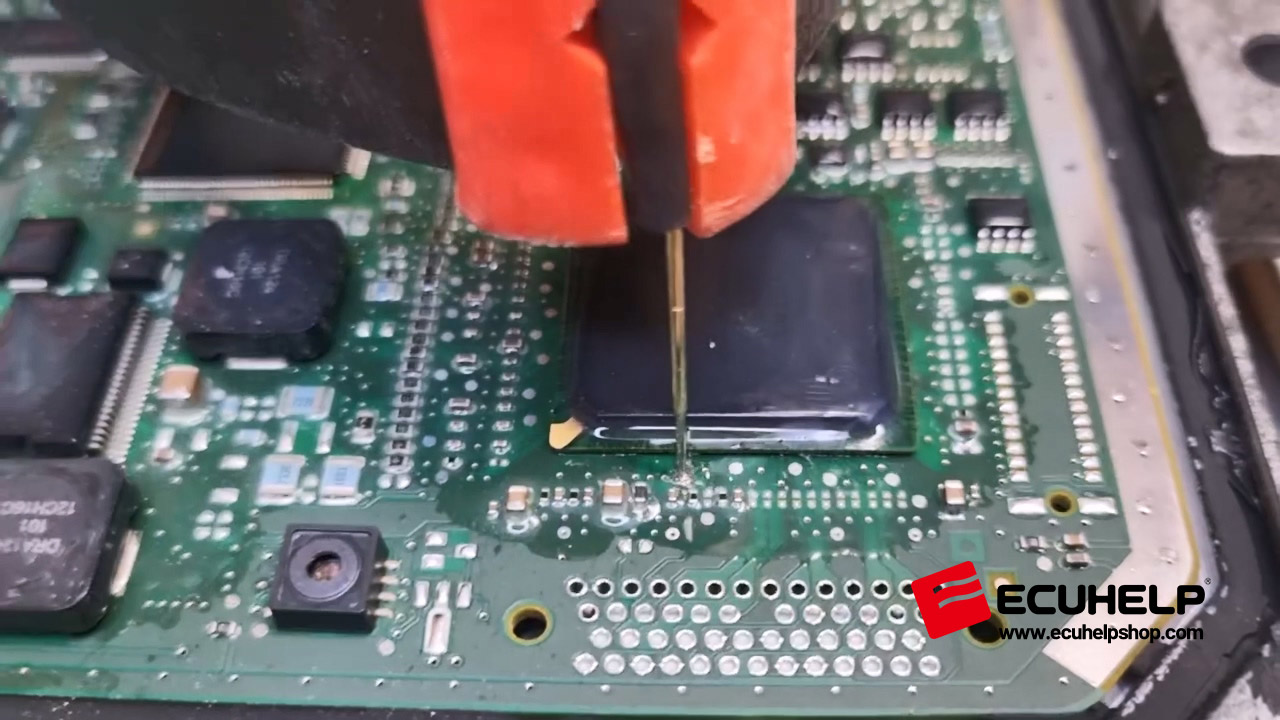

Connect with the multifunction cable the following pinout and the CNF1 signal on the pcb.
Use the driver:
→ TOOLS BOOT MODE
→ MOTOROLA FREESCALE BAM
→ PSA DELPHI DCM6.2A/C
