KT200 read/write Mercedes Sprinter DELPHI CRD3P.B0 on bench ok.

Look at DELPHI CRD3P.B0 ECU:

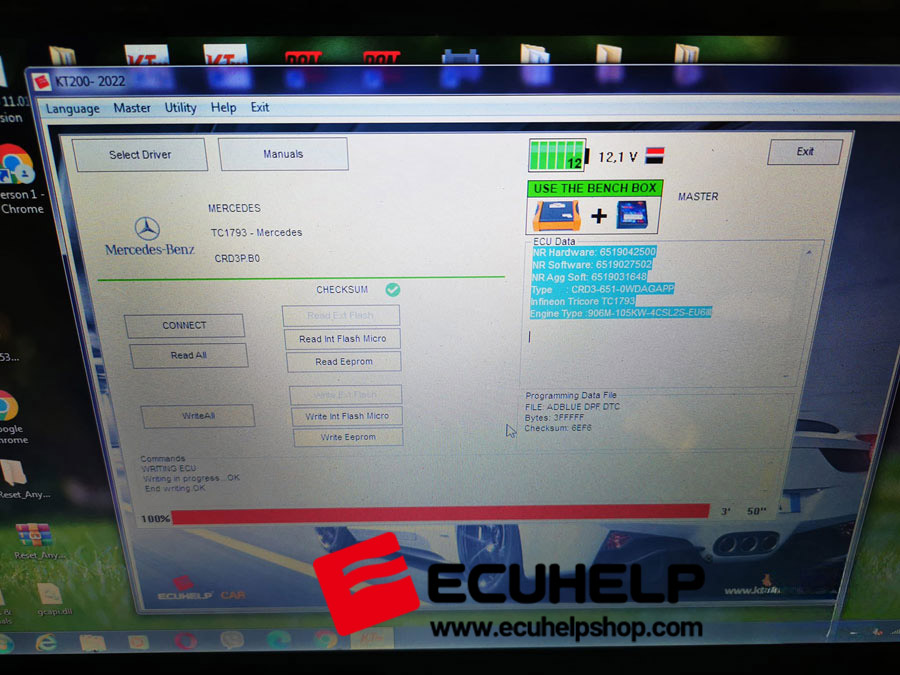

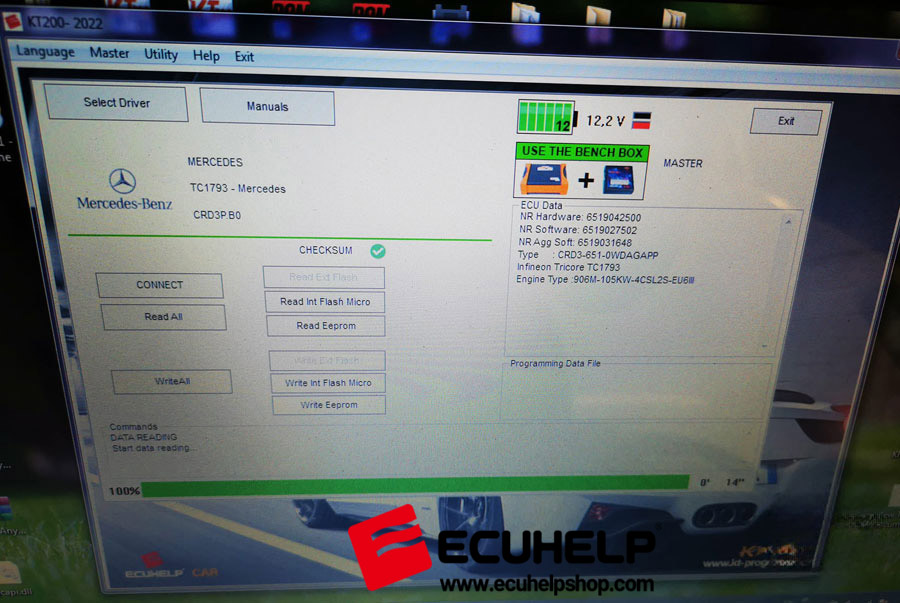

Look at the following images showing KT200 read/write DELPHI CRD3P.B0 on bench ok:

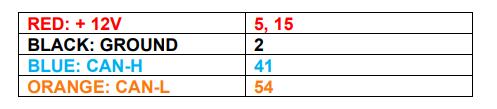

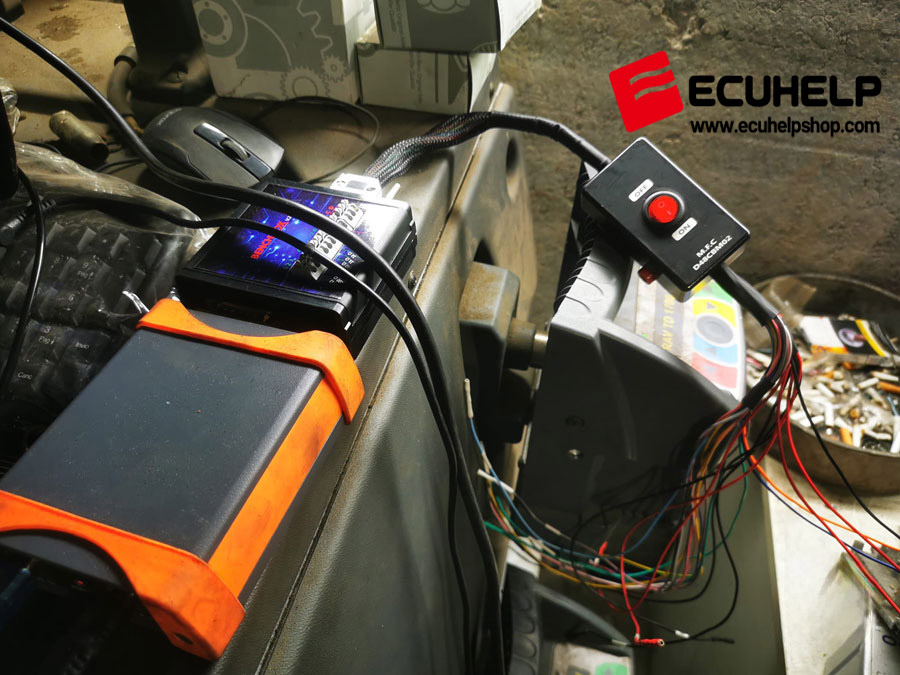

Look at the following 2 images showing how KT200 connect DELPHI CRD3P.B0 ECU on Bench:




Kit to use:
Multifunction cable
Bench Box

Use KT200 to read and write DELPHI CRD3P.B0 use the following driver:
→ BENCH MODE
→ MERCEDES BENZ
→ TC1793 – MERCEDES
and choose between:
→ CRD3.E
→ CRD3.E1
→ CRD3.F1
→ CRD3P.B0
→ CRD3P.C0
→ CRD3P.D1
→ CRD3P.G0
