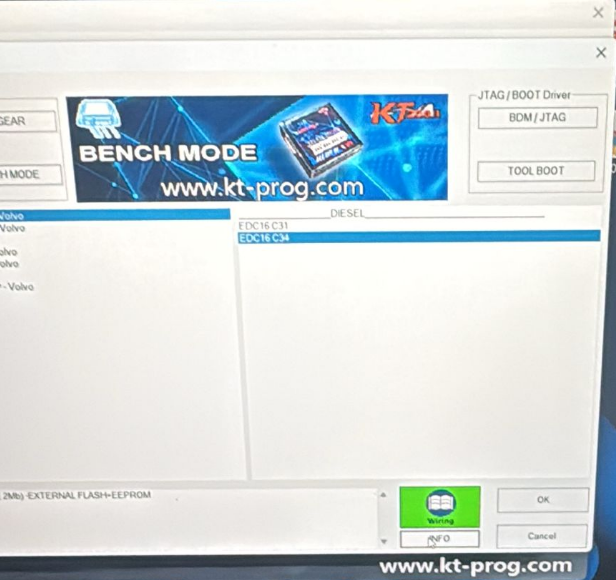

If you have a problem that ECUHELP KT200II ECU Programmer doesn't open the pinout picture (shown as the following image).


Please refer to the following solution (quoted from one user's original words):
You need to navigate to the pdf files located in documents folder inside d-fox folder. Right click on pdf... Open with... Then select default app for opening pdf files.
After restart software it will now open.
