For newer Japanese models I use ecuhelp kt200, never had a problem. Did Mazda cx5 2.2d 2015 2 weeks ago.

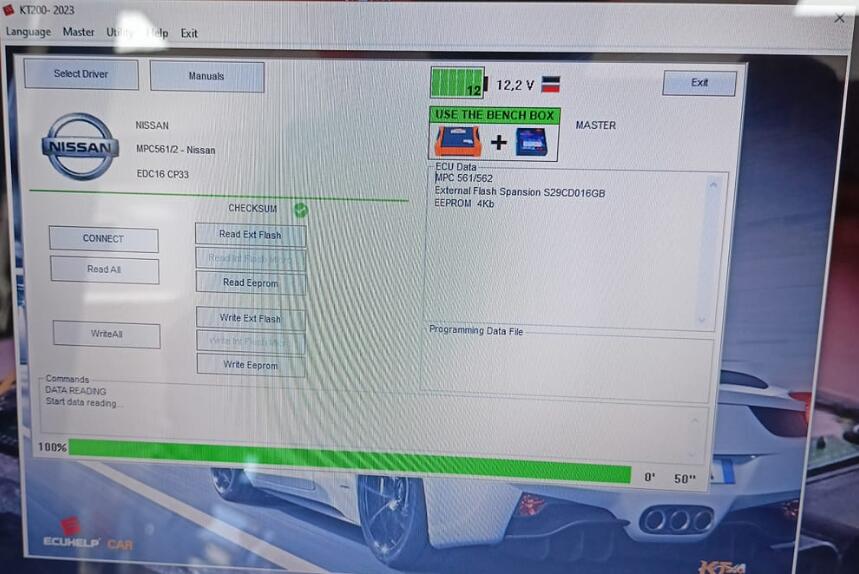

edc16cp33 Nissan 2,0dci on bench, KT200 read/write/checksum works good, or in boot mode works.




kt200 read write ford ranger sid209 ok, first read obd password, then remove ecu and read/write in boot mode. Reading was 2 mins, writing is 15-17 mins.

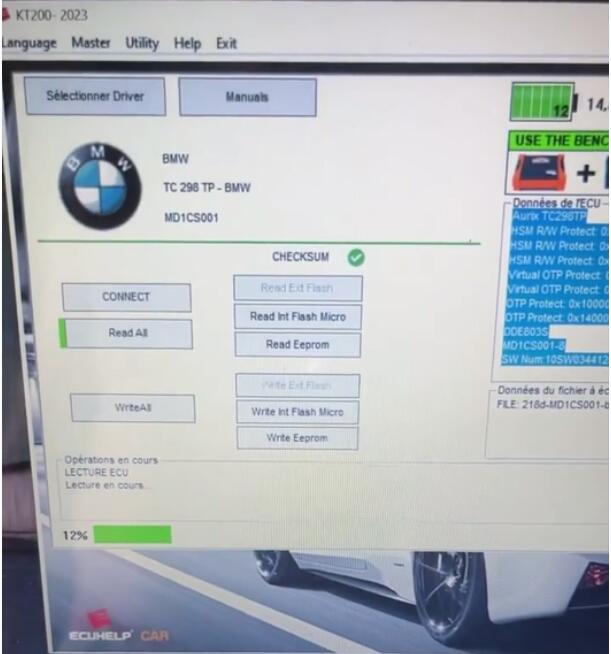

ecuhelp kt200 read/write MD1CS001 BMW 218D ok. Ecu cover is open because there is gazoline into.

Read/Write ecu delco E98 with KT200 yes.

Sid 807 Ford read/write with KT200 Yes, in boot mode or in Pinout mode.

Read/Write Edc17C60 PSA with KT200 on Bench mode without any problem,Cheksum by tool ok too.

If you use the right services and proper file service, the KT200 is a good tool. The key is just to follow the right instructions.
If you can set up Windows, you can install KT200.

KT200 Read/ Write MEDC17.9 Range Rover,bench mode work fine.

KT200 R/W MD1 no problem.

KT200 R/W MB edc17c66 yes.

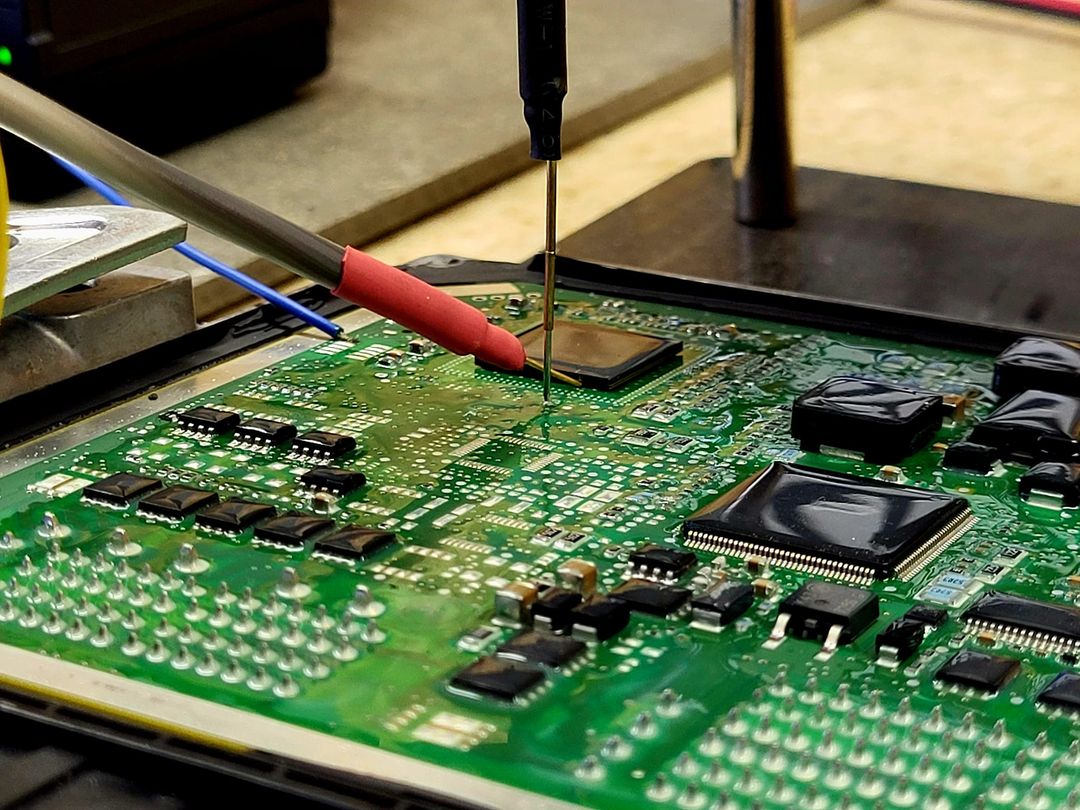

DCM 7.1A boot mode.
Read/write ok
Adblue off
Checksum ok by KT200.

Windows 7/64 or Windows 10 /11 is better to run KT200 software.

KT200 R/W ecu BMW EDC17C50 on Bench ok. BMW always bench.
If it is failed, the problem is not a tool, the problem is the Moded file is incorrect.
This tool is good.

I own some expensive original tools, but there have been instances where the KT200 outperformed them when they fell short. So experience is very important in the way to operate. Good and quality PC setup is also very important.


kt200 read mercedes benz w203 Ecu on Bench.

KT200 R/W successfully BMW mevd 17.2.9 on bench mode.

OPEL 17C19 bench ok
OFF FAP EGR OK
Checksum kt200 ok

The convenience of using KT200 in bench mode for cloning Audi and VW TCU and ECU is invaluable. It saves considerable time and minimizes risks associated with opening the ECU cover. I no longer have to worry about the inconvenience of accessing the ECU physically.

KT200 requires a computer connection to access its software, which may be its only minor drawback. However, the moment you unpack KT200 and see the car and truck OBD cable along with the pinout connection cable, excitement sets in. What truly sets KT200 apart is its real-time display of ECU connection status. Furthermore, when selecting a different ECU, the software provides information on the appropriate wiring connections, which is truly remarkable!
