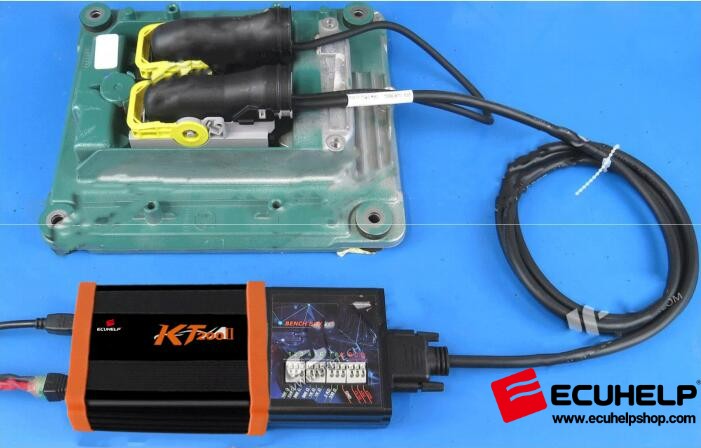

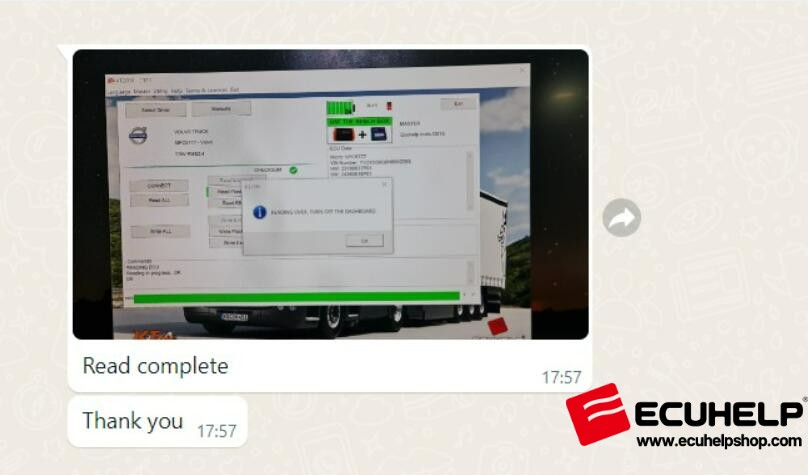

An increasing number of users are successfully using the KT200II ECU Programmer to read and write the Volvo TRW EMS 2.4 on bench.


Required Tools:
Cable DFB D48CBB04 – TRW EMS2.2/3/4
Bench Box V.2
Laboratory Power Supply or Battery

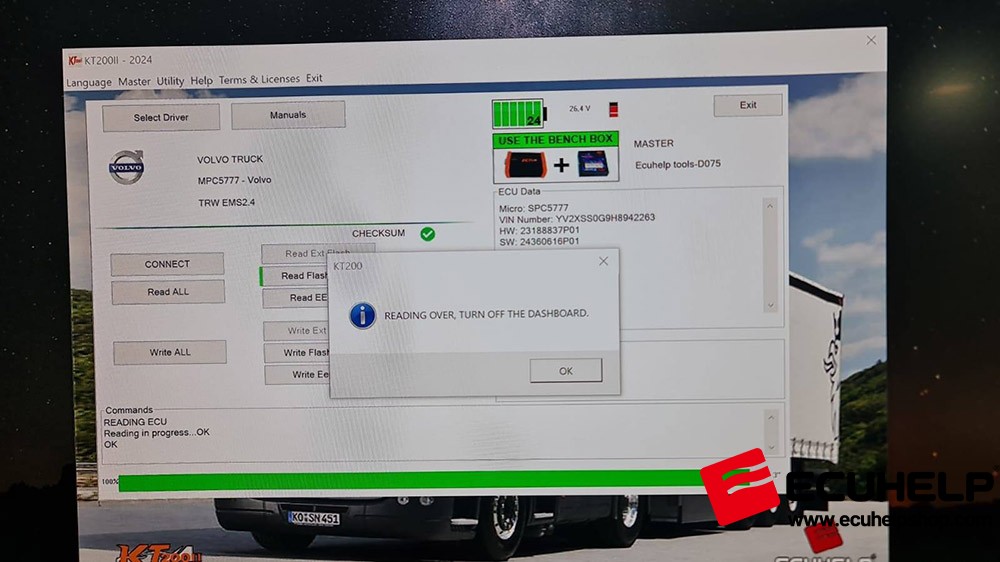

To read and write TRW EMS 2.4, use the following driver settings:
→ BENCH MODE
→ RENAULT TRUCK / VOLVO TRUCK
→ SPC5777 – [ brand ]
→ TRW EMS2.4

Alternative Connection (Without Cable DFB D48CBB04):
If the DFB D48CBB04 cable for TRW EMS 2.2/3/4 is unavailable, you can connect using the Multifunction Cable.

Required Tools:

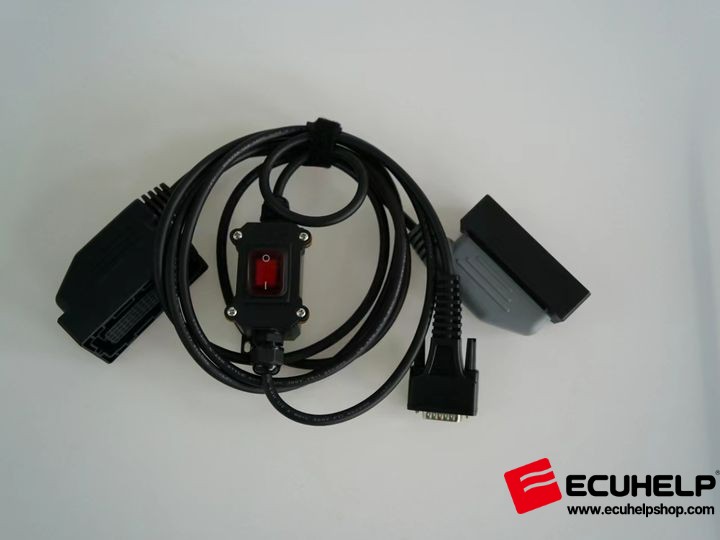

Multifunction Cable
Bench Box V.2
Laboratory Power Supply or Battery

For connection, refer to the pinout instructions. Then, use the same driver settings as above:
→ BENCH MODE
→ RENAULT TRUCK / VOLVO TRUCK
→ SPC5777 – [ brand ]
→ TRW EMS2.4

In Stock:
KT200 II Bench Mode Cable D48CBB04 for Volvo/Renault Trucks TRW EMS 2.2, TRW EMS 2.3, TRW EMS 2.4 available at:
KT200 Bench Mode Adapter for Volvo/Renault Trucks.
