Step-by-step guide on using ECUHELP KT200 to read Write VAG VW Audi Skoda Seat Bosch MED17.1.1 TC1796 /TC1797 on Bench and Boot Mode.

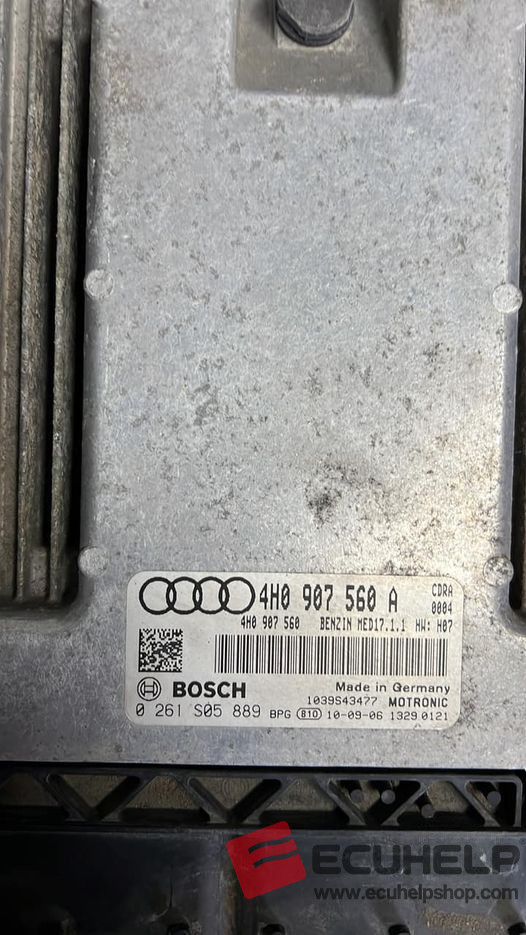

Look at VAG MED17.1.1 ECU:


Bench Mode:
BOSCH MED17.1.1 [ 1796 ]

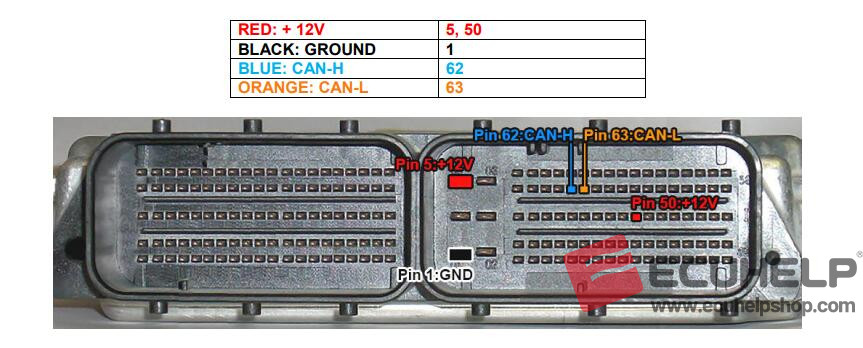

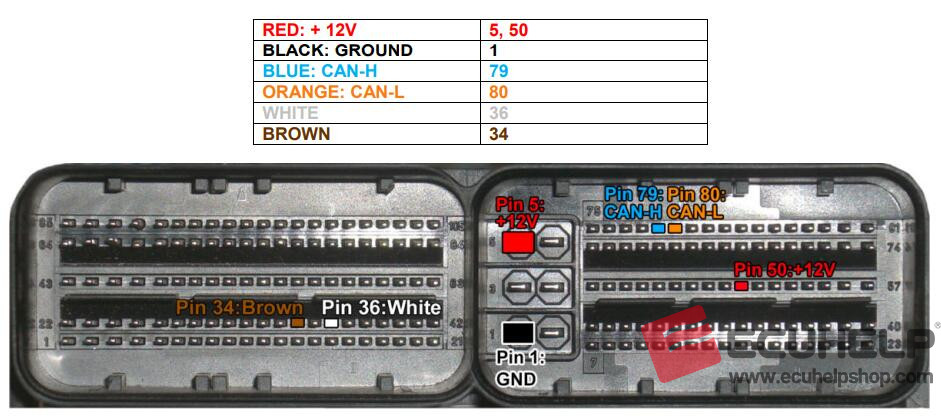

Connect the multifunction cable as follows:


To read and write use the following driver:
→ BENCH TRICORE
→ VW / AUDI / SEAT / SKODA
→ TC1796 – VAG
→ MED17.1.1

BOSCH MED17.1.1 [ 1797 ]

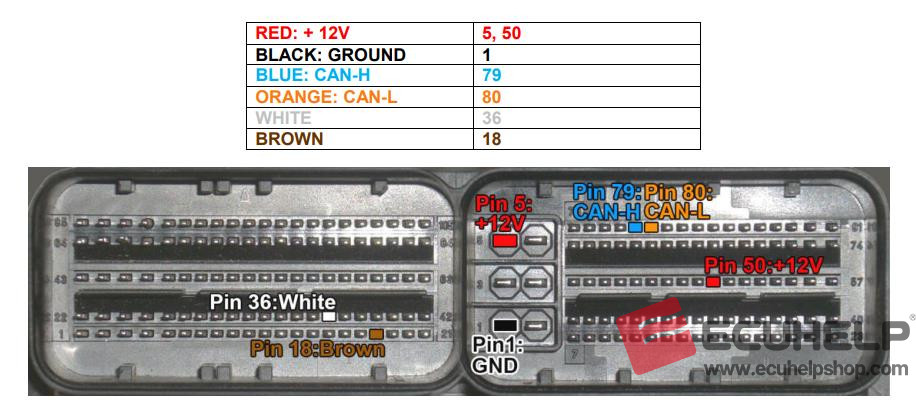

Connect the multifunction cable as follows:


To read and write use the following driver:
→ BENCH TRICORE
→ VOLKSWAGEN / AUDI / SEAT / SKODA
→ TC1797 - VAG
→ MED17.1.1

Attention:

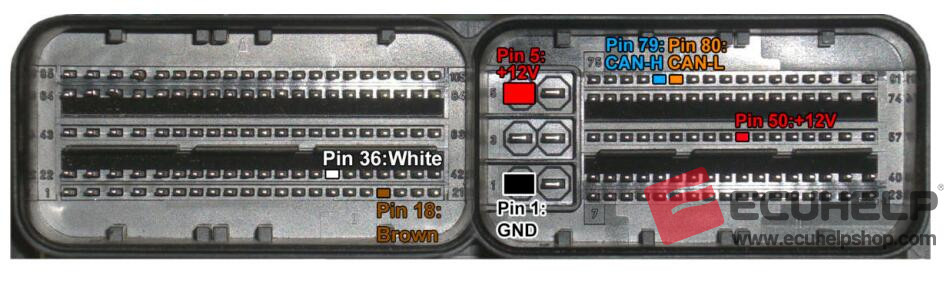

Some MED17.1.1 enter in Bench mode with the brown wire on Pin 18. If with the previous pinout doesn’t go in bench tricore mode, then try again by connecting it as follows:


Boot Mode:
BOSCH MED17.1.1 [ TC1796 INT.F.]
Kit to use:
- Multifunction cable

READ AND WRITE ECU

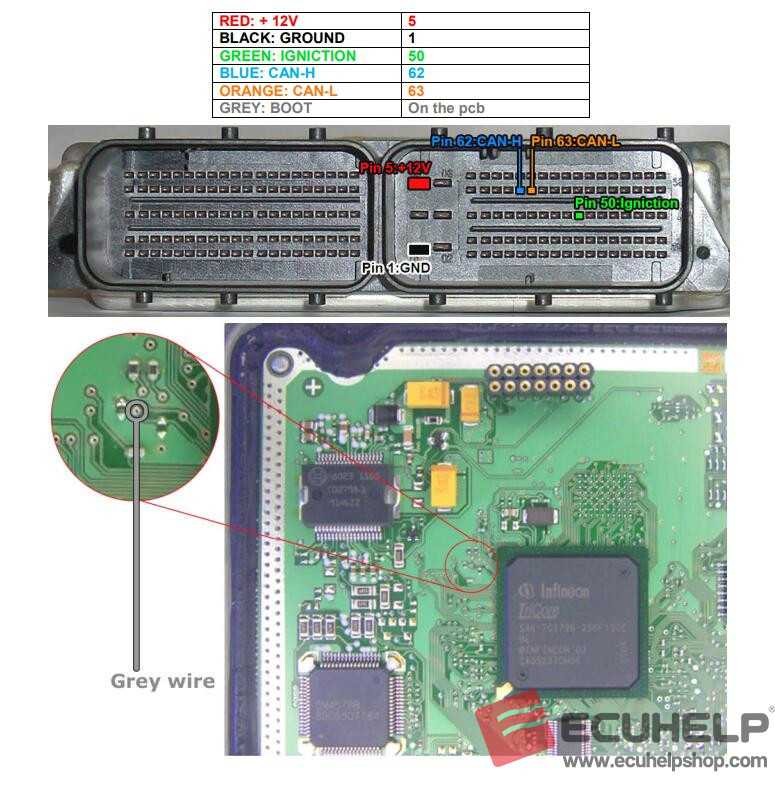

Connect with the multifunction cable the following pinout and the boot shown below.
Use the driver:
→ TOOLS BOOT MODE
→ INFINEON TRICORE Boot
→ SAK TC1796



ATTENTION:
If the password error message appears at the beginning of the reading, proceed as follows:

PASSWORD SEARCH:
Disable the boot mode by unsoldering the gray wire. Connect the pinout below. Use the driver: → TOOLS BOOT MODE → INFINEON TRICORE Tool Password → OBD PASSWORD TPROT V08 VAG → Click on “Find Password” and follow the software messages.


Now that the password has been found it’s possible to read and write the control unit as described in
STEP 1.

BOSCH MED17.1.1 [ TC1797 INT-.F.]
Kit to use:
- Multifunction cable

READ AND WRITE ECU

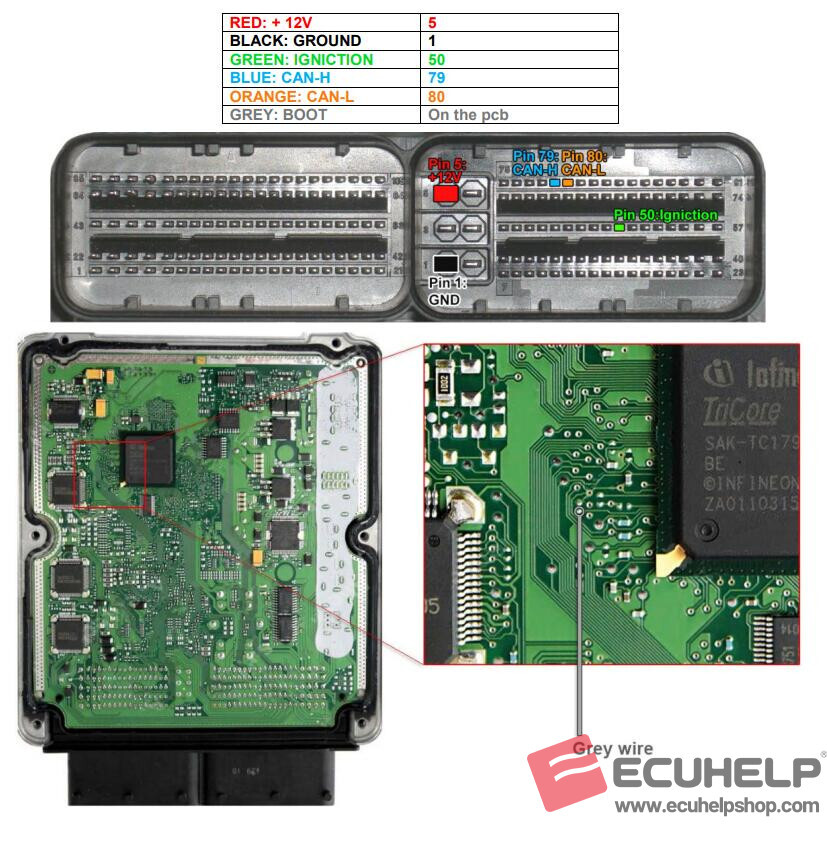

Connect with the multifunction cable the following pinout and the boot shown below.
Use the driver:
→ TOOLS BOOT MODE
→ INFINEON TRICORE Boot
→ SAK TC1797


ATTENTION:
If the password error message appears at the beginning of the reading, proceed as follows:

PASSWORD SEARCH

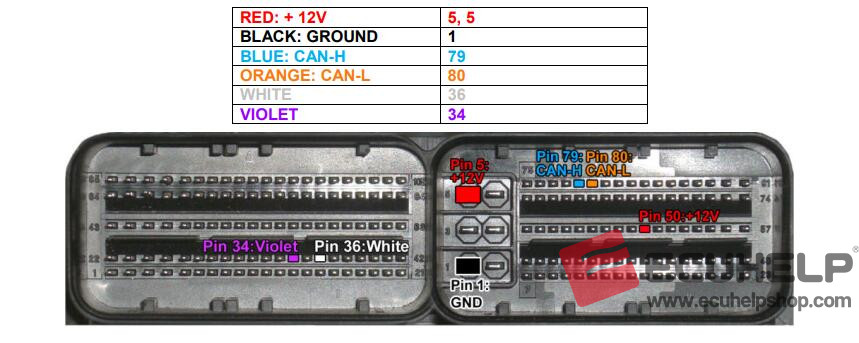

Connect the pinout below.
Use the driver:
→ TOOLS BOOT MODE
→ INFINEON TRICORE Tool Password
→ PASSWORD BFT
→ Click on “Find Password” and follow the software messages.

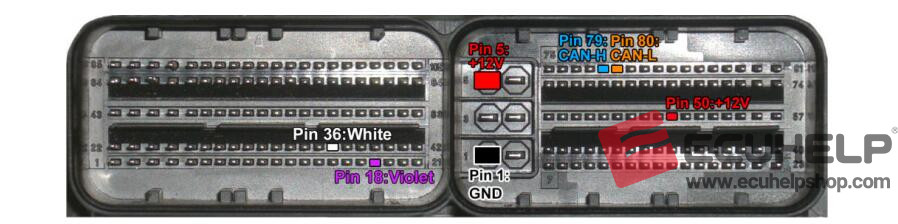

If the password was found with this system, go directly to the boot step to read and write the control unit. Otherwise, move the violet wire on pin 18 and restart the driver PASSWORD BFT:


Now that the password has been found it’s possible to read and write the control unit as described in STEP 1.

Job is done.
