ECUHELP KT200 ECU Programmer Reviews on what works.

I have kt200 Always win for me!

The wining point of kt it's the possibility to work offline.

Edc17c41 with HT Prog read/write ok Whidout powerbox.

Opel EDC17C42 Read Write Checksum ok
BMW EDC17CP02 Read Write Checksum ok
BMW EDC17C06 Read Write Checksum ok
Opel AC DELCO E98 Read Write Checksum ok
VAG DCM6.2V VR Write Checksum ok
VAG PCR2.1 Unlock VR Write Checksum ok

I use kt200 and for me its perfect tool so far, never had any problems  for chk I use kt300. For obd programming stable voltage over 13v and good amperage, bench always around 13.5v.

Mercedes sim4lke read ok, write not ok because of boot write lock, r\w by kess no problem

VW edc17cp20 bench r\w chck ok, also vr read and write chk obd ok.

Peugeot boxer 2020 dcm7 .1b r\w chk ok with KT200.

Audi TT 2016 simos18.1 r\w chk ok. Need many times to remove and give power to ecu manually but its safe 100%

Renault truck premium
Bosch ms6.3
Obd module but in bench mode ok,
Read ok, need to test it after battery booster pole reversal
Immo was busted
Now unsolder the 24c16 for immo off.

Bmw edc16c1 r\w chk ok bench.

Fiat sid803a bench r\w chk ok

Mercedes edc16c2 bench r\w chk ok

Mercedes edc17c66 bench r\w chk ok

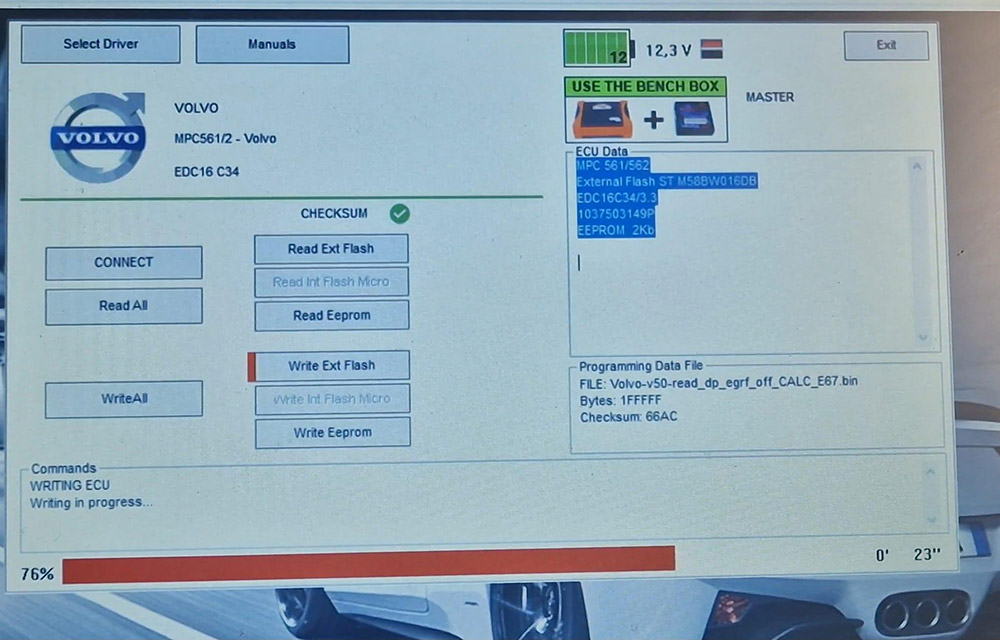

Volvo edc16c31 dpf+ egr+ flaps off. KT200 is a great tool.

Mazda 3, 2014, sid807evo, dpf off
Volvo edc17cp22 egr off

VW edc16u1 bench r\w chk ok with KT200.

Audi edc17cp14 r\w chk bench ok with KT200.

Audi edc17c46 r\w chk bench ok with KT200.

Peugeot 3008 hybrid, dcm3.5 'obd' r\w chk ok with KT200.

KT200 Volvo truck ems2.3 r\w bench ok, chk need to be done manually. Btw, Ems2.2 r\w chk by tool bench ok

Hyundai edc15c7 obd r\w ok, chk need to do manually.

Mercedes crd2 r/w chk via obd ok with KT200.

Bmw edc16cp35 bench r\w chk ok.

Peugeot Expert 2018 2.0 dcm6.2A R/W ok chk ok in OBD, 3 - 5minutes to write ok.

Ford sid208 obd r\w chk ok with KT200.

VW T5 ambulance, dpf off edc17cp20. r/w in full read with KT200.

Audi edc17c46 full clone with KT200 ECU Tool.

I did Ford Mondeo 1.6 2011. I read the full Flash and did the unlocking using OBD. KT200

2.2 hdi visteon DCU 102 peugeot boxer, R/W with KT200 Boot mode ok.

Dcm6.2v vag VR read safe with KT200，many test.


KT200 Read bench mode, VAG EDC17c74 2019, MB 2020 read ok

Maxity / Cabstar EDC17C45 bench r/w/cks ok with KT200.

scirocco 1.4tsi 160hp, med17.5.5 R/W boot ok cheksum ok


KT200 Kit: Read and write edc17cp02 BMW with HT Prog first gen ok.

Volvo truck EMS2.2 read OK full system mode with kt200.

Jeep EDC17 C69 bench read OK with KT200.

KT200 R/W MAN EDC17CV42  without problem at all, Checksums must be made by tool and give voltage 13.5 or 13.8.

Mazda Cx7 2009 2.2 denso r2ax R/W ok, chk ok via OBD

KT200 R/W edc16c Suzuki Grand Vitara 19 ddis on Bench ok.

Q: How does KT200 R/W ducato 2020r/21 mj9df?
A: HW 001 & 002 work ok via obd, but takes around 2 hours to read and 15 min to write.
If you want to do it faster i suggest to do via jtag, it is much safer. If it is hw003 remove SGW.


Q: For your KT200, which voltage do you typically give?
A1: It varies with the ECU. Usually, I start at 13 volts, though certain PCR2.1 require 13.5 volts, and there was one instance where I had to increase to 13.9 volts.
A2: On Bench mode, I apply 14.2 volts at 2 amps; for OBD mode, 60 amps at 13.5 volts ok.
It's crucial to know what ecu that start pump/fan and bench it insted.

Test on Citroën Sid803a on bench perfect with KT200.

KT200 R/W egs 52/53 Boot mode yes.

KT200 Kit:
Q: How to clone a MSD80 Ecu with KT200?
A: Clone with htprog to restore isn.

Q: What difference between kt200 & kt300?
A:kt300 is just a sw for checksum correction.

Q: i can't start KT200... when start any kind of reading i got message wait for internet connection and crashed. AV and firewall not exist at computer... all is ok but not work... some idea why not work?
A: ftp installation is missed ! After installation, it works.

Q: read ems 2.2 volvo trucks?
A: Yes no problem at all 25V bench chks by tool.

Ford Ranger 2015 2.2 sid208 R/Wok chk ok in OBD
while reading the ecu, the password is read and saved automatically.

2012 ford dcm3.5 is safe by obd with kt200

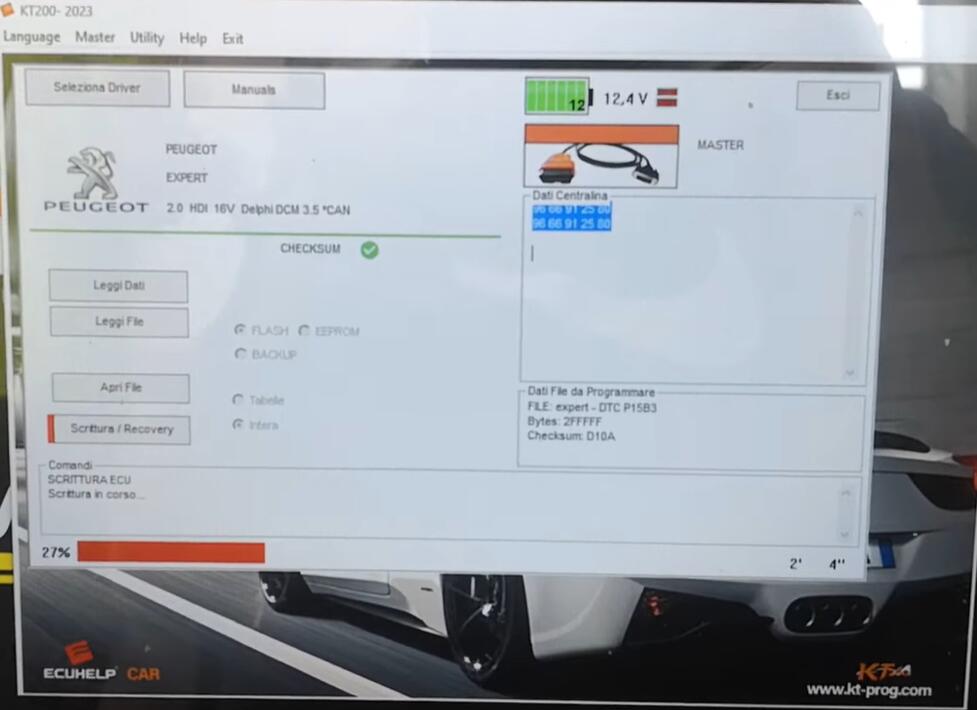

Peugeot Expert 2018 2.0 dcm6.2A, R/W ok, chk ok via OBD. 3 - 5minutes to write.

VAG EDC15P+  Full System OK with KT200.

For this money, KT200 is a good tool.

It can work what I paid.

Tested Edc16cp31 R/W on bench ok
obd edc16c34 psa R/W ok
edc17 bench 100% ok....
psa MD1CS003 R/W Ok.

I R/W two ecus with kt200, edc17cp48 volvo on bench (r-w-chk ok) and iaw 5nfs8 hw104 (r-w flash+e2p-chk ok)
important : for internet connection cant use apple iphone because have inside firewall that cannot be disabled and if you start the program with it you have always popup message about new update available...etc
for internet connection you can only use home/business connection via lan /wifi or android connection via usb cable/wifi....iphone via usb cable/wifi does not work

KT200 is better than the similar ECU Programmer, it has more more ecus supported and for me now work really fine .

KT200 is a great tool for the price ! I make a lot of md1cs003 psa cs006 Renault cp004 VAG.

KT200 is  a very good tool, no need to open ecu edc16 full in bench edc17 too, make bdm jtag ,VR read offline dongle in full kit, you can buy HT-prog too , this an additionnal tool who work with KT200 , with this you can cloned a lot of ecu, read CAS etc.
very happy to buy it.

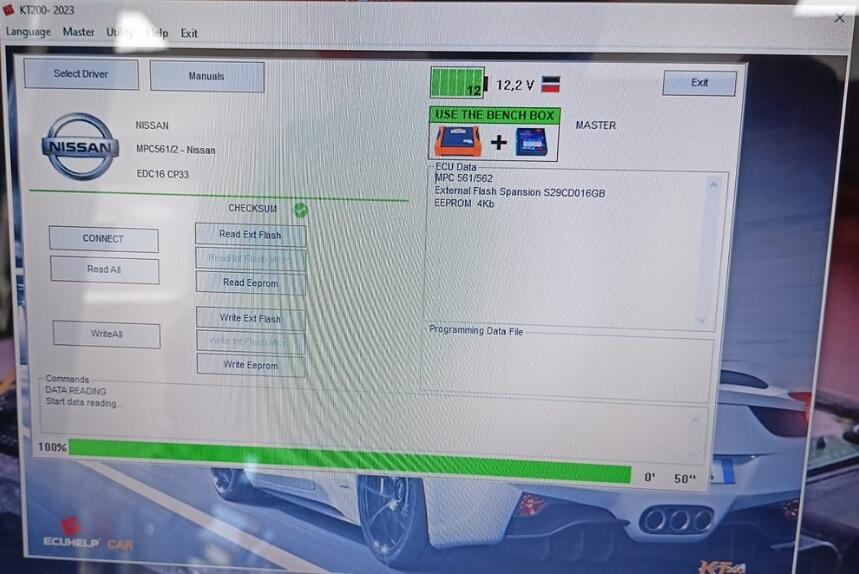

KT200 read edc16cp33 BDM mode yes.

KT200 read & write Audi temic VL300 ok

KT200 read & write Delco E98 100%.

It is safe to read/write ford delphi dcm3.5 by obd with kt200.

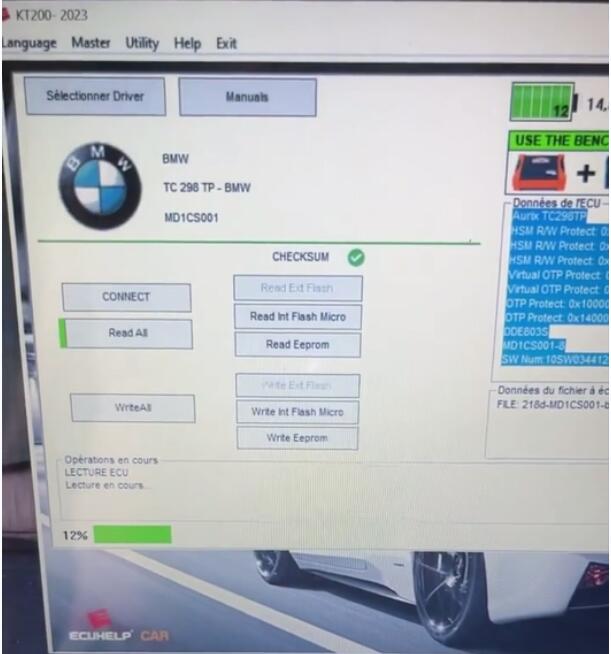

KT200 read/write MG1CS002 2017 no problem bench mode.

kt200 works offline, i used it to R/W over 250 ecu and never had a problem including md1 mg1 and construction machines.

Hello guys, just arrived KT200, delivered to Germany. Already OBD read and write Bosch M7.9.5 Flash and Eeprom.

KT200 arrived today, use it to read bench mode VAG EDC17c74 2019,MB 2020 read ok.

 I used KT200 1 year!!!Without problem. Working very fineJust need good internet

KT200 received works perfectly

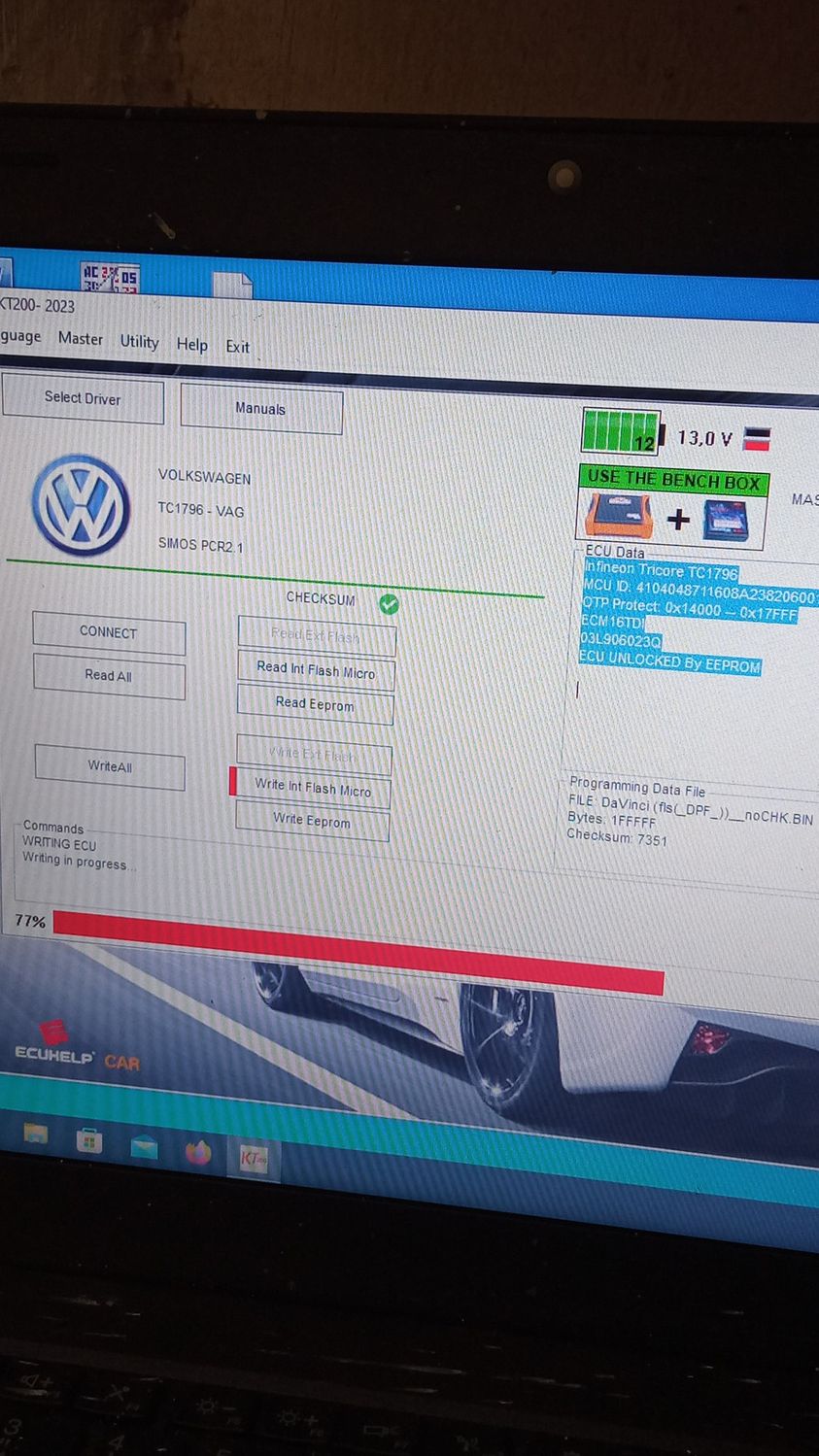

Bench unlock Pcr21, read and write on bench, checksum by tool ok.
bench read Edc17c84 renault, write checksum done by KT200 all ok.

Toyota yaris 1.4d4d Bench read and write ok, clone ecu ok.

edc16c1 R/W bench ok checksum by KT200
edc16c34 R/W bench ok checksum by KT200

kt200 kit: I read & write with succes Bosch edc17c59 Opel insignia with kt200 from htprog. Check internet conection and try with a 13.5V DC.

I've done EDC17C59 with KT200 NO problem. Check all wires.

Pcmtuner read & write EDC17C59 works good.

Q: Can I use KT200 clone old ecm (VW Bosch Benzin me17.5.5 2011-01-31?
A: yes 1.1 clone, need internet connection.Follow the instructions in the clone protocol for this ecu.

Mercedes ML350 CDI Bluetec
BOSCH EDC17CP46
R/W/CS OK

KT200 works ok with edc17c10, never had any problem

Q: Possible kt200 read and write ECU Bosch  MD1 Opel Corsa 2022?
A: there is no tool to read that ecu 2022, even flex or trasdata will not read it.

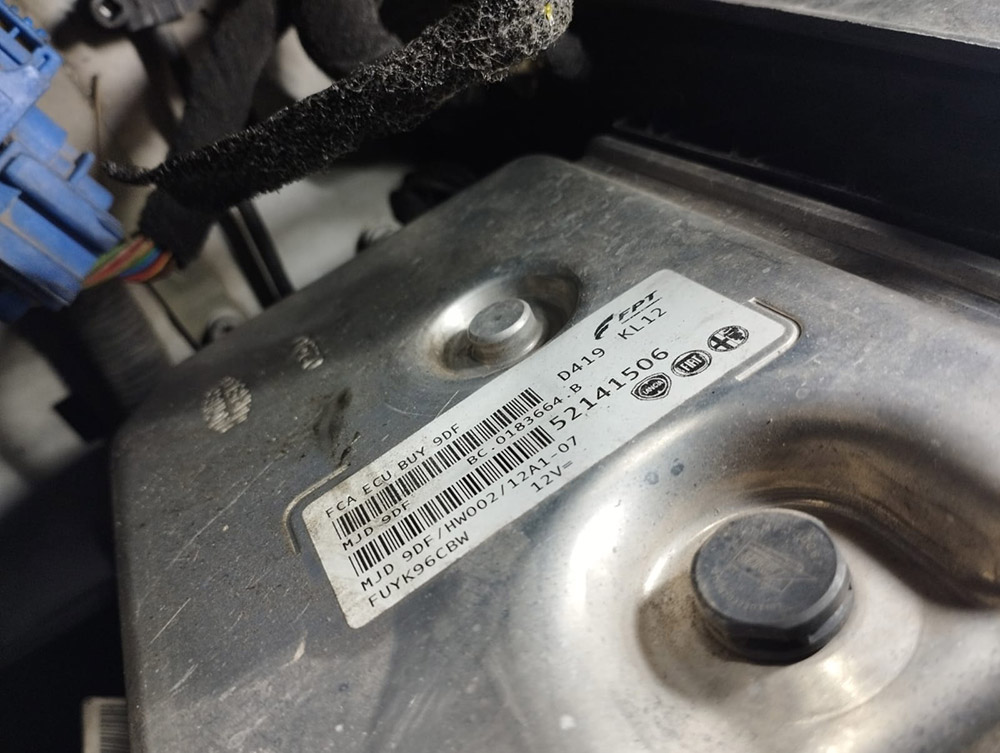

Q: How to use KT200 R/W ducato 2020r/21 mj9df?
A1: OBD read/write Ok (give battery charger)
A2: Obd with sgw Bypass but read about 3 hours or open ecu and jtag 20 mins read and 25mins write.
A3: Bench mode read in 90 minutes.

kt200 is working stable and you can work offline with it.

Testet KT200 on Audi Q7 EDC17CP24, Bench read/write/checksum all ok.

R/W Marelli MJD 8DS ok,checksum ok.

R/W Mg1cs001 2017 audi a4 b9 2.0 tfsi on Bench ok no problem, checksum with tool ok (with KT300 ok too).

kt200 read and write sid 310 Renault boot mode works ok.

I would recommend KT200 from ecuhelp. Or the new kess v2 clone from car-prog

Q: Have you tested ecu simos 18 Volkswagen Golf VII Gti 220hp?
A: Yes, it's going smoothly. I have already done this calculator in boot mode and in Obd

Question: I purchased a KT200 today, and I have a few concerns. I've heard from a friend who used it in the past that the KT200 ecu breaks down and bricks it.
Is there a risk of damaging the ECU while using the KT200? Should I always consult with the ECU photo with ecuhelp before each use? Can experienced users provide some guidance?
Answer 1: There's always a potential risk of bricking any ECU, regardless of the device, even with genuine programmers. This is why I advise newcomers to be cautious. Avoid start like crazy and test on customer car that need daily.
Answer 2: Indeed, any tool or even unintentional actions, like static electricity from one's fingers, can damage an ECU. It's always best to handle with care and gather ample knowledge before proceeding.


Q: kt200 can unlock pcr2.1 by obd? or need bench/boot?
A: Yes you can unlocked by obd but flash and eeprom only in bench/boot
guide on KT200 PCR2.1 read password, Boot read ecu and unlock eeprom: https://www.ecuhelpshop.com/product-technical/kt200-pcr2.1-read-password-read-ecu-unlock-eeprom.html

Q: Hi, my kt200 has arrived. Where can I download software and should I use the tool original power adapter  in the box or use another power adapter? Some people say you should use no switch mode adapter, pls help.
A: the original power adapter is enough for most ecus BUT in some ecus more voltage is required, like 13.5-14v then you have to use a power source.
And download software here: Download here: https://www.ecuhelpshop.com/pages/downloads/.

Question: I've just received my KT200. Where can I download the required software? Also, should I use the original power adapter provided in the box, or use another power adapter?
I've heard Some people say you should use no switch mode adapter. Can you advise?
Answer: For the KT200 software, you can download it directly from: https://www.ecuhelpshop.com/pages/downloads/.
Regarding the power adapter, the original one provided should enough for most ECUs. However, if you encounter ECUs that demand higher voltages, like 13.5-14v, you'll need to use a different power source.

KT200 R/W Renault edc17c84 good on bench.

Q： I have a problem with my KT200 offline, when I try to connect to the ECU the software turns off.If I work online, they don't turn off. Any solution
A: Install ftp in installed kt200 offline and will not close.

Ford C-Max 2.0tdci 136hp.
Siemens SID803
R/W OBD OK
CS not testet.
Dpf, egr off.


KT200 is more stable

For me kt200 works very well and Im satisfied

Peugeot 508
Dcm3.4
OBD ok
Lecture ok
Checksum no ask
writing ok

Q: It's possible read and write edc17c50 bmw F10?
A1: with bench and with 13,5V no problem..
Read Erite Chekcsum, everything OK.
When write make manual chks and don't let tool chks
A2. R/W over 50 on bench with 12.4v no problem at all, also R/W 5 by boot mode.
A3. I read and write many edc17c50 , no problem !

Q: KT200 R/W renault / volvo truck ems2?
A: Yes without problem cks by tool, it works 5 star.

Q: It's possible read and write edc17c50
Bmw F10
A: bench mode works like a charm

Q: Dcm 6.2v vw read beanch safe?
A: I've done a few via OBD with KT200, all good.

Mazda Cx5 from 2015 ecu denso reading writing ok via obd.

KT200 Read and Write Honda 2.2 edc17 cp16 Bench mode no problem.

KT200 Read and Write DAF LF55 Paccar Delphi ETC3 E6 no problem, 20min write

Mercedes benz vito 2016 116cdi 163hp, edc17c66, KT200 can read and write it on Bench very good.

Fiat Punto 1.3 2007 mjd6f3, KT200 R/W it ok  chk ok in OBD.

KT200 Read and Write EDC17CP15,  bench mode and boot mode possible

KT200 Read and Write JCB delphi dcm 3.3 via obd no problem.

KT200 can't read and write Fiat MD1CS068 TC299 TP - FCA (year 2022-06-08), the ECU is too new.

PARTNER PEUGEOT 17C10, KT200 R/W it on Bench ok, Checksum done by KT200, Off FAP EGR ok
OBD not worked.

I read and write few edc17c46 by kt200 without any issues.

KT200 R/W SID807evo boot mode OK

R/W OPEL Astra PSG16 kline via OBD  OK egr off ( mpps obd can only )

R/W MB EDC16CP31 on BENCH OK

I use KT200 to R/W Bosch MED17.7.7 TC1793 without problem on bench.

VW Golf 7 1.6TDI Delphi DCM6.2V
VR read OK
Write OK (takes about 15mins)
12.8V battery voltage

Mercedes Benz ML280 Bosch EDC16CP31
read/write via OBD OK (I recommend disconnecting the fan connector, as the fans activate when you begin writing, causing a significant voltage drop. This could damage the ECU if the voltage gets too low).

Read/write EDC16U31/34 via OBD OK

Audi A5 Sportback 2.0TDI
Bosch EDC17CP14
OBD VR Read / Write, checksum- all OK

Audi A4 2.0TDI
Bosch EDC17C46
read / write on Bench - ok

KT200 did sid807evo from psa with tc1797, read in boot mode (via obd is not possible to read) and write, also checksum by the tool.

I bought mine KT200 from ecuhelp along with htprog
Htprog came with the tricore cable and powerful adapter.. tested edc16 and edc17 working well with bench power supply
Bdm port and jtag are also working
Tested mjd8df...mj9df...edc16 bdm.....dcm3.7ap sh72544

I personally do not use KT200 for Tricore on the bench, i use KTM Bench without any issues. But for some other thing what not support KESS or MPPS via obd or KTAG in BOOT mode i use KT200. And it work just fine. Yesterday i am work Full system on Ducato 2017/2018 MJD 9DF without SGW via obd connector read/write eeprom and flash just fine.

I have tested on Skoda_1.6tdi_2015_DCM6.2V, OBD reading like VR file for 6 sec, writing is about 20 minutes, CHK OK !

I have bought from ecuhelp Europe, KT200 offline, works good,

Q: Is it safe for KT200 to read and write the BMW E91 EDC17CP02 via OBD?
A: It's more reliable on the Bench. bench no problem tested it whith obd just to see it worked no problem, for reading and writing, ensure you have 13v. Also, have driver seetbelt on so ignition don't turn off.


Q: Has anyone successfully worked with Ford DCM 6.1 via OBD or BDM?
A: OBD read and write yes.


Q: Can dcm6.2v be read and written safely?
A: Absolutely, OBD mode with KT200 and checksum with KT200.


Q: Has any KT200 user attempted edc17c10 via OBD?
A: I recommend using bench mode; it’s sure working.

ECUHelp provides 3 servers, offline accessibility, and with the integration of htprog, there are added protocols, cases, frm counters, and more.

I have not had any problems with mine KT200.

In my experince kt200 have more success.

KT200 doesn't control over you. Moreover, KT200 has a dedicated server for VR files.

Read EDC17C42 Renault Bench mode no problem.

KT200's boot mode works excellently with sid 305, supporting both reading and writing of eeprom/flash.

KT200 is available with 3 servers, offline access, and web browsing capabilities, KT200 does not require a serial number/registration every time it's used.

kt200 read edc15vm+ audi in full mode work fine

ECUHELP KT200 unlock pcr2.1 by obd / Bench Tips and Solution

Q: is it safe to read and write Sid307 Mercedes obd with Kt200?
A: Kt200 is safe to read and write Sid307 Renault via obd yes, Mercedes Benz No.

Q: Delphi DCM3.4 Read and write possible with KT200 via OBD?
A: Yes obd flash no problem.

Q: Any advice/experience for Scania Continental EMS S8  ?
Can be done through OBD ? is it safe... ?
A: OBD VR read and write with kt200, works tested.

Q: kt200 corrects the checksum for an EDC17CP14? 2009 Audi A4 B8 3L
Perfect reading!
A: Yes kt200 do It. I do It many times in this ecu

I read write two edc16u34 mpc562 on bench , cks by tool no problem ( kt200 ecuhelp)

Q: Astra J 2017 1.7 it's safty obd2 read and write using kt200 ?
A: on Bench please.

EDC17 C70 Bench read and write yes with KT200.

Q: Problem writing edc17c10 PSA stop at 79 %, I write on Bench.
A: Please open the ECU to write, instead of Bench mode.

Q: Can KT200 read and write the sid305 nissan quashqai?
A: Yes, via OBD.

Q: Md1cs003 possible with kt 200?
A：2019/2020 max. ie. 2018 year Bench work good.

Mercedes Benz Delphi CRD3.10 yes read and write via obd or on Bench.

Read and write Edc16c34 on Bench.

KT200 Read and Write Mercedes Benz Delphi CRD2.16 via OBD.

KT200 is possible to clone Xsara Picaso 2001 EDC15C2.

kt200 read and write Mercedes crd1.1 ok.

Ecd16u34 VW read and write without problem  checksum ok.Some u34 not possible r/w in bench mode - with any tool.
Just go obd or bdm.

KT200 Read and write Mercedes CRD1.1 only BDM mode.

Q: Possible KT200 read and write dcm3.7 via obd?
A: Yes, connect a starter battery charger 13v+.
Read and write egr off ok
Write 13mins.

Q: Possible KT200 read and write Bosch MED17.4 (07-08-07)?
A: yes.

Q: Is KT200 possible to read and write DCM3.4?
A: Yes, OBD read and write no problem.

Q: Can KT200 read and write CRD3P.C0?
A: Bench 100% yes.
Only did cheksum by winols! Othewise your will brick your ecu. And use a stable power supply 13.5v 3amp.

KT200 works on BMW EDC16 C1. HONDA EDC17 C58. VAGMG1CS001, AUD SH7055 and SAK TC1738 without any issue

BMW EDC16 C1 MPC555/6- in bench mode
HONDA EDC17 C58 TC1793- in bench mode
VAG MG1CS001 SPC5777- in bench mode
AUD SH7055-in BDM/JTAG mode
SAK TC1738 - in BOOT mode

edc16c35 Boot Mode via KT200, works perfectly, I am very happy.

I have make over 100 cars with kt200 and never have problem.

Q: 8F3 MM Fiat , KT200 can read Eeprom via OBD or just flash?
A: Eeprom and flash obd with full system mode can read/write.

Q: Kt200 i have problem with edc16 on bench
Indentyfikation Ok. But. Cant  read flash or Eprom
Any solutions?
A: Open KT200 device, inside you will find 1 jumper, just change its position. ow to chang the Jumper position, here: https://www.ecuhelpshop.com/product-technical/do-you-know-ecuhelp-kt200-jumper.html

Q: Is safe to read and writte ecu edc17c06 BMW X1 by obd?
A: Tport off checksum fix and 13-14v power and write is safe. Anyway, always bench a new ecu when you never had this ecu before .if you have backup you can flash obd.
See enough in AT Group and Kess bricking ecu by VR writing and have to get an New ecu or immo off an other ecu ...
Bmw all are good to remove only bmw 2er and M models ecus are on fucking places.

Q: SCANIA R450 2018r, is it working via obd ? Read/write/cks ???
A: Yes vr file safe read write

Q: Does anyone help me activate kt200 offline wostation not ecuhelp
A: sorry, no.

Question: Does KTM200/ecutuner/foxflash belong to kt200?
Answer: No, KT200 is made by ecuhelp which has good quality, compatible with offline dongle, does not require activation.

Iveco edc7uc31 read and write good

Q: Is KT200 possible to read Citroen Bosch MD1CS003 2021-10-14?
A： 2022.... not even with original tools. the higher manufacture date to June 2020. There is no solution, even for other programming devices.

Audi sq5 2015 mg1cs002
Audi rs6  2019 mg1cs008
DID SOME READ AND WRITE IT WITH KT200

Ford mondeo
Dcm 6.1  dtc oki

kt200 read edc15vm+ audi in full mode work fine

KT200 read and write dcm3.4 Peugeot 307 via obd2 is good.

KT200 read and write HYUNDAI SH72546 Denso MB275700-57xx.

KT200 read and write MARELLI MJD 8F FIAT in Jtag Mode.

Read and write Peugeot MD1CS003  before 2020 on Bench yes.

kt200 can read Delphi DCM 7.24

KT200 read/write VAG delphi 6.2 OK.

Ford Kuga 2.0 tdci  ECU: DELPHI DCM 3.5 R/W OBD, very good, it's perfect obd.

Read EDC17 CP14 VW Golf 6 Usa on Bench mode.

edc15c2 psa work on Bench Without opening ECU. and Checksum manual.

Renault master 3 2020 sid310 via OBD yes.

DSG DQ200 by PINOUT Connection yes with KT200.

Czech Republic
Slovenia
Romania
Algeria
Lithuania
Croatia (local name: Hrvatska)
Turkey
Kuwait

Nissan X-Trail 2006 2.2 denso rf7 R/W ok in full system mode.
Subaru Forester 2.0 2011 denso R/W ok in OBD

Volvo XC90 2009 2.4 Bosch edc16c31 R/W ok in bench

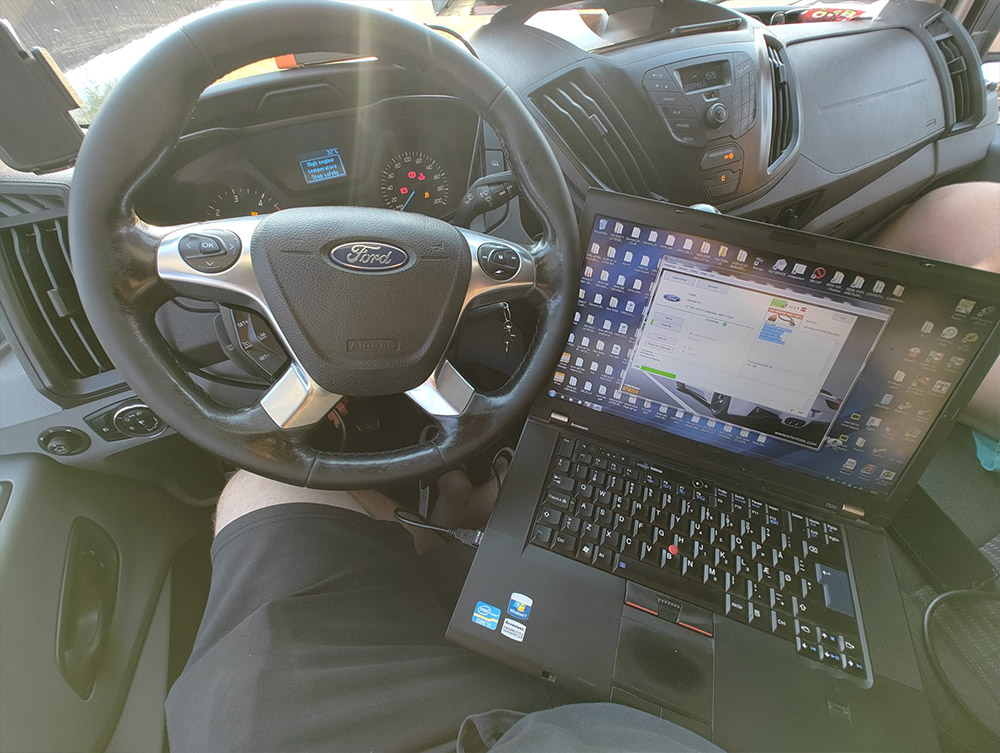

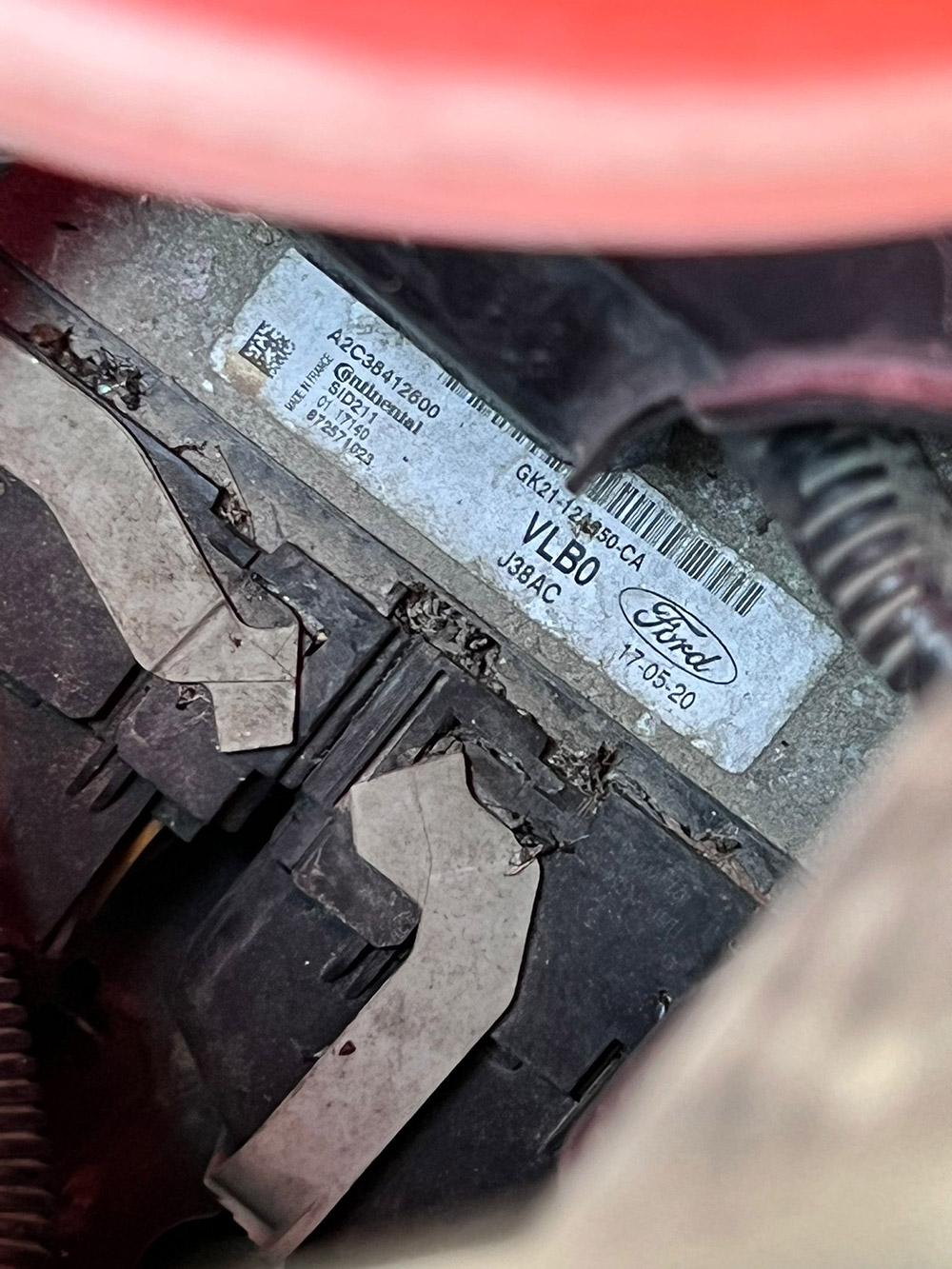

Ford Transit 2016 sid208 R/W ok in OBD.

KT200 read/write Mercedes Sprinter DELPHI CRD3P.B0 on bench ok.

Ford Transit 2016 sid208 R/W ok in OBD

Peugeot partner edc17c60 read/write and save password good on Bench, But for clone better other tools.

Delphi DCM3.2AP read/write in BDM mode.

Delphi DCM6.2A PSA Calculator in Boot, R&W Flash + Eeprom without any issues.     There is silicone covering the boot point (CNF1) just scratch a little.

Used KT200 r/w truck on Bench fast and safe, possible to read ecu bosch edc7 c31.

KT200 R/W MD1 no problem
Md1cs006 renault bench r/w
md1cs003 psa bench r/w ok
R/w MD1CS001 BMW 218D ok.
Mercedes MD1CP001 Read ok Write ok Checksum manually
MERCEDES MD1CP001 / MRD1 BENCH R/W
Renault md1cs bench ok
MD1CS100 BENCH
MAN 2022 MD1CE100 on Bench Read / Write OK, Chks. Auto.
md1cs016 Bench work.
MD1006 bench r/w perfect

kt200 read and write perfect on sid307,Read password via OBD, and read file on boot.

Benz W205 2018 year
CRD3P.D1 Boot mode
Read/Write OK
Read 10min,write 25-30 min.
kess read 50min

Edc15c2 3 plus full system r/w without resistance
Edc16c3 bench r/w
Edc16c34 bench r/w
Edc16c9 bench r/w
Edc16c39 bench r/w
Edc17c10 bench r/w
Edc17c60 bench r/w
Edc17c41 bmw bench r/w
Edc17c42 renault bench r/w
Edc17c50 bmw bench r/w
Edc17c06 bmw bench r/w
Edc17cp02 bmw bench r/w
Sid801 to 806 full system r/w
Sid803a fiat full system r/w
Delco E98 full system r/w
6f3 8f2 8f3 full system r/w
Dcm 3.5 obd r/w
Dcm6.2 psa obd r/w
Md1cs006 renault bench r/w
Md1cs003 psa r/w
Delco e98 opel insignia  2016 2.0 cdti 170ps Bench ok
Peugeot  expert 2017 2.0 hdi
Delphin dcm6.2 obd ok
Psa edc16c34 R/W ok obd
Ford Delphi DCM 3.5 R/W ok obd
Psa Sid 803A R/W ok full system
Opel edc16c39 R/W ok bench mode

Merc Vito 2.2 EDC16+ OBD R/W ok

Edc15p+, Flash + eeprom OK.. for write eeprom need 13.5v otherwise error.
Edc17c50 bmw bench ok
Me7.0 Volvo full system Ok

Peugeot partner edc17c60 read/write and save password good on Bench, But for clone better other tools.

Delphi DCM3.2AP read/write in BDM mode.

Delphi DCM6.2A PSA Calculator in Boot, R&W Flash + Eeprom without any issues.    There is silicone covering the boot point (CNF1) just scratch a little.

Used KT200 r/w truck on Bench fast and safe, possible to read ecu bosch edc7 c31.

BMW EDC17CP02 OBD and Bench
BMW EDC17C06 OBD and Bench
BMW EDC17C41 Bench
BMW EDC17C76 Bench
BMW EDC16 All ok Bench and OBD
Mercedes EDC17CP46 Bench
Mercedes EDC16CP31 Bench
PSA EDC17C60 Bench
PSA EDC16C34 OBD
PSA EDC17C10 Bench
PSA DCM3.5 OBD
GM EDC16C39 OBD
GM EDC16C9 VR OBD
GM Delco E39A OBD
GM Delco E98 OBD -  *common to fail*
VAG EDC16U1 OBD
VAG EDC16U31 OBD
VAG EDC16CP OBD
VAG DCM6.2 OBD
VAG EDC17CP20 Bench
VAG SImos 8.x OBD
Ford EDC16C34 OBD
Ford EDC17C10 Bench
Ford DCM3.5 OBD
These are all that I have tested all checksum ok

Crd2 obd ok read 10minutes ,write 20
ford transit 2014 sid211 ok, chks ok, obd no problem. 15 min write time.
Edc16u31 R/W perfect bench
EDC17CP14 R/W perfect obd/bench
Pcr2.1 r/w perfect and unlock perfect bench
Simos 3 r/w bench perfect
Edc16u1 r/w perfect bench
Edc17c59 r/w perfect
Med9.1 bench ok
Med 17.5.1 bench ok
Me 7.9.10 OBD bench ok
Me7.5 bench failed
Edc16c39 bench ok
Dcm3.7 Vw obd ok
MD1006 bench r/w perfect
DSG DQ250 r/w perfect
CRD3.7 R/W perfect
Sid211 OBD ok
Crd3xx odb bench ok
edc17c79 and c74 and medc17.9 and edc17cp14 ok

KT200 is possible to read and write via OBD the Simos 18.1 without problem.

Try KT200 to read/write Continental Simos7.1 in boot mode working.

EDC16C2 OBD & Bench ok.

KT200 read/write CRD2.xx on mercedes c by obd yes.

KT200 is possible to read/write edc16c3 from Renault Laguna 2005 on Bench or obd.

KT200 read/write Crd3.xx Mercedes e class 2015 on bench.
EDC17C60 Bench working perfect.

KT200 read/write Delco e78 bench yes.

KT200 read/write Delphi DCM7.1A via boot  perfect work nothing problem.

Dcm7.1b work.

Audi A7 3.0 tdi EDC17CP44 read yes, Writing not check sum , checking manual by other software.

Valeo v42 obd yes.

Mercedes sim266 read/write ok j-tag, Checksum manual with Winols or Lsuite.

kt200 read marelli iaw 4av in boot.

kt200 read and write sid208 by OBD, first read obd password after that boot r/w.

Edc17c46 vw read and write ok, dpf by davincci all is good.

KT200 read /write Delphi DCM7.1A in Boot mode.

I use ECUHELP KT200 with no problem. must know how to use it.

For me kt200 is one the best china tool.

For me, KT200 pays itself fast.

KT200 is already paid from a few jobs.

Excellent service file know what you do it and get money back After 5-6 Successful Jobs!

I'm do file service. I use KT200 daily, and it has been a reliable tool, all working never have problem. Whether it's boot mode, bench mode, or OBD, KT200 performs flawlessly.

Md1Cs003 psa works good on bench.

KT200 Read/Write 807evo by boot safe.obd is not work by boot is safe and work.

I'm tested reading/writing sid305 via OBD 100% working with ECUHELP KT200
first read password by following the instruction.

sid807evo - boot ok
sid803a - bench ok
sid305 - obd ok first password

pcr2.1 is good, sometimes dont have vr need update by vcp or any tools. pcr2.1 on 99% cars have lock screw, some car have lock screw need cuting to take out. what you write audi a1 have lock ecu need cut, some golf as wells.
pcr 2.1 is very easy by obd.

md1cs016 Bench work.


Audi q7 edc16cp34 bench ok.

Edc17cp44 works on bench perfect.
Pcmflash work On bench, OBD also, but kt200 is more stable.

Mpc563 bench write ok.

KT200 R/W BMW Bosch MEVD17.2.5 on Bench perfect and safe.

KT200 Read/Write Benz Delphi CRD2.16 on Bench or via OBD yes, for full backup need just boot.

KT200 Read/Write EDC17CP44 on Bench OK.

KT200 Read/Write Nissan Qashqai SID310 yes via OBD, first read password by obd after that use boot mode to read/Write ecu.

 KT200 read/write Benz edc17cp01 ok.

KT200 Dcm6.2v vag chks ok.

KT200 R/W BMW Bosch MEVD17.2.5 on Bench perfect and safe.

Read/Write SID305 via OBD 100% working with KT200 ECU Programmer

KT200 read write Fiat MJD8F

KT200 R/W Man TGX 18.440 E5 EDC7C32 Perfect

PSA dcm6.2C Boot
Ford Sid209 boot
Toyota Denso 76F00 most Obd ( if have VR)
VAG Edc17cp14, cp20, cp44, c64, c74 obd tested
Honda edc17c10 bench
Opel Zafira psg16 obd
Opel edc16c39 bench
MB edc17cp01, cp10, cp57 all bench
BMW EDC17CP02 OBD and Bench
BMW EDC17C06 OBD and Bench
BMW EDC17C41 Bench
BMW EDC17C76 Bench
BMW EDC16 All ok Bench and OBD

Mercedes EDC17CP46 Bench
Mercedes EDC16CP31 Bench

PSA EDC17C60 Bench
PSA EDC16C34 OBD
PSA EDC17C10 Bench
PSA DCM3.5 OBD

GM EDC16C39 OBD
GM EDC16C9 VR OBD
GM Delco E39A OBD
GM Delco E98 OBD -  common to fail

VAG EDC16U1 OBD
VAG EDC16U31 OBD
VAG EDC16CP OBD
VAG DCM6.2 OBD
VAG EDC17CP20 Bench
VAG SImos 8.x OBD

Ford EDC16C34 OBD
Ford EDC17C10 Bench
Ford DCM3.5 OBD
these are all that I have tested all checksum ok

BOSCH EDC15C6 - MERCEDES - OBD - Reading & Writing
BOSCH EDC17C60 - PSA - BOOT - Reading & Writing
DENSO 23710 - NISSAN - BENCH - Reading & Writing
BOSCH MD1CS003 - PSA - BENCH - Reading & Writing
MARELLI IAW5NF. T9 - FIAT - OBD - Reading & writing
BOSCH EDC17C10 - PSA - BENCH - Reading & Writing
BOSCH EDC16C34 - PSA - BENCH - Reading & Writing
DELPHI CRD3.30 - MERCEDES - BOOT - Reading & Writing
SIEMENS SID807 EVO - PSA - BOOT - Reading & Writing
BOSCH EDC16CP33 - RENAULT- BENCH - Reading & Writing
SIMOS PCR2.1 - VOLKSWAGEN - BOOT - Reading & Writing
DELPHI DCM3.5 - PSA - OBD - Reading & Writing
BOSCH EDC17CP37 - TOYOTA - BOOT - Reading & Writing
BOSCH EDC17C49 - MITSUBISHI - BENCH - Reading & Writing
BOSCH EDC16CP39 - PSA - BENCH - Reading & Writing
BOSCH EDC16C32 - MERCEDES - OBD - Reading & Writing
DELPHI DCM6.2A - PSA - OBD - Reading & Writing
SIEMENS SID803A - FIAT - OBD - Reading & Writing
BOSCH ME7.4.4 - PSA - OBD - Reading & Writing
BOSCH EDC15C2 - PSA - BOOT - Reading & Writing
BOSCH EDC16C3 - PSA - BENCH - Reading & Writing
BOSCH EDC16C39 - HYUNDAI - BENCH - Reading & Writing
DENSO SH12 - MAZDA - OBD - Reading & Writing
BOSCH EDC17CP04 - AUDI - BENCH - Reading & Writing
BOSCH EDC16CP35 - BMW - BENCH - Reading & Writing
BOSCH MEV17.4.2 - PSA - BOOT - Reading & Writing
SIEMENS SID208 - FORD - BOOT - Reading & Writing
CONTINENTAL EMS3110 - RENAULT - BOOT - Reading & Writing
BOSCHEDC17C42 - RENAULT - OBD - Reading & Writing
BOSCH EDC16U31 - AUDI - BENCH - Reading & Writing
For every calculator listed above the checksum has been calculated by the tool and I have never had a worry.

Edc17c10 Edc17c46 c54 c64 c74 c84 c79 cp14
Medc17.9
R/w ok

Simos 1.6 tdi vw unlocked eprom ok
R/w.flach bench mood ok


Windows 7/64 or Windows 10 /11 is better.

DCM 7.1A boot mode.
Read / write ok
Adblue off
Checksum ok by KT200.

KT200 R/W MB edc17c66 yes.

KT200 R/W MD1 no problem.

KT200 Read/ Write MEDC17.9 Range Rover,bench mode work fine.

Blocked edc17c60 calculator with obd bitbox
Problem fixed with full backup kt200
Adbleu fap off
kt200 automatic checksum correction ok

Opel Mokka 1.6 cdti
Delco E98 read/write bench
Checksum ok by KT200




Dcm 3.5 in pinout...
KT200 Read and write OK


kt200 read edc17c46 vag on Bench easy.

I tested KT200 an Iveco EDC17C49 on bench and immo off using the KT200.

KT200 read and write Mercedes Temic ECUs.

KT200 r/w EDC 7UC31 without any issues.

KT200 read/write MCM, ACM, Iveco Euro 5 and 6, all on Bench no problem.

Read/Write Edc17C60 PSA with KT200 on Bench mode without any problem,Cheksum by tool ok too.

Sid 807 Ford read/write with KT200 Yes, in boot mode or in Pinout mode.

Read/Write ecu delco E98 with KT200 yes.

ecuhelp kt200 read/write MD1CS001 BMW 218D ok.
Ecu cover is open because there is gazoline into


kt200 read write ford ranger sid209 ok, first read obd password, then remove ecu and read/write in boot mode. Reading was 2 mins, writing is 15-17 mins.

edc16cp33 nissan 2,0dci on bench , KT200 read/write/checksum work good, or in boot mode works.


Audi a4 b8 2.0 143hp van from 2007/7 VR File, kt200 read/write edc17cp14 via OBD yes, but it is more safety on bench.

Renault V42 CAN, ECUHELP KT200 read/write it on Bench mode is no option, either no OBD options, only Jtag/Boot option.

KT200 can read/write eeprom&flash for Valeo j34p Peugeot 207 via OBD.

Edc17c10 Ford Focus 1.6 2013 R/W/chk ok via OBD. If battery low connect Stabilizer or do it on bench,charger makes voltage mini variations, connect the orange cable.

Mercedes edc 17c57/60 works good on Bench mode.

KT200 R/W Delphi dcm 3.5 Ford Kuga via OBD.

ECUHELP KT200 R/W Hyundai Kia Delphi MT86 in Boot Mode.

ECUHELP KT200 read and write sid305 nissan Renault master dci is 2.3,via OBD. you have to read password first.

KT200 R/W edc17c60 PSA ECU, you need to make clone on internal flash because of tproot, it is something different, it has otp.
If is wrong, will not letting eto write flash, so it will not damage the ECU.

Pcmtuner can read and write sid305 Nissan Renault,Pcmtuner can read without password.

KT200 read/write VW Delphi DCM6.2V ok.
Virtual Read and Write. You should download from server on line ..once downloaded you edit and write.

KT200 read/write DCM3.7 VAG, video to follow: https://youtu.be/kaz1grLcwUY.

KT200 read/write Sid 305 is 100% working.

KT200 R/W Hyundai Kia Delphi MT86 in Boot Mode.

For newer Japanese models i use ecuhelp kt200, never had problem.
Did Mazda cx5 2.2d 2015 2 weeks ago.

KT200 Read/Write MB CRD3 / CRD3P.A0 /CRD3P.D1  like a charm.
read/write Crd2 via obd, read/write crd3 on bench.

KT200 Read/Write Man Truck edc7c32 OK.

KT200 Read/Write Edc17CV42 Man Truck on Bench.

KT200 Read/Write edc17cp11 jaguar xf on Bench OK.

KT200 read/write Ford Transit Sid211 via obd ok.


KT200 read/write 9df Hw001 via OBD / or on Bench, but a little bit long time reading.

KT200 read/write 8f3 easy.

Q: sid 212 ad 2018 ford s max, anybody knows if I can read it?
A: Sid212 is not possible by any tools, Flex have beta. Sid212 is only beta not in kt200.

Q:  Does kt200 read/write 9df hw002 Ducato 2021 on bench?
A: No on Bench, only in boot mode.


Transit Sid 211, KT200 R/W OBD good. Chks by KT200 tool.
It takes 13mins -20mins to write.


KT200 read/write Mitsubishi asx Denso 4N13 on Bench ok.

KT200 is tested ok reading/writing Ems 2.2 / 2.3 trw on Volvo truck, Ems 2.2 checksum by KT200 tool,Ems 2.3 no.

Q: Possible KT200 read psa sid807evo？
A: Yes it's possible...read/write psa sid807evo on boot mode.

Q: How the kt200 works has its own software in case you want to block codes or is it paid.
A: It has its own software after paying the hardware.

Q: How does KT200 read/write SID 310 Renault?
A: I did mercedes SID310 and read password firstly via obd.

Q: Anyone read/write denso 76F00xx  with ECUHELP KT200?
Toyota avensis 2.2l D-4D 177hp?
Looks like VR from ecu list.
A: if VR not on server then only option is Jtag nec.

Q: DCM3.2ap in ssyang Yong rexton. KT200 How to read? only obd? or bench?
A: yes, only merc DCM3.2 can be reading/writting in jtag.

Q: I need to read / write VW Golf V 1.4mpi me 7.5.10, i must read and write in full system? and normally write?
A: yes kt200 works fine.

Opel E98 Full system bench
Read/write ok
KT200 is working fine.


Volvo v60 2012 EDC17CP48 R/W on Bench ️
KT200 works great.


KT200 can read/write DCM6.2A and DCM6.2C. I did it a few Times. Works Like a Charm.......

Edc17c42 Clio 1.5 dci made by obd
Edc17c84 Clio 1.5 dci made by bench
Bosch Me 7.6.2 Opel Corsa C 1.2 twinport made by bench
Edc17c60 Citroen c4 bluehdi 120 made by bench. (First time tprot checksum by tool and second time only manual tprot off)

MEV17.4 PSA Peugeot 308 on Bench read and write OK, Tool checksum OK.

MAN 2022 MD1CE100 on Bench Read / Write OK, Chks. Auto.

edc16u1 VAG group
Bench read eeprom
Bench write eeprom
Checksum auto

Bosch edc17cp02
Bench read
Bench write
Auto checksum

BMW EDC16C35 BENCH FULL BACKUP CLONE - SUCCESS
PSA EDC16C34 BENCH FULL BACKUP CLONE - SUCCESS

Citroen C4
EDC17C60
TC1793 Bench
R/W/CS/TPROT - all ok

VAG EDC17C74 BENCH R/W
- MITSUBISHI EDC16U31 BENCH R/W
- MERCEDES MD1CP001 / MRD1 BENCH R/W
- VAG Delphi DCM 6.2V OBD VR / W

pcr2.1 wave
1.6tdi polo
reading ok
Writing ok
Unlock epprom ok
Stage1 fap off ok
Make sure you have a very good internet network otherwise a lot of trouble for the patch

edc16c39 Iveco
Daily 2.3jtd
Kt200 ok
Reading ok
Writing ok
Immo off ok

edc16cp33 nissan
Almost 2l dci
Reading
Writing ok
Kt200 ok
Cks ok

MEV17.2 bmw / mini
1.6 petrol
Kt200 ok
Reading ok
Writing ok
Cks ok
Ethanol e85 ok

ME7.4.4 psa Citroën
1.4 essence
Kt200 ok
Lecture ok
Écriture
Cks par lsuite ok
Ethanol e85 ok

edc17c60 dog
208 1.6hdi
Ktag
Reading
Writing ok
Adblue off stage 1 ok

sid806 psa Citroen
C2 1.4hdi
kt200 ok
Reading ok
Writing ok
Cks ok
Immo off in the flash ok

edc17c60 psa
3008 1.6 hdi
Ecu bench tool
Lecture ok
Écriture ok
Tprot auto ok
Adblue off ok

edc16u31 wave
Golf 5 1,9tdi
Kt200
Obd ok
Reading ok
Writing ok
Stage 1 ok

edc16u34 drop off
Golf 5 1,9tdi
Kt200 ok
Reading ok
Writing ok
Cks ok
Egr off and stage 1 ok

edc17c84 renault
Espace 5 1,6dci
kt200 ok
Lecture ok
Écriture ok
Cks ok
Adblue off ok

edc16c34 dogs
308 1.6hdi
Reading ok
Writing ok
Kt200 ok
Fap off ok

crd3.10 Mercedes
C220
Kt200 ok
Reading ok
Writing ok
Cks ok
Stage 1 ok

Sim32
Clio 2 petrol
Ktag
Reading ok
Writing ok
Ethanol e85 ok

sid305
Scenic 3 1.5 dci
Ktag
Reading ok
Writing ok
Cks ok
Fap off ok

-scania ems s8 open ecu
-scania ems s6 open ecu
-mjd6 obd
-edc17c46 bench and obd
-edc16c39 bench
-edc16c34 bench and obd
-mevd 17.2.2 bench
-dcm 6.2 obd
-me 9.2 bdm
-med 9.1 bench
-simtec 81 all system
not work
-dcm 3.3 obd
-med17.5 obd
-a lot of denso obd

psa edc17c60 bench ok
psa md1cs003 bench ok
opel edc17c59 bench ok
audi siemens ppd1.2 obd ok
psa edc17c10 bench ok
psa sid803a bench ok
renault clio ems3132 bench ok
psa mev17.4 bench ok
what not ok tcu gearbox citroen c4 picasso c300p , nor citroen c2 gearbox tcu. No connection.
Renault md1cs bench ok

BMW EDC17C50 OBD
PSA EDC17C10 OBD
MD1CS100 BENCH
VAG EDC17CP44 OBD
VAG EDC17CP14 OBD
MERCEDES EDC16CP31 OBD
OPEL DELCO E98 OBD
LAND ROVER EDC17CP42 OBD
RENAUT EDC17CP42 OBD

seat panda 4×4 laruso becnh mode ok

Toyota Corolla Verso 2.2dti 2006
read on bench K-line ori 1 min
write 30min

EDC16C32 MB R/W OBD ok
iaw 5sf9 R/W OBD ok
EDC17CP14 OBD and Bench OK

tested dcm 7.1a psa impossible to connect and read..

tcu audi multi 6 speed v30 does not read 7 speed VL300 does not read the claim of the wiring edc 16 u31 ok edc 16u3u ok edc17cp14 ok

Vag pcr 2.1 ……….

………..Locked ecu obd2 work………….
Virtual read/write ok.

Renault sid 307 obd2 work ……..
Pasworld read ok .
Read / write map ok .

sid 307 second option bdm ( only after get passworld )
Bdm full read/write ok.

bosh m1.5 read bench mode ok , 4 minutes for read paswoord

vag edc16u1 obd ok
psa edc15c2 3 connectors bench ok (eep and fls)
psa edc15c2 1 connector bench ok (eep and fls)
Edc16c39 fiat obd – all ok

volvo EDC17CP48 on the bench without problem with KT200

TCU VL300 Audi A4 – cloned

Fiat panda
Magneti Marelli 9GF
Obd – all ok

edc17c50 x3 f25 2l xdrive D
Read
Write ok
Cks ok
Stage 1 ok

edc16cp33 nissan
Read
Write
Fap and stage 1 ok
CKs

Crd3.10 classe c220cdi
Read
Write
Stage1
Cks

edc16c39 iveco
Read
Write ok
Cks
Immo off

Read unlock and write Simos PCR2.1 all fine

Read and write ok bench mode edc17c46 Vw

Marelli 6f3 using kt200
Read ok
Write ok

Mercedes MD1CP001
Read ok
Write ok
Checksum manually

EDC17CP20 VAG
VR Read/ Write via OBD
Stag 1 + EGR OFF
Checksumme on KT200
